Honda Pilot: 12 Volt Battery Component Location Index
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Component Location Index Info / 12 Volt Battery Component Location Index

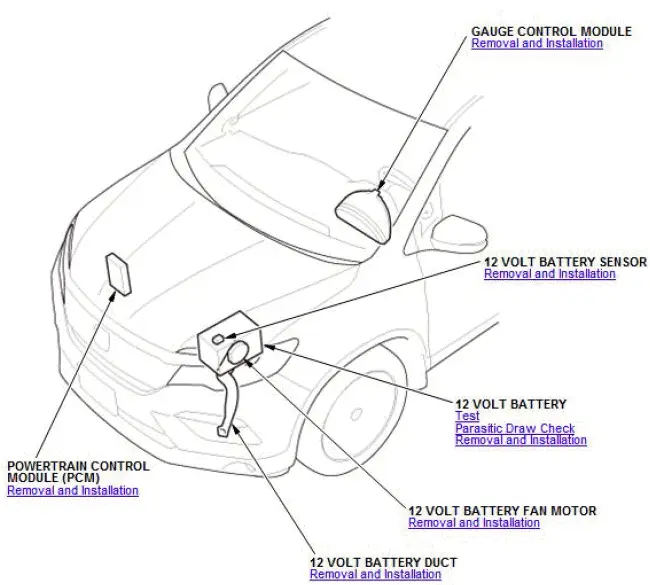

- GAUGE CONTROL MODULE
- 12 VOLT BATTERY SENSOR
- 12 VOLT BATTERY
- 12 VOLT BATTERY FAN MOTOR
- 12 VOLT BATTERY DUCT
- POWERTRAIN CONTROL MODULE (PCM)

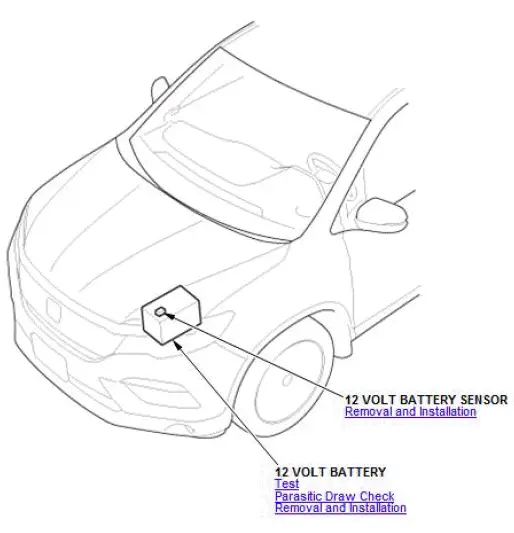

12 Volt Battery Management System Component Location Index
- 12 VOLT BATTERY SENSOR
- 12 VOLT BATTERY

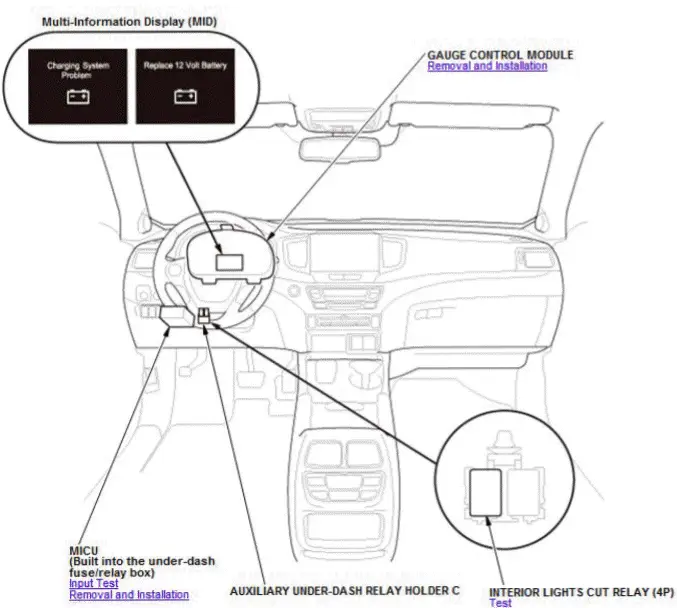

- Multi-Information Display (MID)
- GAUGE CONTROL MODULE
- MICU (Built into the under-dash fuse/relay box)
- AUXILIARY UNDER-DASH RELAY HOLDER C
- INTERIOR LIGHTS CUT RELAY (4P)

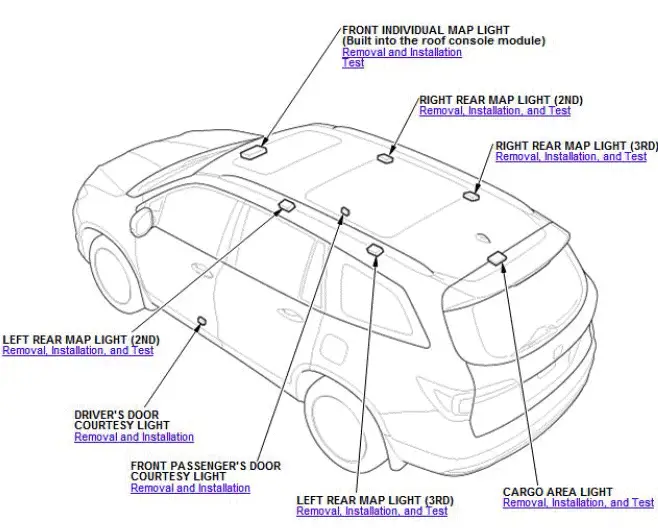

With panoramic glass roof
- FRONT INDIVIDUAL MAP LIGHT (Built in to the roof console module)
- RIGHT REAR MAP LIGHT (2ND)
- RIGHT REAR MAP LIGHT (3RD)
- CARGO AREA LIGHT
- LEFT REAR MAP LIGHT (3RD)
- FRONT PASSENGER'S COURTESY LIGHT
- DRIVER'S DOOR COURTESY LIGHT
- LEFT REAR MAP LIGHT (2ND)

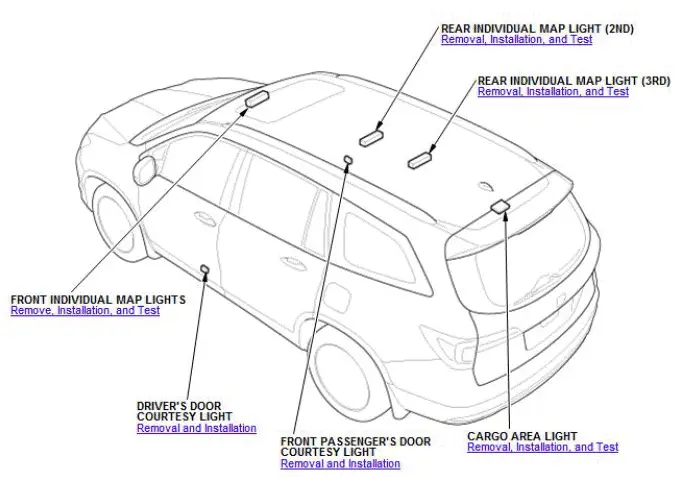

Without panoramic glass roof
- FRONT INDIVIDUAL MAP LIGHTS
- DRIVER'S DOOR COURTESY LIGHT
- FRONT PASSENGER'S DOOR COURTESY LIGHT
- CARGO AREA LIGHT
- REAR INDIVIDUAL MAP LIGHTS (2ND)
- REAR INDIVIDUAL MAP LIGHTS (3RD)

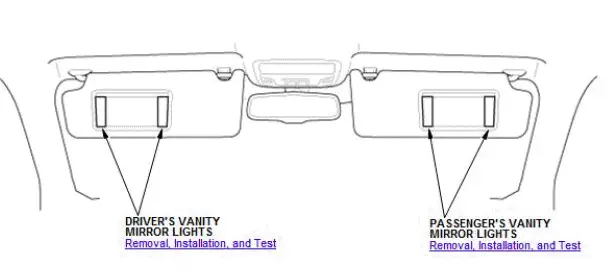

- DRIVER'S VANITY MIRROR LIGHTS
- PASSENGER'S VANITY MIRROR LIGHTS
