Honda Pilot: AC Power Outlet Component Location Index

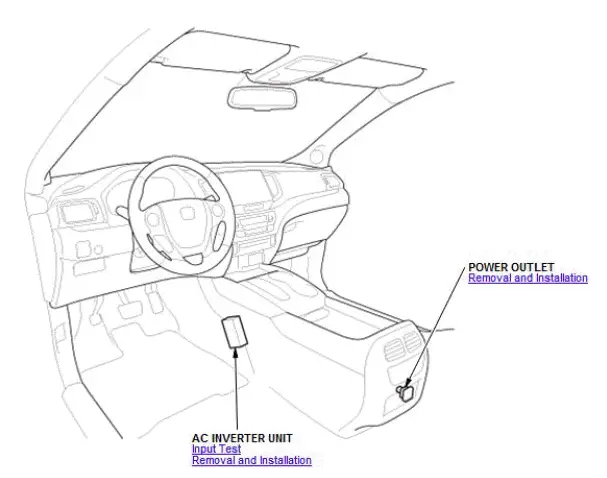

• POWER OUTLET
• A/C INVERTER UNIT

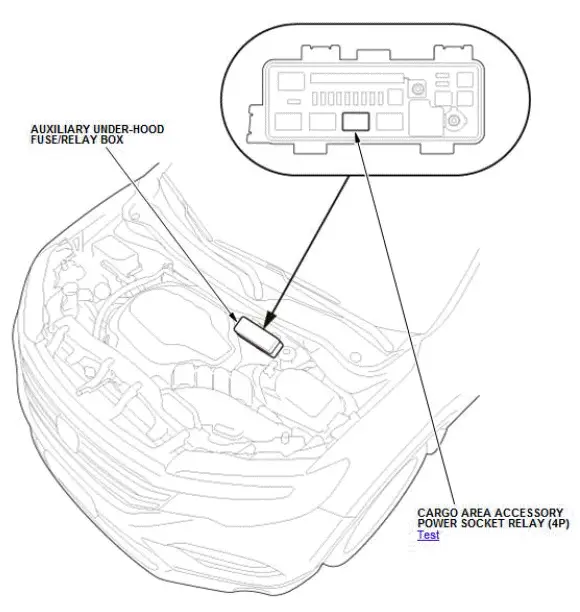

• AUXILIARY UNDER-HOOD FUSE/RELAY BOX
• CARGO AREA ACCESSORY POWER SOCKET RELAY (4P)

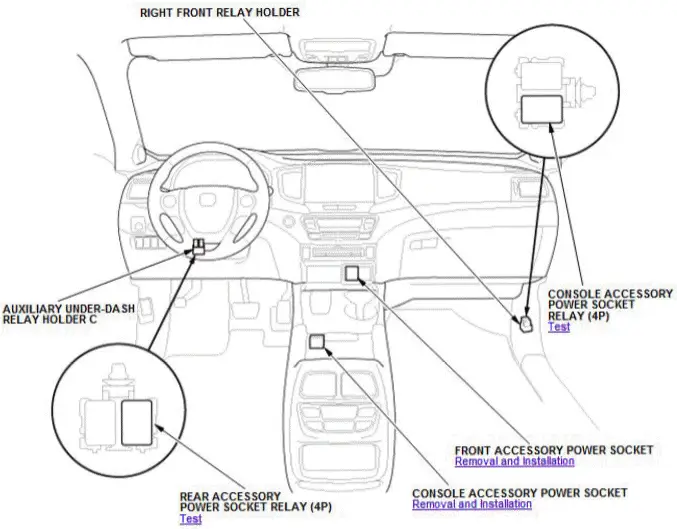

• RIGHT FRONT RELAY HOLDER
• AUXILIARY UNDER-DASH RELAY HOLDER C
• REAR ACCESSORY POWER SOCKET RELAY (4P)
• CONSOLE ACCESSORY POWER SOCKET
• FRONT ACCESSORY POWER SOCKET RELAY
• CONSOLE ACCESSORY POWER SOCKET RELAY (4P)

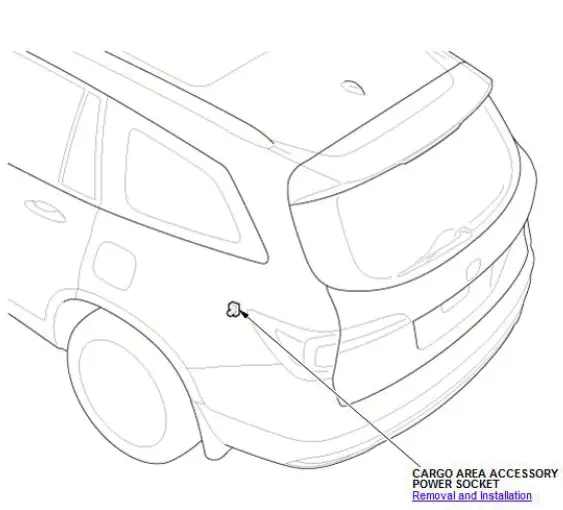

• CARGO AREA ACCESSORY POWER SOCKET

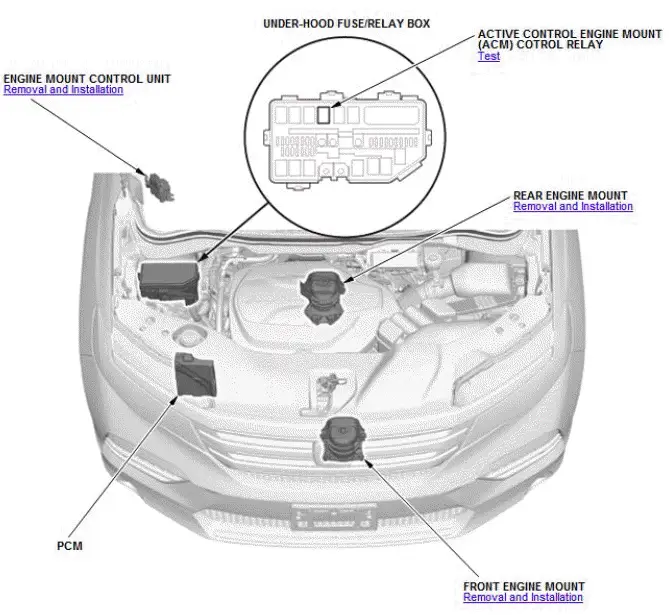

Active Control Engine Mount (ACM) System Component Location Index

• ENGINE MOUNT CONTROL UNIT
• PCM
• FRONT ENGINE MOUNT
• REAL ENGINE MOUNT
• ACTIVE CONTROL ENGINE MOUNT (ACM) COTROL RELAY
