Honda Pilot: Air Cleaner Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Air Cleaner Removal and Installation

Removal/Installation

1. Front Bulkhead Cover - Remove

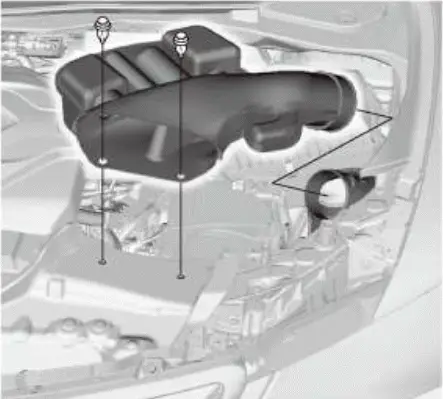

2. Air Intake Tube - Remove

Honda Pilot. Remove, Install, Replace, Check info

3. Intake Air Duct - (Air Cleaner Side) - Disconnect

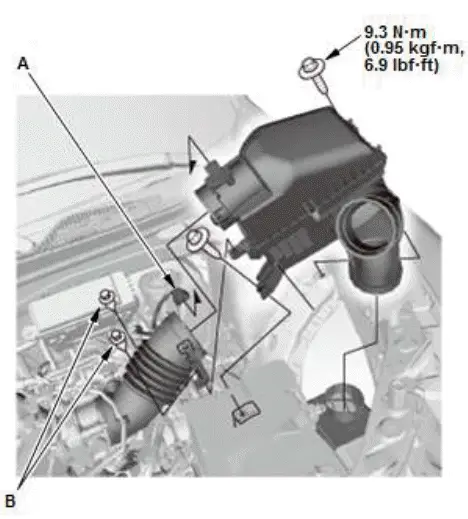

4. Air Cleaner - Remove

Honda Pilot. Remove, Install, Replace, Check info

  1. Disconnect the connector (A).
  2. Remove the clips (B).
  3. Remove the air cleaner.

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
