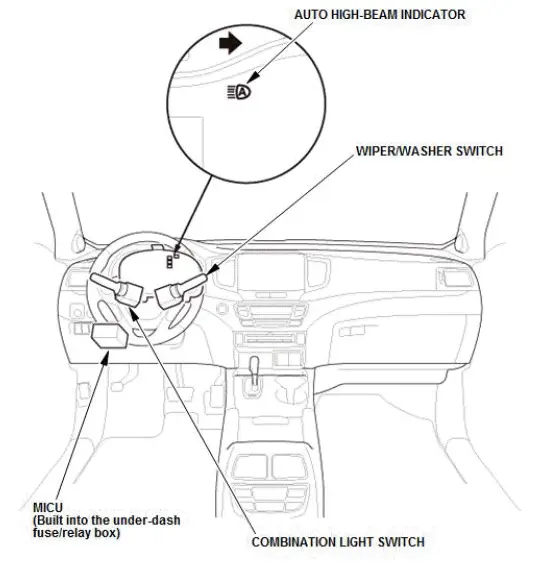

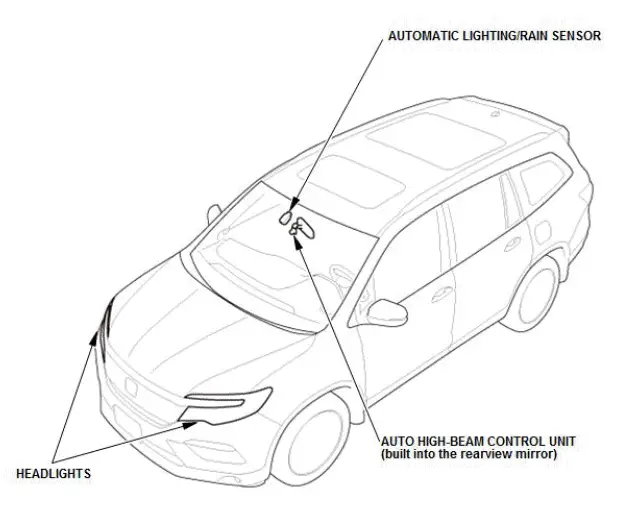

Honda Pilot: Auto High-Beam (High-Beam Support System) Description - Overview
The auto high-beam operates to switch the high beam and low beam automatically depending on the road condition of vehicles running ahead and oncoming vehicles, using the C-MOS * camera mounted in the rearview mirror.
*C-MOS (Complementary Metal Oxide Semiconductor): Electrical charge storage in each pixel is converted to voltage and then amplified for the output.

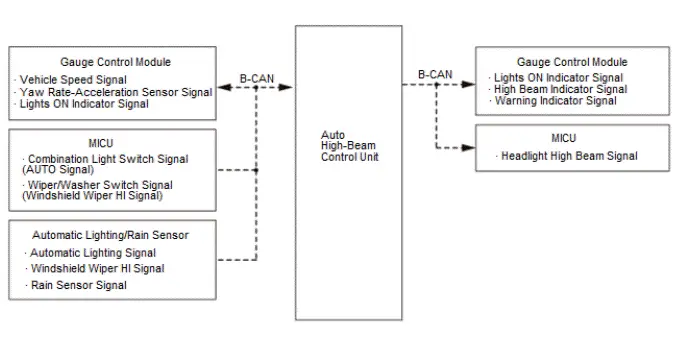

Auto High-Beam (High-Beam Support System) Description - System Diagram
Auto Idle Stop System Description - Operation Conditions
Auto Idle Stop System Operation Conditions
Disable Conditions for Auto Idle Stop
When any of the following conditions are met, auto idle stop is disabled.
NOTE: Check the DTCs of all systems before doing the inspection of the auto idle stop.
| Idle Stop Disable Conditions | HDS | AUTO IDLE STOP INDICATOR (amber) | ||
| Item | Conditions | Parameter | Menu | |
| Intelligent Traction Management Switch (AWD) | Any mode is selected.
(Except NORMAL mode) |
― | ― | ― |
| SNOW Switch (2WD) | SNOW mode is ON. | ― | ― | ― |
| Idle Stop Off Switch | Idle stop off switch is ON. | IDLE STOP INHIBIT (IDLE STOP CANCEL SWITCH) | PGM FI | ON |
| Hood | Hood is open. (Security hood switch is OFF) | IDLE STOP INHIBIT (HOOD OPEN) | PGM FI | ― |
| Driver's Seat Belt Buckle Switch | Driver seat belt is not latched. | IDLE STOP INHIBIT (SEAT BELT UNFASTENED) | PGM FI | ― |
| Steering Wheel | Steering wheel is operated. | IDLE STOP INHIBIT (EPS UNIT) | PGM FI | ― |
| Vehicle Speed |
*: Does not exceed 9.3 mph (15 km/h) when the acceleration and deceleration are repeated while driving at low speed. |
|
PGM FI AT ABS ABS ABS ― |
― |
| Transmission | Auto Idle Stop Disable Conditions
Determination
|
IDLE STOP INHIBIT (AT/CVT:
PRECONDITION)
|
PGM FI AT AT |
― |
| VSA |
|
IDLE STOP INHIBIT
(ABS/VSA UNIT)
VSA ADJUSTMENT |
PGM FI ABS |
― |
NOTE:
- If the some DTCs are indicated, the auto idle stop system may be disable.
- If the auto idle stop indicator (amber) is blinked by number of starter motor operations exceeded the setting limit, the auto idle stop indicator comes on when the auto idle stop system is turned to off by pressing the idle stop off switch.
| Idle Stop Disable Conditions | HDS | AUTO IDLE STOP INDICATOR (amber) | ||
| Item | Conditions | Parameter | Menu | |
| Brake Pedal |
|
CRUISE BRAKE SW/IDLE
STOP SW BRAKE SWITCH ― |
PGM FI PGM FI ― |
― ― ― |
| Accelerator Pedal | Accelerator pedal is pressed. | APP SENSOR | PGM FI | ― |
| Incline | Uphill or downhill determination | IDLE STOP INHIBIT (INCLINED STATE) | PGM FI | ― |
| PGM-FI |
|
― IDLE LEARN ECT SENSOR 1 |
― PGM FI PGM FI |
Blinks ― ― |
| Brake Booster Pressure | Auto Idle Stop Disable Conditions
Determination － Brake booster pressure is low (almost 0 kPa (0 inHg, 0 mmHg) than -32.9 kPa (-9.7 inHg, -247 mmHg) ) * . *: It is a variable depending on the atmospheric pressure. |
IDLE STOP INHIBIT (BRAKE
SYSTEM) － BRAKE BOOSTER PRESSURE SENSOR |
PGM FI BRAKE SYSTEM |
― ― |
| Climate Control System | Auto Idle Stop Disable Conditions
Determination
(While the climate control system is on) － Windshield defrost button is ON. － Temperature setting is Hi or Lo. － On demand multi-use display (ODMD) (TM) (blower fan display) is more than 5 segments. － Outside air temperature is 104 ºF (40 ºC) or above. － Outside air temperature is -4 ºF (-20 ºC) or less. － Windshield fogging is detected (based on outside air temperature, humidity, and other conditions). － When the cabin is uncomfortable due to high or low interior air temperature or high humidity. － Rear switch ON, blower fan at maximum speed. |
IDLE STOP INHIBIT (HVAC) ― ― ― ― ― ― ― |
PGM FI ― ― ― ― ― ― ― |
― ― ― ― ― ― ― ― |
| DC-DC Converter | Auto Idle Stop Disable Conditions
Determination － DC-DC converter temperature failure/DC-DC converter internal failure/DC-DC converter input voltage failure. |
IDLE STOP INHIBIT (DC-DC
CONVERTER) ― |
PGM FI ― |
― ― |
NOTE:
- If the some DTCs are indicated, the auto idle stop system may be disable.
- If the auto idle stop indicator (amber) is blinked by number of starter motor operations exceeded the setting limit, the auto idle stop indicator comes on when the auto idle stop system is turned to off by pressing the idle stop off switch.
| Idle Stop Disable Conditions | HDS | AUTO IDLE STOP INDICATOR (amber) | ||
| Item | Conditions | Parameter | Menu | |
| 12 Volt Battery | Auto Idle Stop Disable Conditions
Determination － Temperature of the 12 volt battery is less than 14 ºF (-10 ºC). － 12 volt battery is deteriorated. － 12 volt battery voltage is insufficient. |
IDLE STOP INHIBIT (BATTERY
MANAGEMENT SYSTEM) － ESTIMATED BATTERY TEMPERATURE (BATTERY SENSOR) － IDLE STOP INHIBIT (BATTERY DETERIORATION) － IDLE STOP INHIBIT (LOW BATTERY VOLTAGE) |
PGM FI PGM FI PGM FI PGM FI |
― ― ― ― |
NOTE:
- If the some DTCs are indicated, the auto idle stop system may be disable.
- If the auto idle stop indicator (amber) is blinked by number of starter motor operations exceeded the setting limit, the auto idle stop indicator comes on when the auto idle stop system is turned to off by pressing the idle stop off switch.
Engine Restart Conditions After Auto Idle Stop
When any of the following conditions are met, the engine restarts after auto idle stop.
| Engine Restart Conditions | HDS | ||
| Item | Conditions | Parameter | Menu |
| Idle Stop Off Switch | Idle stop off switch is turned from OFF to ON. | IDLE STOP INHIBIT (IDLE STOP CANCEL SWITCH) | PGM FI |
| Driver's Seat Belt Buckle Switch | Driver's seat belt is removed. | IDLE STOP INHIBIT (SEAT BELT UNFASTENED) | PGM FI |
| Automatic Brake Hold | When the brake hold is changed operation to the deactivation. | ― | ― |
| Intelligent Traction Management Switch (AWD) | Except NORMAL mode is selected. | ― | ― |
| SNOW Switch (2WD) | SNOW mode is turned from OFF to ON. | ― | ― |
| Steering Wheel | Steering wheel is operated. | IDLE STOP INHIBIT (EPS UNIT) | PGM FI |
| Vehicle Speed | 0.6 mph (1 km/h) or more. | － VEHICLE SPEED － VEHICLE SPEED － LEFT FRONT WHEEL SPEED － RIGHT FRONT WHEEL SPEED － LEFT REAR WHEEL SPEED － RIGHT REAR WHEEL SPEED |
PGM FI AT ABS ABS ABS ABS |
| Transmission |
|
－ A/T N SWITCH － A/T D SWITCH － ATF Temperature |
AT AT AT |
| Brake Pedal |
|
|
PGM FI PGM FI |
| Accelerator Pedal | Accelerator pedal is pressed. | APP SENSOR | PGM FI |
| Brake Booster Pressure | Engine Restart Determination － Brake booster pressure became low (almost 0 kPa (0 inHg, 0 mmHg) than -30.2 kPa (-8.9 inHg, -227 mmHg) )*. *: It is a variable depending on the atmospheric pressure. |
IDLE STOP INHIBIT (BRAKE
SYSTEM) － BRAKE BOOSTER PRESSURE SENSOR
|
PGM FI BRAKE SYSTEM
|
| Climate Control System | Engine Restart Determination － Windshield defrost button is ON. － Selected system temperature is colder or warmer than the outside air temperature. － Rear switch ON, blower fan at maximum speed. |
IDLE STOP INHIBIT (HVAC) ― ―
|
PGM FI ― ―
|
| 12 Volt Battery | 12 volt battery voltage decrease during auto idle stop. | IDLE STOP INHIBIT (LOW BATTERY VOLTAGE) | PGM FI |
Engine Restart Disable Conditions
When any of the following conditions are met, engine restarts is disabled after auto idle stop.
| Engine Restart Conditions | HDS | ||
| Item | Conditions | Parameter | Menu |
| Hood | Hood is open. (Security hood switch is OFF) | IDLE STOP INHIBIT (HOOD OPEN) | PGM FI |
| Starter |
|
― ― |
― ― |
| DC-DC Converter | Engine Restart Disable Determination － DC-DC converter temperature failure/DC- DC converter internal failure/DC-DC converter input voltage failure. |
IDLE STOP INHIBIT (DC-DC
CONVERTER) ― |
PGM FI ― |
