Honda Pilot: Blind Spot Information/Cross Traffic Monitor System Description - Overview
The Blind Spot Information (BSI) radar unit emits radar waves from the left and right BSI radar and detects other vehicles in the blind spot. BSI and Cross Traffic Monitor system functions both use the BSI radar unit. The BSI alert indicators warn the driver when a vehicle enters the driver's side or the passenger's side blind spot alert zone. If the driver turns on the turn signal while the BSI alert is on, the BSI alert flashes and an audible alarm sounds to warn the driver.
The cross traffic monitor system's alerting arrows are displayed on the rear camera image of the audio-navigation display when the vehicle is in reverse. When an approaching vehicle enters the cross traffic monitor alert zone, the cross traffic monitor warns the driver with a warning indicator and an audible alarm.
If the BSI radar unit malfunctions, the BSI and cross traffic monitor systems stop operating. The vehicle alerts the driver that there is a problem by turning on a warning indicator on the gauge control module.
Radar Zone Definition
The BSI radars are installed on the left and right sides of the rear body panel and covered by the bumper. The mounting positions are symmetrical on the left and the right.
BSI System

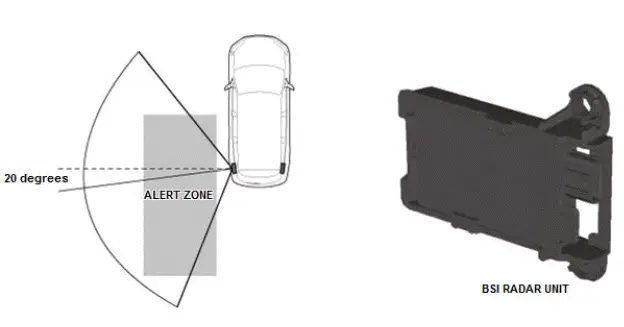

The radar wave emission range and the vehicle detection range of the BSI radar unit are shown. They are symmetrical. The alert zone makes up only a part of the radar detection range.
Cross Traffic Monitor System
When the BSI radar has a clear view of the environment around it, the cross traffic monitor system will warn to approaching vehicles.
The cross traffic monitor system evaluates the approaching target's speed, time to potential collision and location in the cross traffic monitor system's alert zone to decide if the system should warn or not warn the driver.
Detection Conditions
| Parameter | Warn |
| Your vehicle speed | less than 3 mph (5 km/h) |
| Time to collision | 1.2 to 3.2 seconds |
| Target closing speed | More than 6 mph (10 km/h), 16 mph (25 km/h) or less |
| Detection range | Less than 8.3 m (27.2 ft) or based on time to collision (up to 25m (82.0 ft) ) |

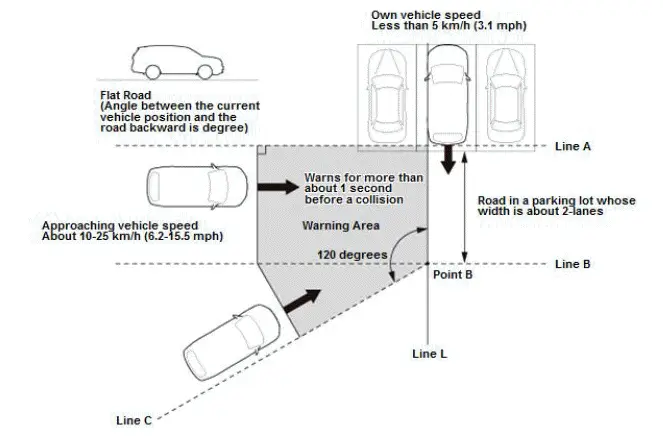

The system defines the time to collision, measured in seconds, that it takes for the target vehicle traveling at its current speed to reach the line L when the target vehicle is approaching perpendicular (between line A and B) to the client's vehicle. If the target vehicle is approaching from a wider angle (between line B and C), the time to collision is measured by how long it takes the target vehicle traveling at its current speed to reach point B.
Detection Range

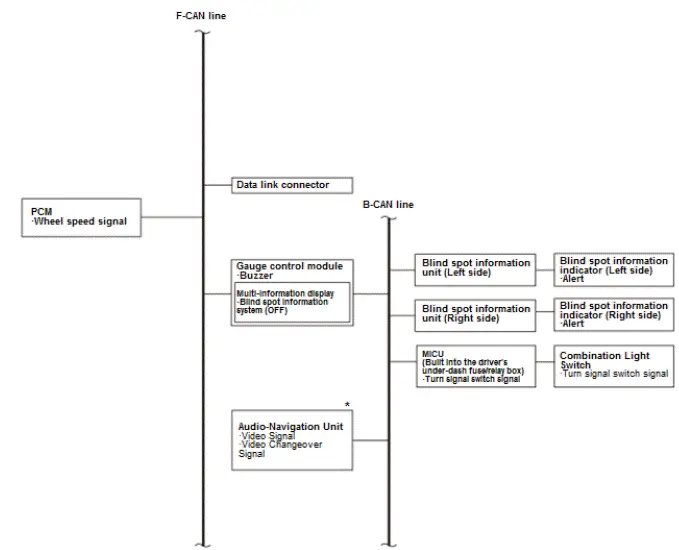

Blind Spot Information/Cross Traffic Monitor System Description - System Diagram
The BSI radar units obtain information from external sensors and switches that are connected to their respective control units.
* Use the cross traffic monitor function only.
