Honda Pilot: Camshaft Pulley Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Camshaft Pulley Removal and Installation
Removal/Installation
1. Timing Belt - Remove
2. Camshaft Pulley - Remove

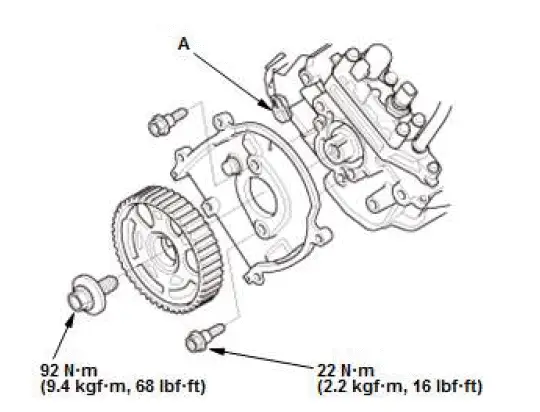

FRONT

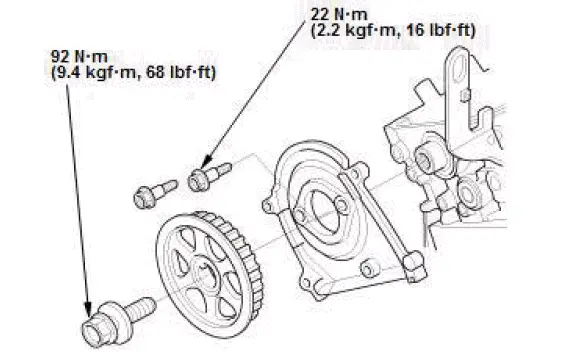

REAR
- Remove the camshaft pulley and the back cover.
- Front: Disconnect the connector (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Apply new engine oil to the threads of the camshaft pulley mounting bolt.
