Honda Pilot: Center Console Panel Removal and Installation

Removal/Installation

1. Shift Lever Knob - Move (6-Speed A/T)

NOTE : Shift the shift lever to L.

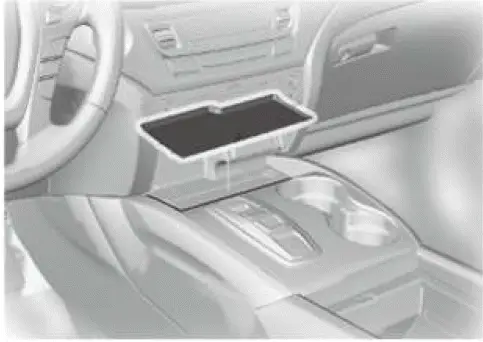

2. Front Rubber Mat - Remove

3. Center Console Panel - Remove

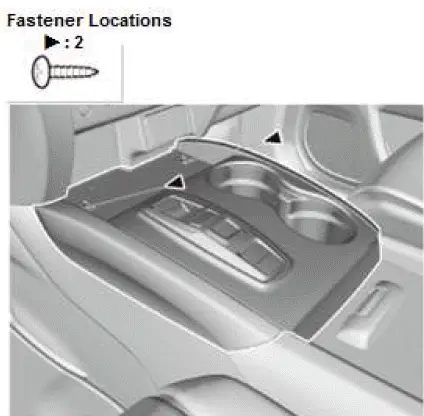

1. Remove the screws.

   NOTE: 9-Speed A/T model is shown. Procedure for 6- Speed A/T is similar.

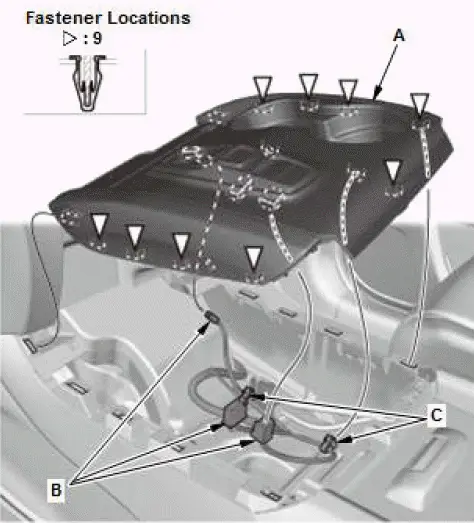

2. Remove the center console panel (A).
3. Disconnect the connectors (B) and clips (C). (for some models)

4. Center Console Side Panel - Remove

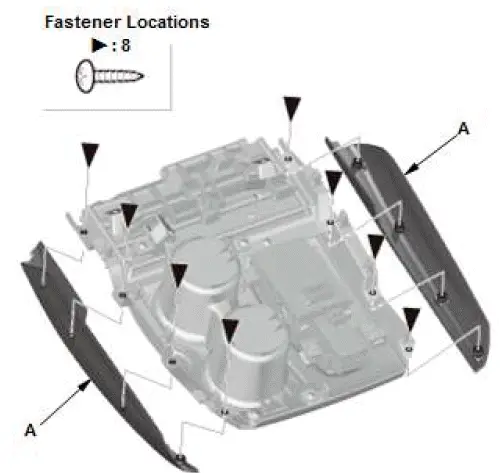

1. Remove the center console side panels (A).

5. Center Console Center Panel - Remove (6-Speed A/T)

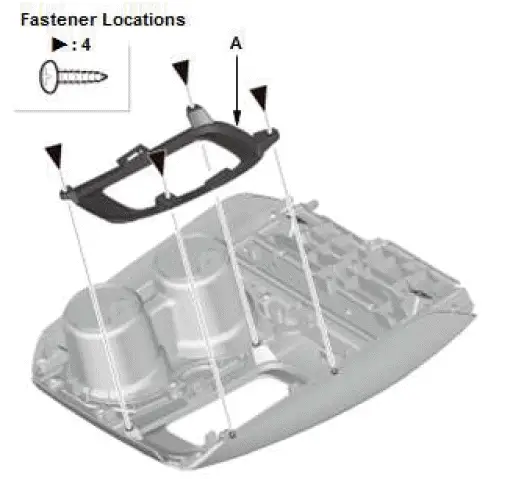

1. Remove the center console center panel (A).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
