Honda Pilot: Climate Control System Component Location Index

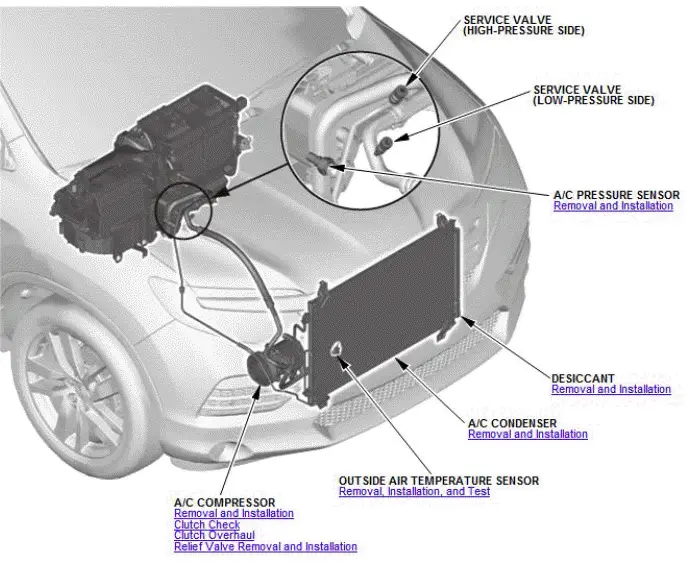

• SERVICE VALVE (HIGH-PRESSURE SIDE)
• SERVICE VALVE (LOW-PRESSURE SIDE)
• A/C PRESSURE SENSOR
• DESICCANT
• A/C CONDENSER
• OUTSIDE AIR TEMPERATURE SENSOR
• A/C COMPRESSOR

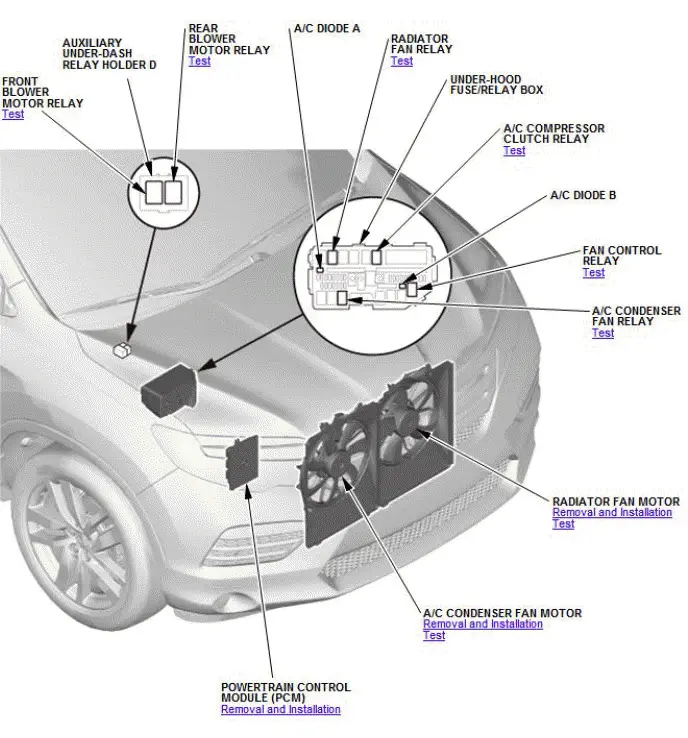

• FRONT BLOWER MOTOR RELAY
• AUXILIARY UNDER-DASH RELAY HOLDER D
• REAR BLOWER MOTOR RELAY
• A/C DIODE A
• RADIATOR FAN RELAY
• UNDER-HOOD FUSE/RELAY BOX
• A/C COMPRESSOR CLUTCH RELAY
• A/C DIODE B
• CONTROL RELAY
• A/C CONTROL FAN RELAY
• RADIATOR FAN MOTOR
• A/C CONDENSER FAN MOTOR
• POWERTRAIN CONTROL MODULE (PCM)

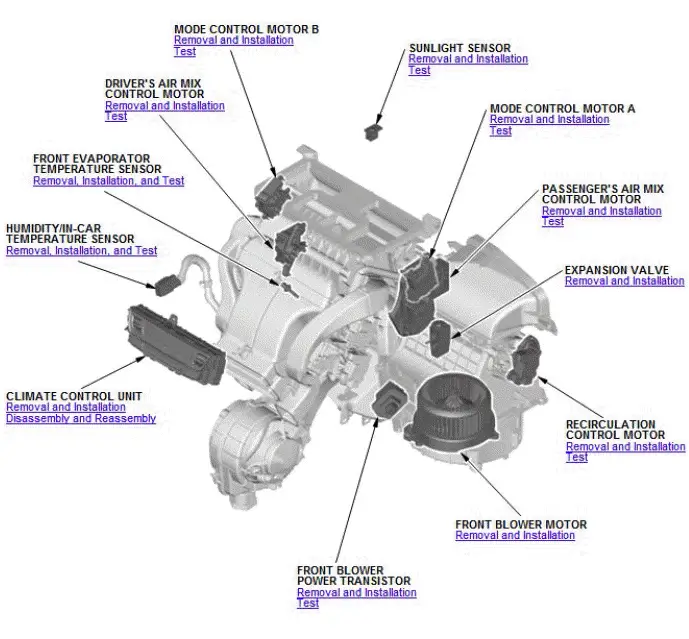

• MODE CONTROL MOTOR B
• DRIVER'S AIR MIX CONTROL MOTOR
• FRONT EVAPORATOR TEMPERATURE SENSOR
• HUMIDITY/IN-CAR TEMPERATURE SENSOR
• CLIMATE CONTROL UNIT
• FRONT BLOWER POWER TRANSISTOR
• FRONT BLOWER MOTOR
• RECIRCULATION CONTROL MOTOR
• EXPANSION VALVE
• PASSENGER'S AIR MIX CONTROL MOTOR
• MODE CONTROL MOTOR A
• SUNLIGHT SENSOR

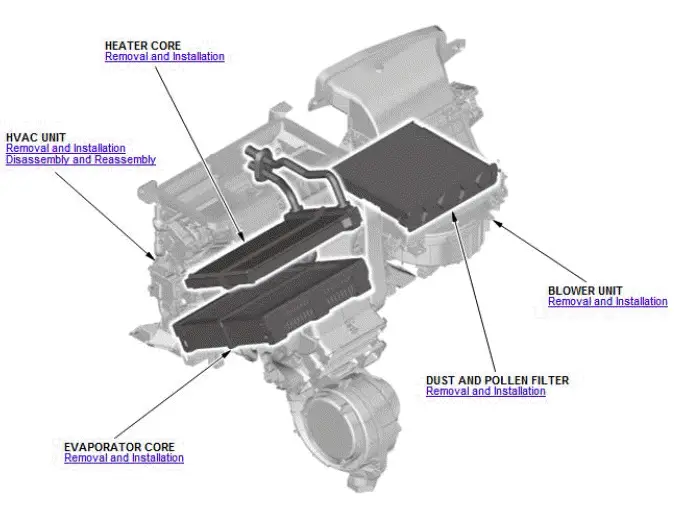

• HEATER CORE
• HVAC UNIT
• EVAPORATOR CORE
• DUST AND POLLEN FILTER
• BLOWER UNIT

Collision Mitigation Braking System (CMBS) Component Location Index

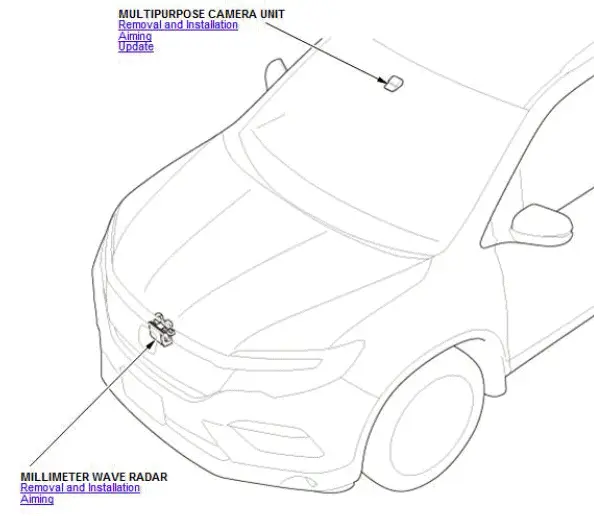

• MULTIPURPOSE CAMERA UNIT
• MILLIMETER WAVE RADAR

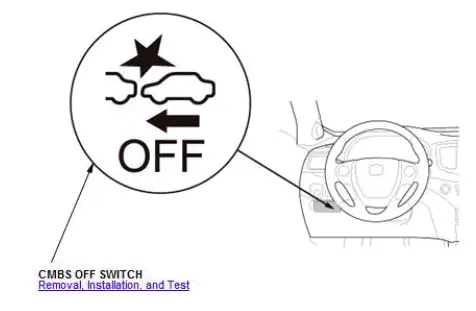

• CMBS OFF SWITCH
