Honda Pilot: Communication Systems (F-CAN) Description - Overview

F-CAN (High-speed CAN)

The network between the powertrain and control units for chassis system is called F-CAN and it employs high speed CAN with communication rate at 500 kbps.

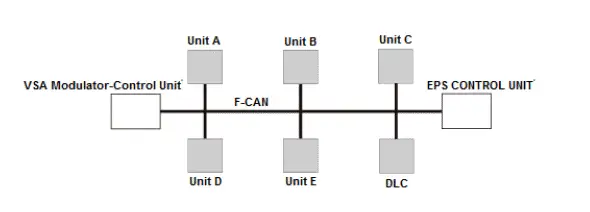

6-speed automatic transmission

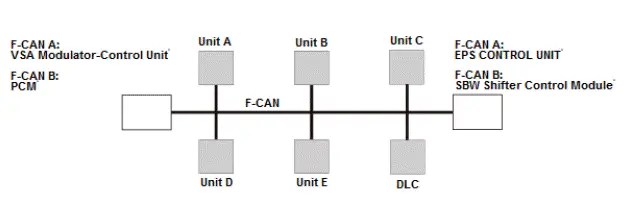

9-speed automatic transmission

Typical CAN Bus Communication Operation

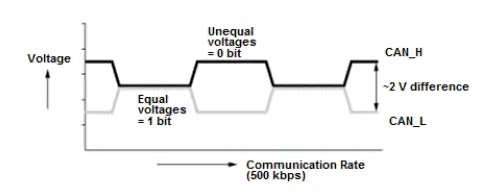

The F-CAN detects the differential voltage generated between two communication wires (CAN_H and CAN_L) and uses it as a signal level. This is a digital signal that indicates "1" when equal voltage is found and "0" when unequal voltage is found.
