Honda Pilot: Console Accessory Power Socket Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Console Accessory Power Socket Removal and Installation
Removal/Installation
1. Center Console - Remove

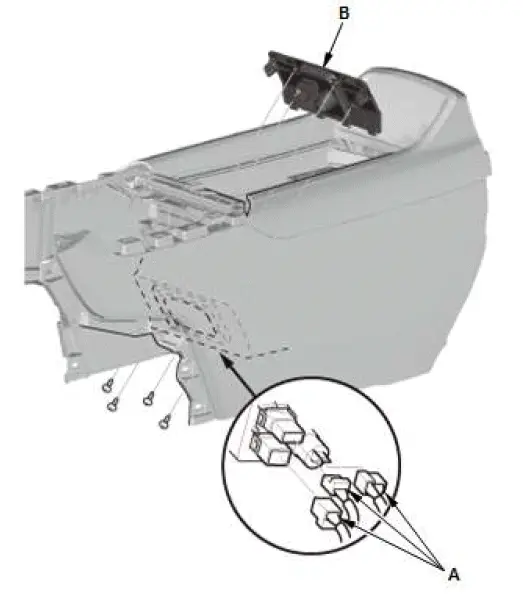

2. Console Jack Panel - Remove
- Disconnect the connectors (A).
- Remove the console jack panel (B).

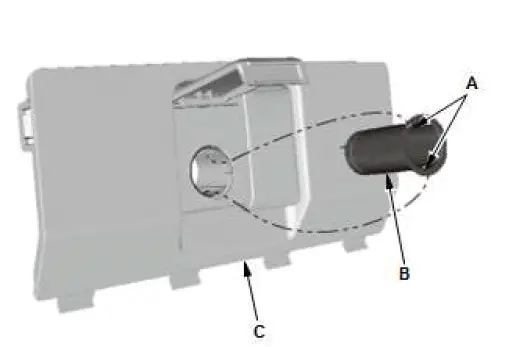

3. Console Accessory Power Socket - Remove
- Gently press the tabs (A), and remove the console accessory power socket (B) from the console jack panel (C).
4. All Removed Parts - Install
