Honda Pilot: Controls

Clock

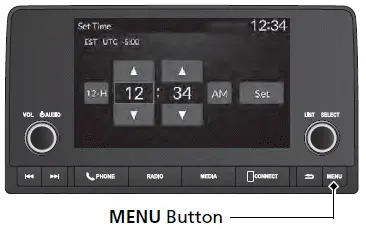

Models with 7-in. Color Touchscreen

1. Press the MENU button.
2. Select Clock Settings.
3. Select Automatic Time, then select OFF.
4. Select Set Time.
5. Select 12H/24H to change 12 or 24 hour clock.
6. Select or .
7. Select Set to set the time.

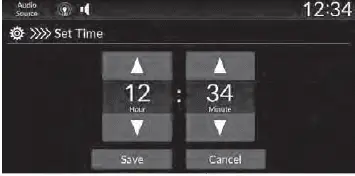

Models with 9-in. Color Touchscreen

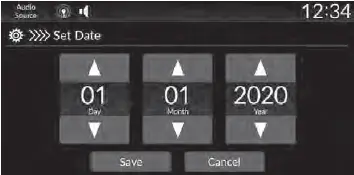

To adjust date

To adjust time

1. Press the button.
2. Select General Settings.
3. Select System.
4. Select Date & Time.
5. Select Set Date & Time.
6. Select Automatic Date & Time, then select OFF.
7. Select Set Date or Set Time.
8. Select or .
9. Select Save to set the date or time.

The clock is automatically updated through the audio system.

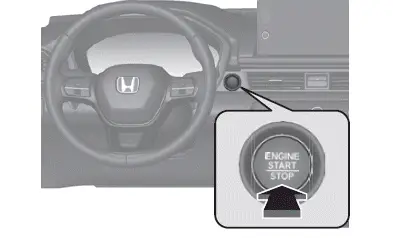

ENGINE START/STOP Button

To change the power mode in the Pilot 2023-2024, simply press the designated button provided for this function. This action allows drivers to seamlessly switch between different driving modes, including eco-friendly, sporty, or normal modes. The ability to adjust these modes within the Honda Pilot 2023 ensures that drivers can optimize the vehicle's performance to suit their preferences and specific driving conditions effectively.

Turn Signals

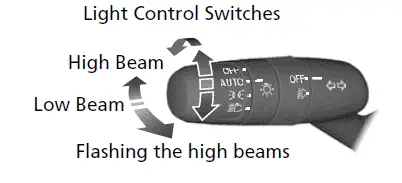

Lights

The lighting system in the Honda Pilot 2023 is designed to enhance visibility and safety in various driving conditions. It includes:

1. Headlights: Equipped with powerful LED headlights that provide bright illumination for enhanced visibility at night or in adverse weather conditions.
2. Daytime Running Lights (DRL): Integrated into the front of the vehicle to increase visibility to other drivers during daylight hours, improving overall safety.
3. Fog Lights: Available to provide additional illumination in foggy or misty conditions, enhancing visibility close to the ground and reducing glare.
4. Tail Lights: LED tail lights that illuminate brightly to make the vehicle visible to other drivers from behind, enhancing safety during braking and nighttime driving.

The Honda Pilot 2023's lighting system is meticulously designed to ensure optimal visibility and safety, contributing to a confident driving experience in diverse road and weather conditions.

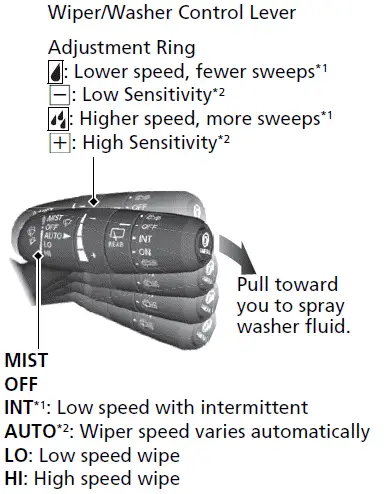

Wipers and Washers

The wipers and washers system in the Honda Pilot 2023 is engineered to provide reliable functionality in varying weather conditions. Equipped with adjustable intermittent settings, the wipers effectively clear rain, snow, or debris from the windshield, ensuring optimal visibility for the driver. Additionally, the washer system is integrated with the wipers, allowing drivers to spray washer fluid onto the windshield for enhanced cleaning when necessary. This combination of features enables the 2023-2024 Honda Pilot to maintain clear visibility and ensure safe driving experiences in diverse weather environments, enhancing overall driver confidence on the road.

*1: Models with manual intermittent operation
*2: Models with automatic intermittent operation

Models with automatic intermittent wipers

Vehicles equipped with automatic intermittent wipers in the Honda Pilot 2023 should always have the "AUTO" setting turned OFF before performing the following actions to prevent potential damage to the wiper system:

1. Cleaning the Windshield: Before manually cleaning the windshield, ensure that the automatic wiper setting is switched off to avoid unintended activation.
2. Driving through a Car Wash: When entering a car wash facility, it's important to deactivate the automatic wiper function to prevent the wipers from operating unnecessarily and potentially causing damage.
3. No Rain Present: If there is no precipitation or moisture on the windshield, turn off the automatic wiper setting to prevent unnecessary wear and tear on the wiper blades and system.

By manually switching off the "AUTO" setting in these situations, Honda Pilot 2023 owners can help maintain the longevity and proper functioning of their wiper system, ensuring reliable performance when needed in inclement weather conditions.

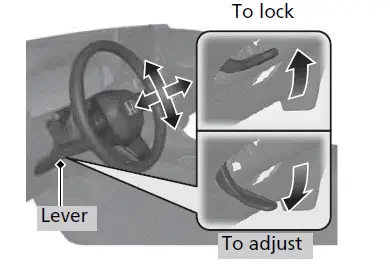

Steering Wheel

• To make adjustments, push the adjustment lever downward, position it as desired, and then secure the lever in place by locking it back into position. This process allows for precise customization of settings to meet individual preferences or requirements.

Opening the Front Doors from Inside in a Honda Pilot

• To unlock and open the front doors of your Honda Pilot 2023 simultaneously, just pull the interior handle of either door..

Tailgate

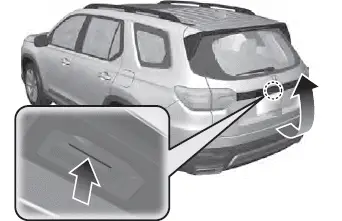

• Press the tailgate outer handle to unlock and open the tailgate when you have the keyless remote on you.

Models with power tailgate

• Press and hold the power tailgate button on the driver's side control panel or the remote transmitter to open and close the power tailgate.

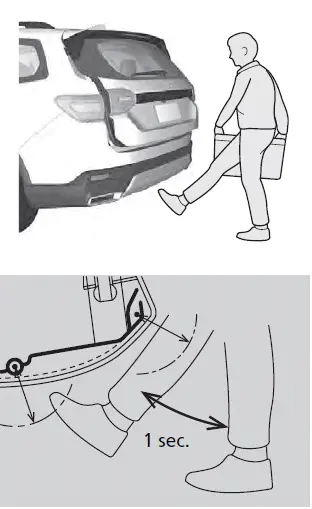

Models with Hands-Free Access in a Honda Pilot 2023

With the remote on you, perform a kicking motion under the center of the rear bumper to open or close the tailgate of your Honda Pilot.

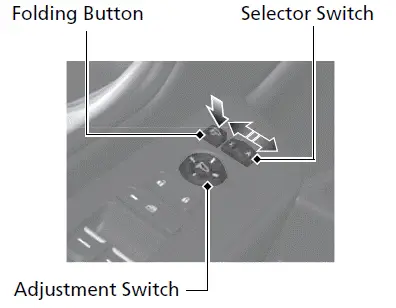

Power Door Mirrors

• With the power mode in ON, move the selector switch to L or R.
• Push the appropriate edge of the adjustment switch to adjust the mirror.

Models with folding button

• Press the folding button to fold in and out the door mirrors.

• Folding Button
• Selector Switch
• Adjustment Switch

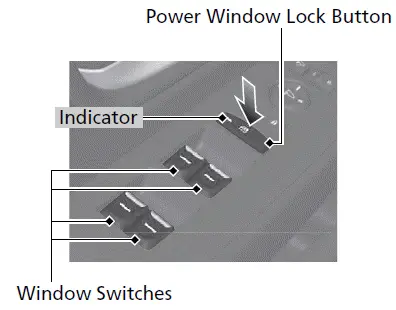

Power Windows

• With the power mode in ON, open and close the power windows.
• If the power window lock button is in the off position, each passenger's window can be opened and closed with its own switch.
• If the power window lock button is in the on position (indicator is on), each passenger's window switch is disabled.

• Power Window Lock Button
• Window Switches

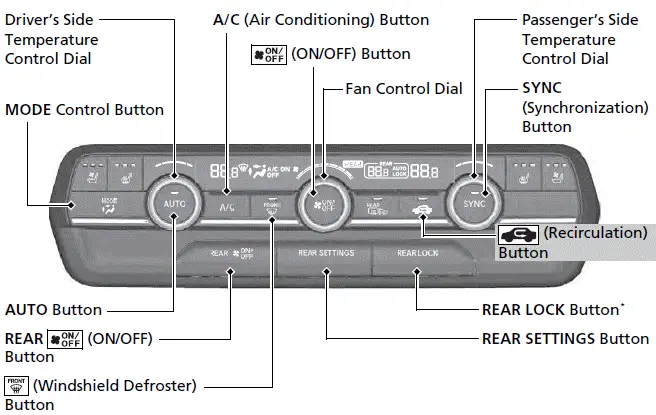

Climate Control System

The car comes equipped with an advanced climate control system designed to keep all passengers comfortable, no matter the weather conditions outside. The tri-zone automatic climate control allows the driver, front passenger, and rear-seat passengers to set their preferred temperature independently, ensuring personalized comfort throughout the cabin. The system automatically adjusts the fan speed, air distribution, and temperature to maintain the selected climate settings, providing a seamless and hassle-free experience.

In addition to its tri-zone functionality, the Honda Pilot's climate control system includes features such as heated and ventilated front seats, which add an extra layer of comfort during extreme weather conditions. The rear seats also benefit from independent climate controls, allowing passengers in the back to customize their environment without affecting the front-seat settings. With these comprehensive climate control options, the 2023 Honda Pilot ensures that every journey is enjoyable, regardless of external temperatures.

• Press the AUTO button to activate the climate control system.
• Press the button to turn the system on or off.
• Press the button to defrost the windshield.

• MODE Control Button
• Driver's Side Temperature Control Dial
• A/C (Air Conditioning) Button
• (ON/OFF) Button
• Fan Control Dial
• Passenger's Side Temperature Control Dial
• SYNC (Synchronization) Button
• REAR LOCK Button
• REAR SETTINGS Button
• AUTO Button
• REAR (ON/OFF) Button
• (Windshield Defroster) Button

Dashboard vents' and back of the console compartment

Dashboard and floor vents', and back of the console compartment

  Floor vents

Floor and windshield defroster vents

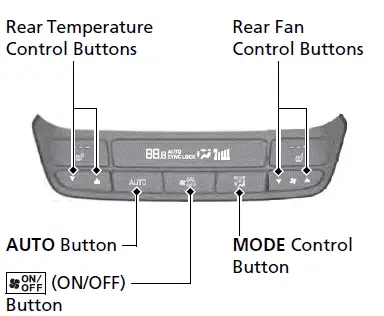

Rear Climate Control

• Press the rear AUTO button to activate the rear climate control system.
• Press the button to turn the system on or off.

• Rear Temperature Control Buttons
• Rear Fan Control Buttons
• MODE Control Button
• AUTO Button
• (ON/OFF) Button

 Back of console and 3rd row vents'

 Back of console, rear floor, and 3rd row vents'

 Rear floor vents
