Honda Pilot: Cylinder Head Assembly Component Location Index

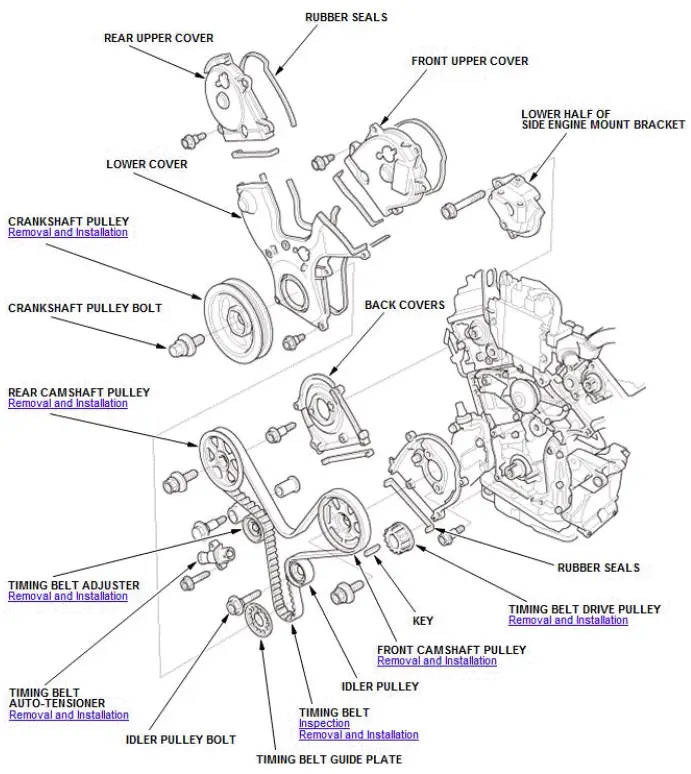

• REAR UPPER COVER
• RUBBER SEALS
• FRONT UPPER COVER
• LOWER HALF OF SIDE ENGINE MOUNT BRACKET
• RUBBER SEALS
• TIMING BELT DRIVE PULLEY
• KEY
• FRONT CAM SHAFT PULLEY
• IDLER PULLEY
• TIMING BELT
• TIMING BELT GUIDE PLATE
• IDLER PULLEY BOLT
• TIMING BELT AUTO-TENSIONER
• TIMING BELT ADJUSTER
• REAR CAMSHAFT PULLEY
• BACK COVER
• CRANKSHAFT PULLEY BOLT
• CRANKSHAFT PULLEY
• LOWER COVER

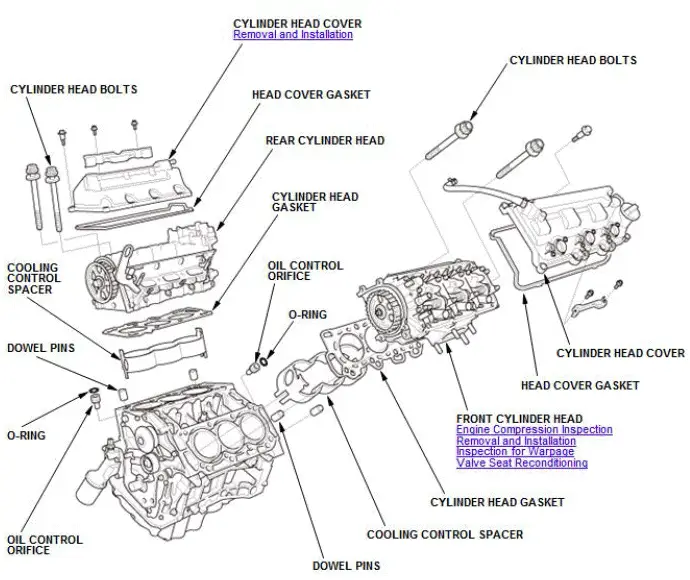

• CYLINDER HEAD BOLTS
• CYLINDER HEAD COVER
• HEAD COVER GASKET
• FRONT CYLINDER HEAD
• CYLINDER HEAD GASKET
• COOLING CONTROL SPACER
• DOWEL PINS
• OIL CONTROL ORIFICE
• O-RING
• DOWEL PINS
• COOLING CONTROL SPACER
• REAR CYLINDER HEAD

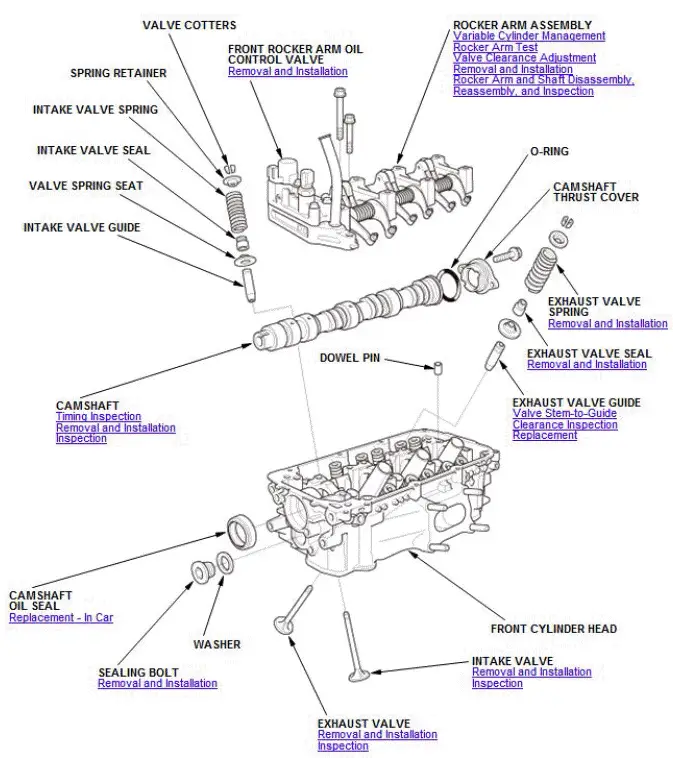

FRONT

• VALVE COTTERS
• SPRING RETAINER
• INTAKE VALVE SPRING
• INTAKE VALVE SEAL
• VALVE SPRING SEAT
• INTAKE VALVE GUIDE
• FRONT ROCKER ARM OIL CONTROL VALVE
• ROCKER ARM ASSEMBLY
• O-RING
• CAMSHAFT THRUST COVER
• CAMSHAFT
• EXHAUST VALVE SPRING
• EXHAUST VALVE SEAL
• EXHAUST VALVE GUIDE
• FRONT CYLINDER HEAD
• INTAKE VALVE
• EXHAUST VALVE
• WASHER
• SEALING BOLT
• CAMSHAFT OIL SEAL

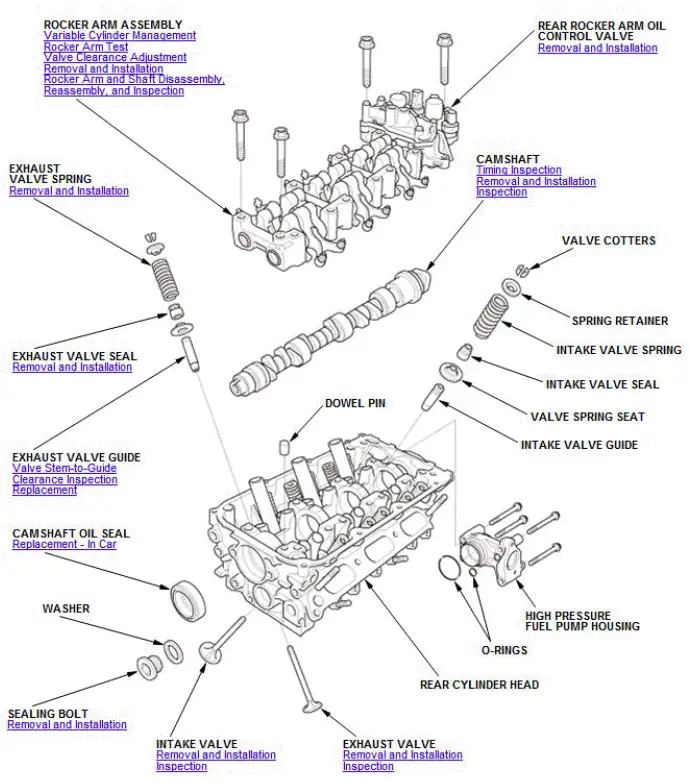

REAR

• ROCKER ARM ASSEMBLY
• REAR ROCKER ARM OIL CONTROL VALVE
• CAMSHAFT
• VALVE COTTERS
• SPRING RETAINER
• INTAKE VALVE SPRING
• INTAKE VALVE SEAL
• VALVE SPRING SEAT
• INTAKE VALVE GUIDE
• HIGH PRESSURE FUEL PUMP HOUSING
• O-RINGS
• DOWEL PIN
• REAR CYLINDER HEAD
• EXHAUST VALVE
• INTAKE VALVE
• SEALING BOLT
• WASHER
• CAMSHAFT OIL SEAL
• EXHAUST VALVE GUIDE
• EXHAUST VALVE SEAL
• EXHAUST VALVE SPRING
