Honda Pilot: Door Lock Actuator Test

Test

Front Door

1. Front Door Panel - Remove

2. Front Door Lock Actuator - Test

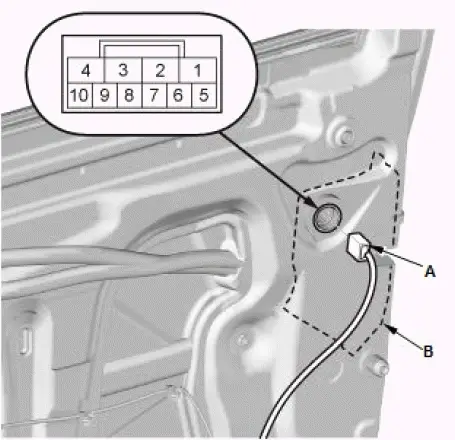

  Driver's door

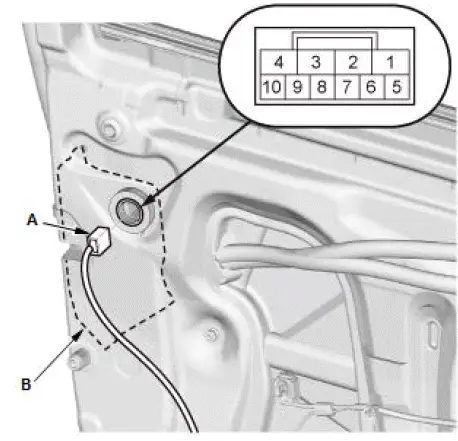

  Front passenger's door

1. Disconnect the connector (A).

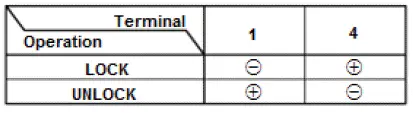

2. Check the actuator operation by connecting power and ground according to the table.

   NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Door

1. Rear Door Panel - Remove

2. Rear Door Lock Actuator - Test

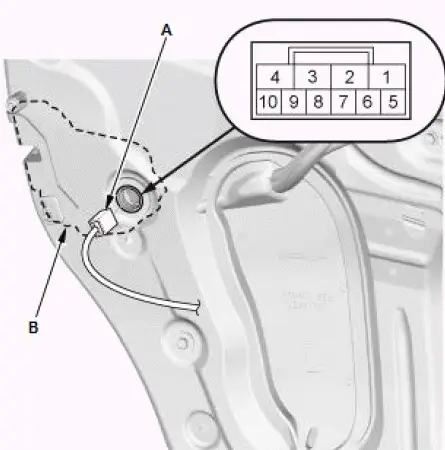

  Left and Right Rear Door

1. Disconnect the connector (A).

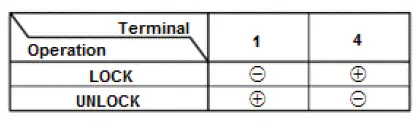

2. Check the actuator operation by connecting power and ground according to the table.

   NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
