Honda Pilot: Engine Block Assembly Component Location Index

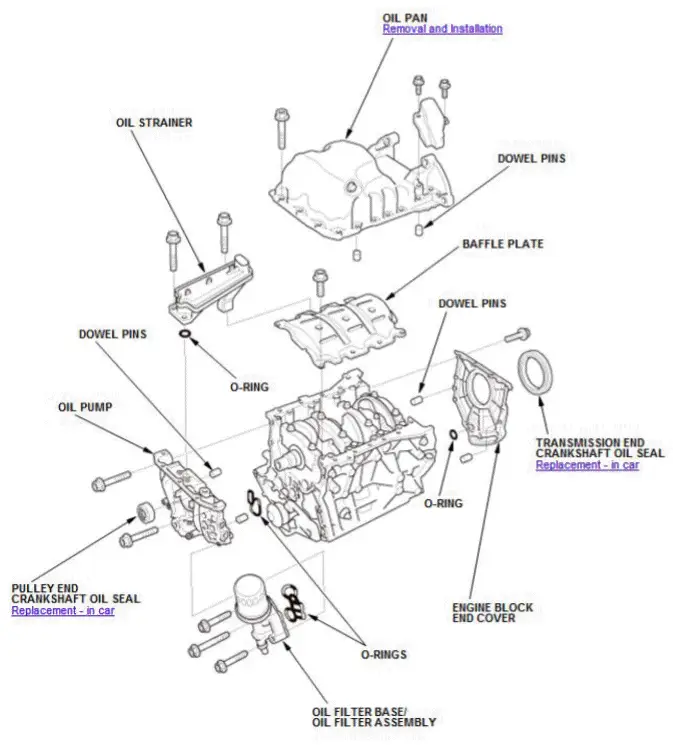

• OIL PAIN
• OIL STRAINER
• O-RING
• DOWEL PINS
• OIL PUMP
• PULLEY END CRANKSHAFT OIL SEAL
• OIL FILTER BASE/OIL FILTER ASSEMBLY
• O-RINGS
• ENGINE BLOCK END COVER
• TRANSMISSION END CRANKSHAFT OIL SEAL
• DOWEL PINS
• BAFFLE PLATE
• DOWEL PINS

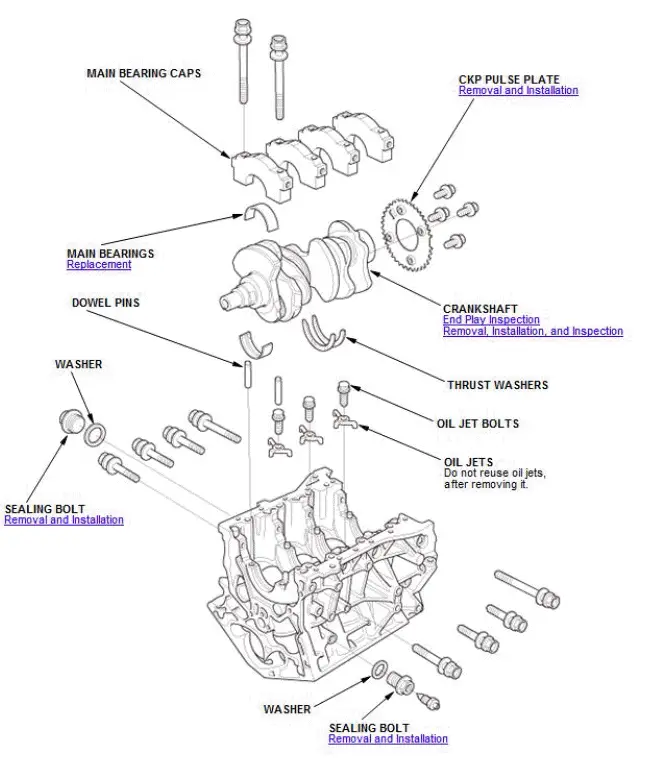

• MAIN BEARING CAPS
• MAIN BEARINGS
• DOWEL PINS
• WASHER
• SEALING BOLT
• CKP PULSE PLATE
• CRANKSHAFT
• THRUST WASHERS
• OIL JET BOLTS
• OIL JETS
  Go not reuse oil jets. after removing it.
• SEALING BOLT
• WASHER

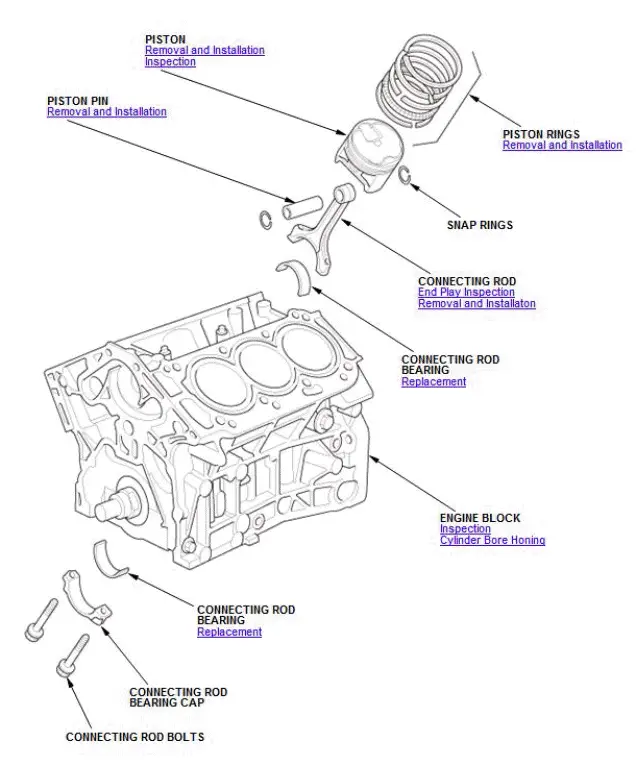

• PISTON
• PISTON PIN
• PISTON RINGS
• SNAP RINGS
• CONNECTING ROD
• CONNECTING ROD BEARING
• ENGINE BLOCK
• CONNECTING ROD BEARING
• CONNECTING ROD BEARING CAP
• CONNECTING ROD BOLTS

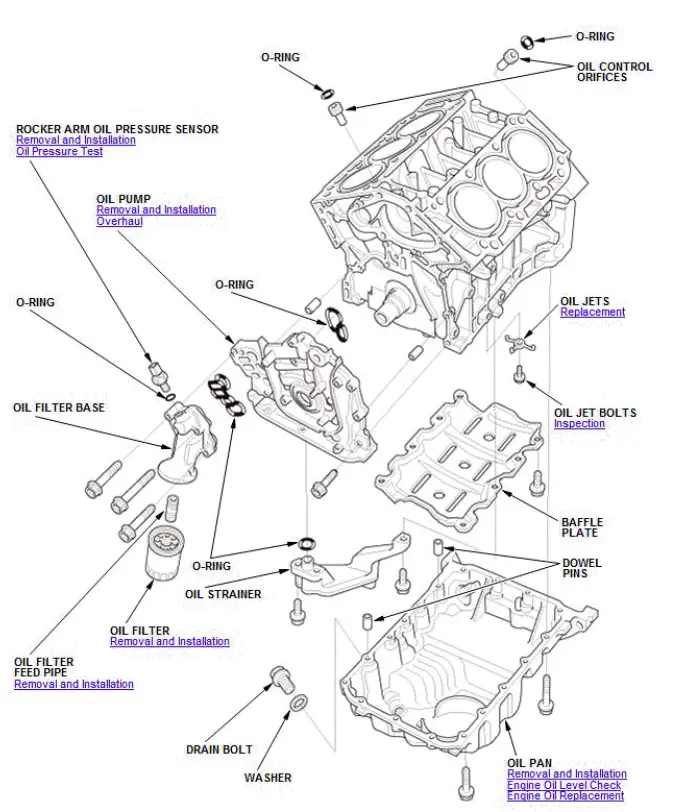

Engine Lubrication System Component Location Index

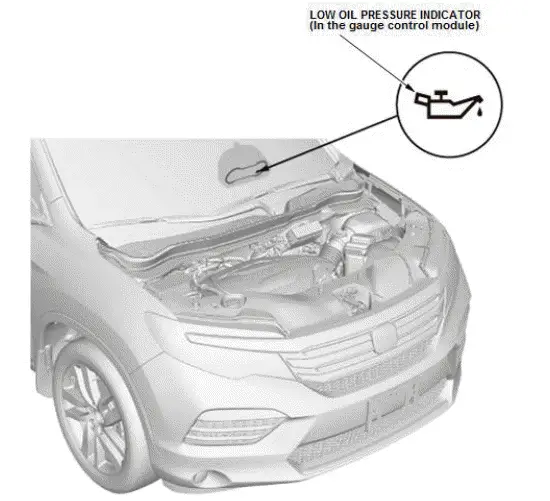

• LOW OIL PRESSURE INDICATOR (In the gauge control module)

• O-RING
• OIL CONTROL ORIFICES
• OIL JETS
• OIL JET BOLTS
• BAFFLE PLATE
• DOWEL PINS
• OIL PAN
• WASHER
• DRAIN BOLT
• OIL STRAINER
• OIL FILTER
• OIL FILTER FEED PIPE
• OIL FILTER BASE
• OIL PUMP
• ROCKER ARM OIL PRESSURE SENSOR
