Honda Pilot: Engine Block Sealing Bolt Removal and Installation

Removal/Installation

1. Sealing Bolt and Washer - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Engine Mount Control Unit Removal and Installation

Removal/Installation

1. 12 Volt Battery Terminal - Disconnect

2. Passenger's Dashboard Undercover - Remove

3. Stereo Amplifier - Remove (With Stereo Amplifier)

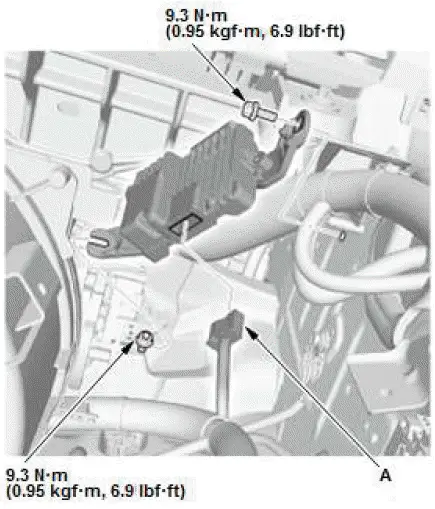

4. Engine Mount Control Unit - Remove

1. Disconnect the connector (A).
2. Remove the engine mount control unit.

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
