Honda Pilot: Exterior Lights Component Location Index

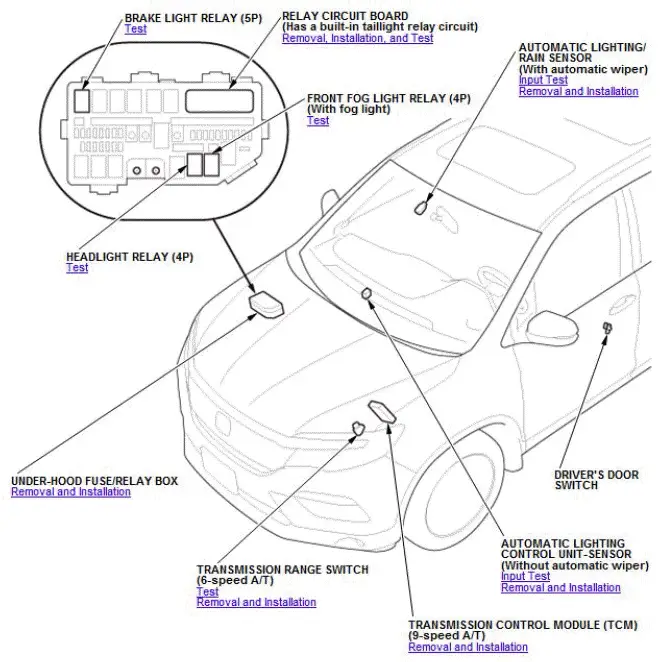

• BRAKE LIGHT RELAY (5P)
• RELAY CIRCUIT BOARD
• FRONT FOG LIGHT RELAY (4P)
• HEADLIGHT RELAY (4P)
• UNDER-HOOD FUSE/RELAY BOX
• TRANSMISSION RANGE SWITCH (6-speed A/T)
• TRANSMISSION CONTROL MODULE (TCM) (9-speed A/T)
• AUTOMATIC LIGHTING CONTROL UNIT-SENSOR
• DRIVER'S DOOR SWITCH
• AUTOMATIC LIGHTING LIGHTING/RAIN SENSOR

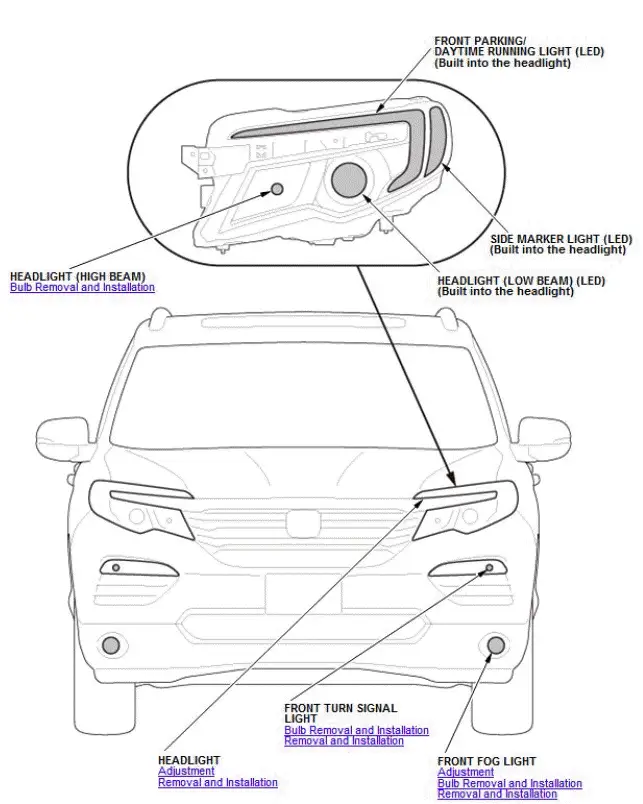

With LED headlight

• FRONT PARKING/ DAYTIME RUNNING LIGHT (LED) (Built into the headlight)
• SIDE MARKER LIGHT
• HEADLIGHT (LOW BEAM) (LED) (Built into the headlight)
• HEADLIGHT (HIGH BEAM)
• HEADLIGHT
• FRONT TURN SIGNAL LIGHT
• FRONT FOG LIGHT

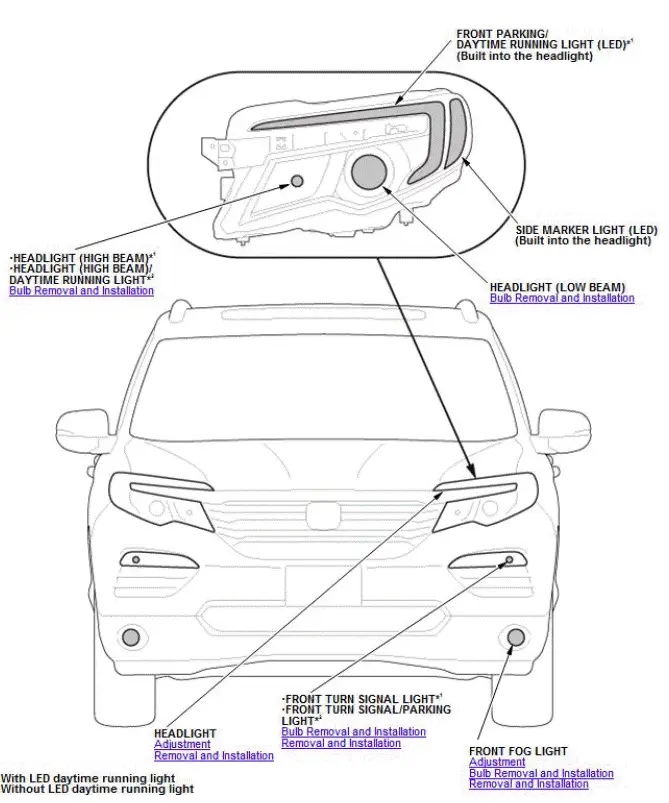

Without LED headlight

• HEADLIGHT (HIGH BEAM)*1
• HEADLIGHT (HIGH BEAM)/ DAYTIME RUNNING LIGHT*2
• FRONT PARKING/ DAYTIME RUNNING LIGHT (LED)*1 (Built into the headlight)
• SIDE MARKER LIGHT (LED)
• FRONT FOG LIGHT
• FRONT TURN SIGNAL LIGHT*1
• FRONT TURN SIGNAL/PARKING LIGHT*2
• HEADLIGHT

*1: With LED daytime running light
*2: Without LED daytime running light

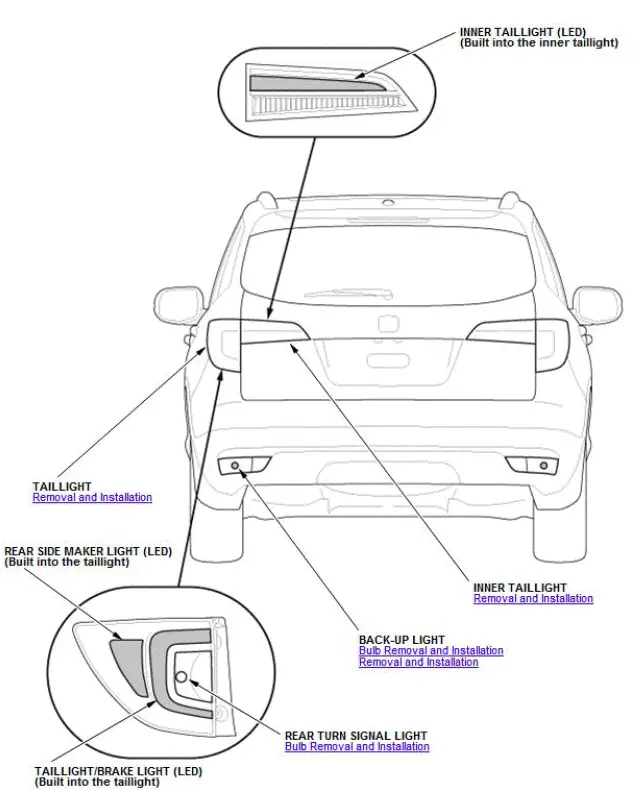

• INNER TAILLIGHT (LED) (Built into the inner taillight)
• INNER TAILLIGHT
• TAILLIGHT
• BACK-UP LIGHT
• TAILLIGHT/BRAKE LIGHT (LED)
• REAR SIDE MAKER LIGHT (LED)
• REAR TURN SIGNAL LIGHT

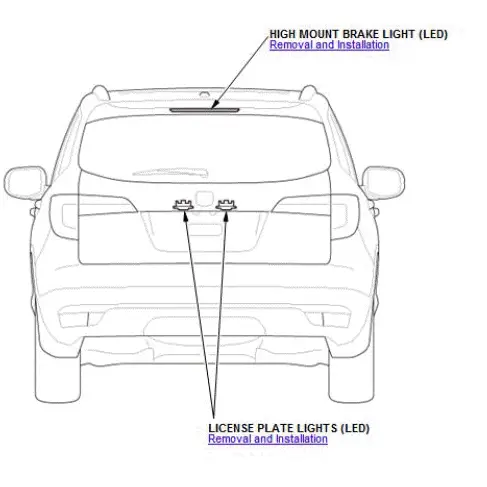

• HIGH MOUNT BRAKE LIGHT (LED)
• LICENSE PLATE LIGHT (LED)

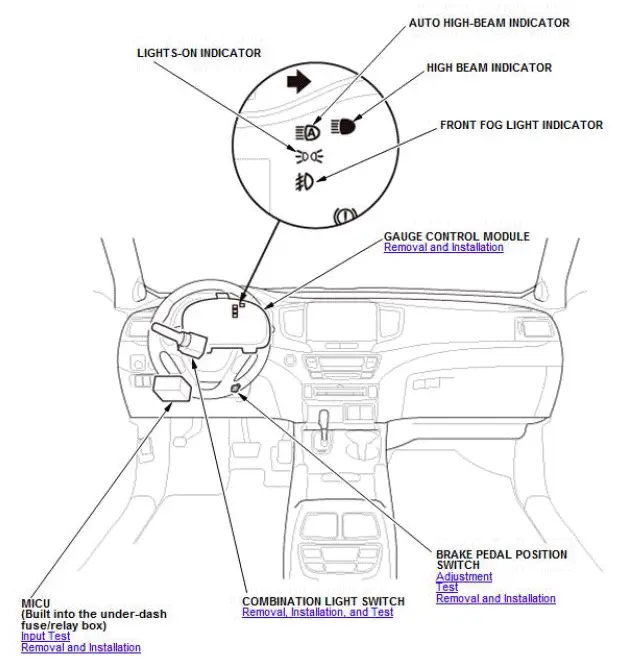

• MICU (Built in to the under-dash fuse/relay box)
• COMBINATION LIGHT SWITCH
• BRAKE PEDAL POSITION SWITCH
• GAUGE CONTROL MODULE
• FRONT FOG LIGHT INDICATOR
• HIGH BEAM INDICATOR
• AUTO HIGH-BEAM INDICATOR
• LIGHTS-ON INDICATOR

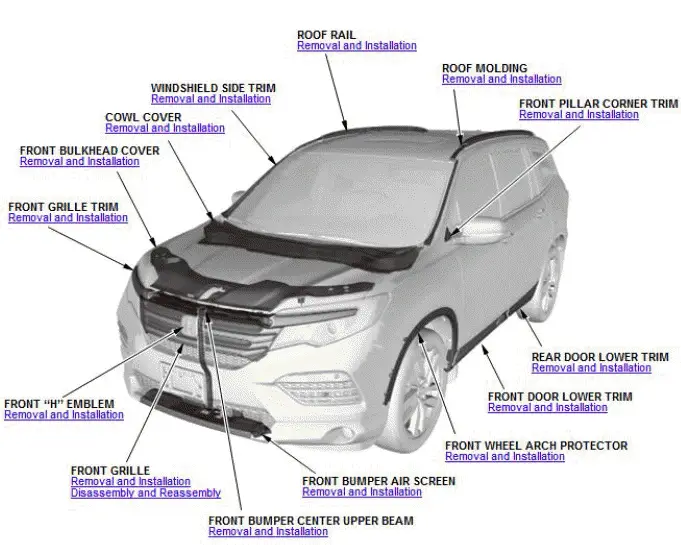

Exterior Trim Component Location Index

• ROOF RAIL
• ROOF MOLDING
• FRONT PILLAR CORNER TRIM
• REAR DOOR LOWER TRIM
• FRONT DOOR LOWER TRIM
• FRONT WHEEL ARCH PROTECTOR
• FRONT BUMPER AIR SCREEN
• FRONT BUMPER CENTER UPPER BEAM
• FRONT GRILLE
• FRONT "H" EMBLEM
• FRONT GRILLE TRIM
• FRONT BULKHEAD COVER
• COWL COVER
• WINDSHIELD SIDE TRIM

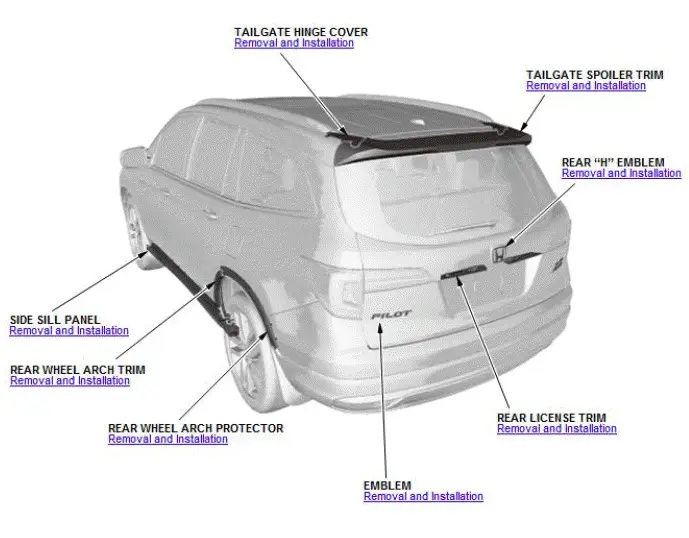

• TAILGATE HINGE COVER
• TAILGATE SPOILER TRIM
• REAR "H" EMBLEM
• REAR LICENSE TRIM
• EMBLEM
• REAR WHEEL ARCH TRIM
• SIDE SILL PANEL
