Honda Pilot: Front Brake Disc Removal and Installation

Removal/Installation

NOTE: Keep grease away from the brake disc and the brake pads.

1. Vehicle - Lift

2. Front Wheel - Remove

3. Front Brake Caliper - Remove

1. Remove the brake hose mounting bolt (A).
2. Remove the caliper assembly (B).

NOTE:

• To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage.
• Do not twist the brake hose excessively.

4. Front Brake Disc - Remove

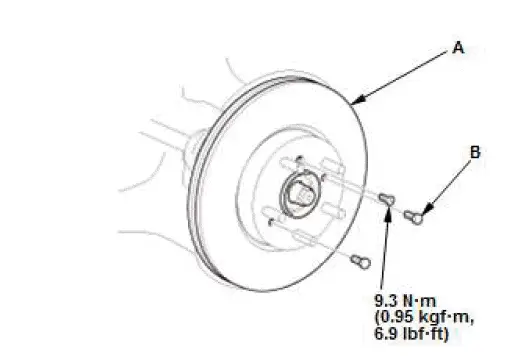

1. Remove the brake disc (A).

   NOTE: If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (B) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.

5. All Removed Parts - Install

1. Install the brake disc in the reverse order of removal.

NOTE: Before installing the brake disc, clean the mating surfaces between the hub bearing unit and the inside of the brake disc.

6. Front Brake Disc Runout - Inspect
