Honda Pilot: Front Brake Pad Inspection

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Inspection Info / Front Brake Pad Inspection

Inspection

CAUTION

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

  • Avoid breathing dust particles.
  • Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

1. Vehicle - Lift

2. Front Wheels - Remove

3. Front Brake Pad - Inspect

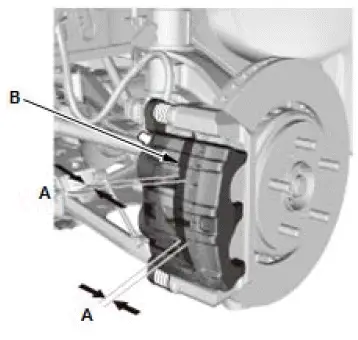

Inner pad

Honda Pilot. Inspection Info

  1. Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the backing plate.

Brake pad thickness:

  Standard: 11.0 mm (0.433 in)

  Service limit: 1.6 mm (0.063 in)

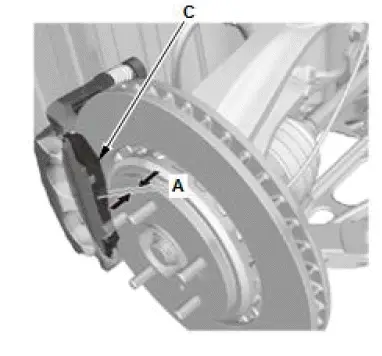

Outer pad

Honda Pilot. Inspection Info

4. Front Wheels - Install
