Honda Pilot: Fuses

If any electrical devices in 2023 Honda Pilot are not working, follow these steps to check for a blown fuse:

1. Turn Off the Vehicle:
   • Set the power mode to VEHICLE OFF.

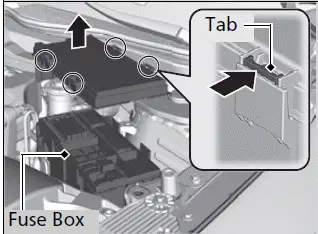

2. Locate the Fuse Box:
   • The fuse box is located near the brake fluid reservoir in the engine compartment.
   • Push the tabs to open the fuse box.
3. Identify the Fuse:
   • Fuse locations are shown on the fuse box cover.
   • Use the fuse number and box cover number to locate the specific fuse in question.

By following these steps, you can identify and replace any blown fuses to restore the functionality of your vehicle's electrical devices.

• Fuse Locations
• Inspecting and Changing Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and check to see if any applicable fuse is blown.

■ Engine Compartment Fuse Box

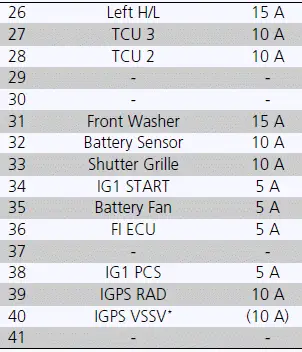

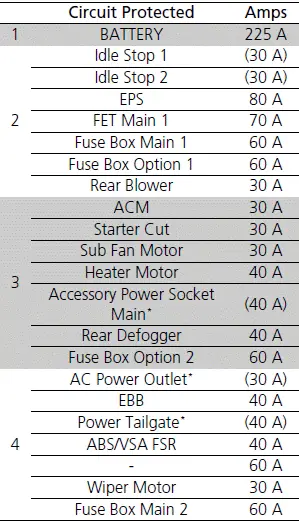

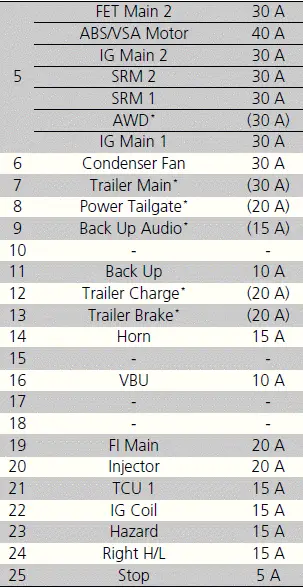

Circuit protected and fuse rating

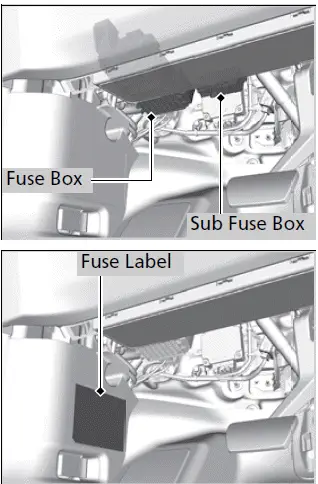

■ Driver's Side Interior Fuse Box

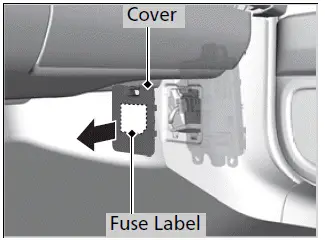

In the 2023 Honda Pilot, the driver's side interior fuse box is conveniently located under the dashboard. If you encounter an issue with any electrical device, this is one of the primary areas to check. The fuse locations are clearly indicated on a label found on the side panel of the fuse box. To identify the specific fuse you need to inspect or replace, simply match the fuse number to the corresponding number on the label. This makes it easier to troubleshoot and resolve electrical problems in your 2023 Honda Pilot efficiently.

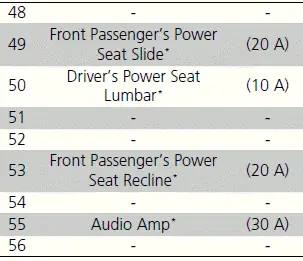

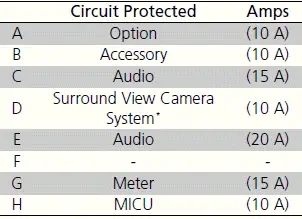

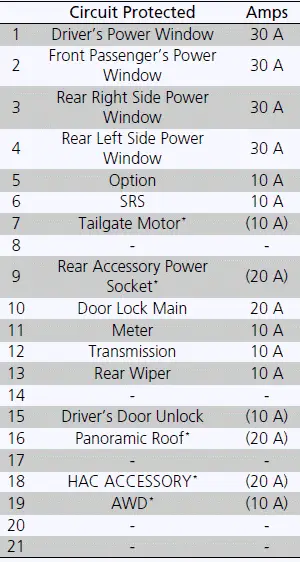

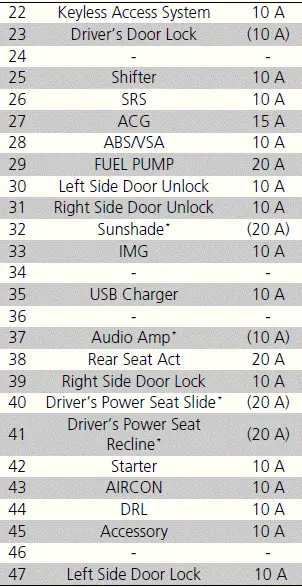

Circuit protected and fuse rating

Fuse Box

Sub Fuse Box

■ Passenger's Side Interior Fuse Box

Located on the lower side panel. Take off the cover to open.

Fuse locations are shown on the cover.

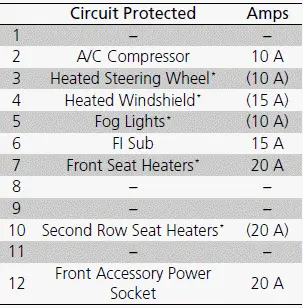

Circuit protected and fuse rating

Inspecting and Changing Fuses

To inspect and change fuses in your 2023 Honda Pilot, follow these steps:

1. Prepare the Vehicle -

   Set the power mode to VEHICLE OFF.
   Turn off the headlights and all accessories.


2. Access the Fuse Box - Remove the fuse box cover.
3. Inspect the Fuse -

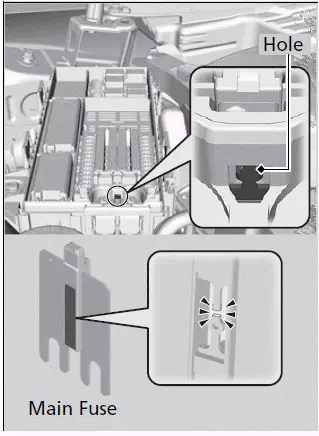

   Check the main fuse in the engine compartment fuse box by looking through the hole.
   If the fuse is blown, it will need to be replaced by a dealer.

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.

Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

Replace a fuse with a spare fuse of the same specified amperage.

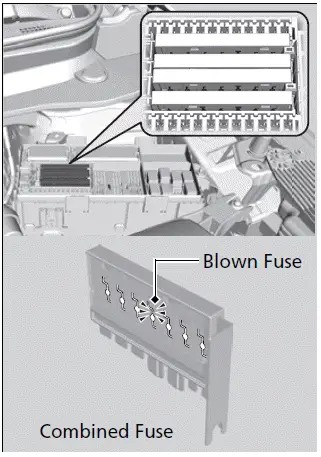

4. Check the combined fuses in the engine compartment fuse box.

• Look into the space between the fuses.
• If the fuse is blown, have it replaced by a dealer.

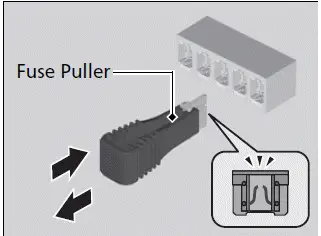

There is a fuse puller on the back of the engine compartment fuse box cover.

5. Inspect the small fuses in the engine compartment and the vehicle interior.

• If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
