Honda Pilot: HomeLink Unit Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / HomeLink Unit Removal and Installation

Removal/Installation

1. Roof Console Module - Remove

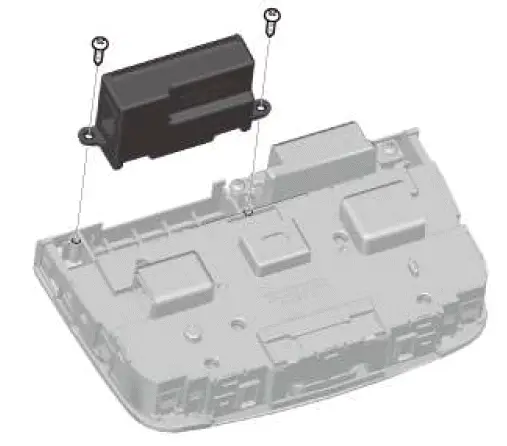

2. HomeLink Unit - Remove

Honda Pilot. Remove, Install, Replace, Check info

3. All Parts Removed - Install

  1. Install the parts in the reverse order of removal.

HomeLink Unit Removal and Installation

Removal and Installation

1. HomeLink Unit - Remove

Honda Pilot. Remove, Install, Replace, Check info

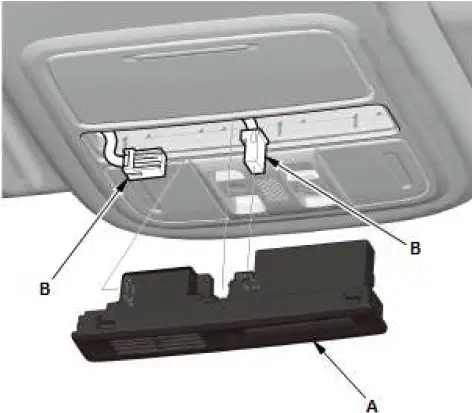

  1. Pull out the HomeLink module (A).
  2. Disconnect the connectors (B), then remove the HomeLink module.

Honda Pilot. Remove, Install, Replace, Check info

  1. Remove the front ANC/active sound control microphone (A).

Honda Pilot. Remove, Install, Replace, Check info

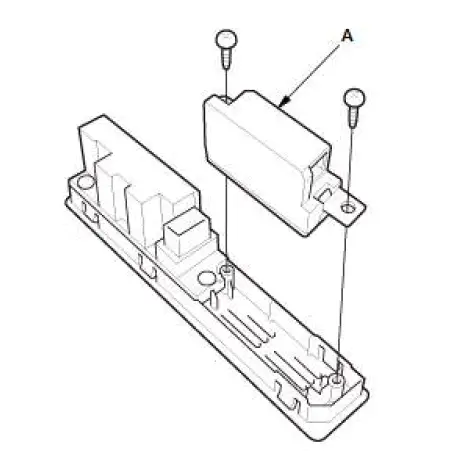

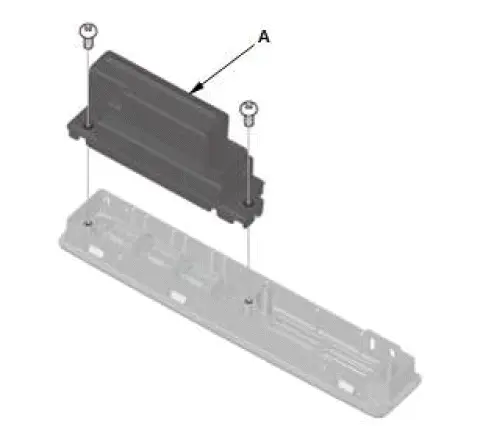

  1. Remove the HomeLink unit (A).

2. All Parts Removed - Install

  1. Install the parts in the reverse order of removal.
