Honda Pilot: Interior Light Switch Removal, Installation, and Test

Removal/Installation

1. Front Individual Map Light - Remove

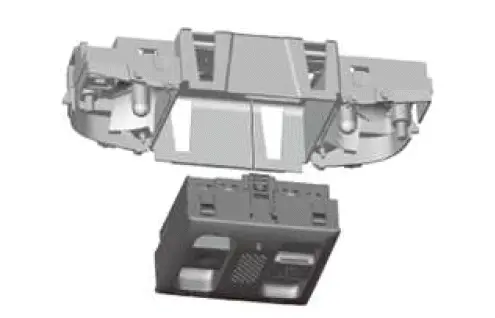

2. Interior Light Switch - Remove

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Test

1. Interior Light Switch - Test

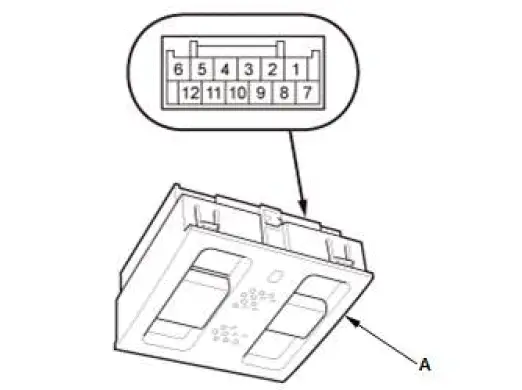

NOTE: The interior light switch (A) switches the front individual map light OFF and DOOR positions.

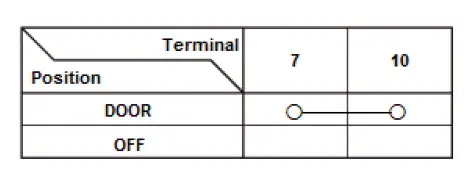

1. Check for continuity between the terminals in each switch position according to the table.
2. If the continuity is not as specified the interior light switch is faulty; replace the interior light switch.
