Honda Pilot: Keyless/Power Door Locks/Security System Description - Control/Function

Door Lock Control

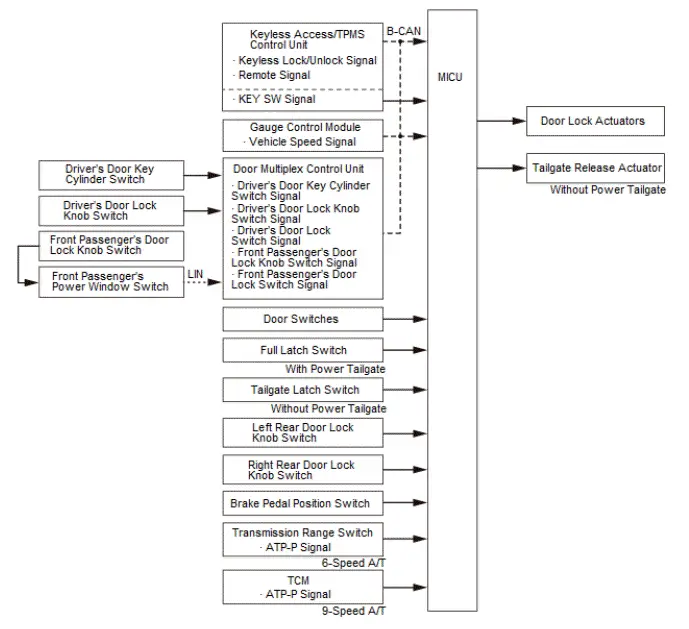

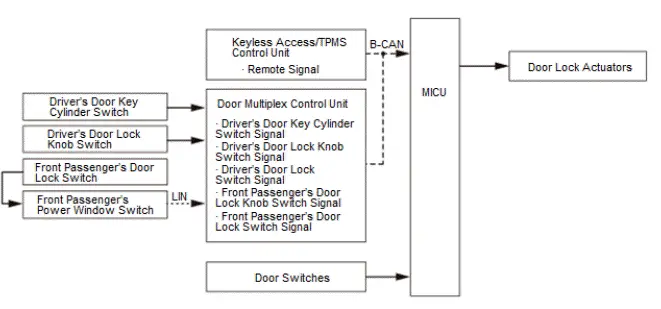

The door lock control function allows the MICU to detect the status of various switch signals and control each actuator in order to lock and unlock the doors.

Tailgate Control (Without Power Tailgate)

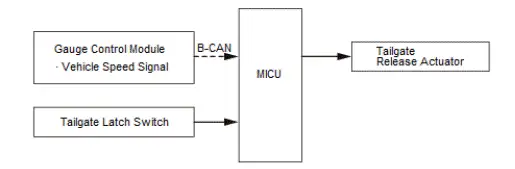

The tailgate control function allows the MICU to detect the status of various switch signals and control tailgate release actuator in order to lock and unlock the tailgate.

Keyless Door Lock Control

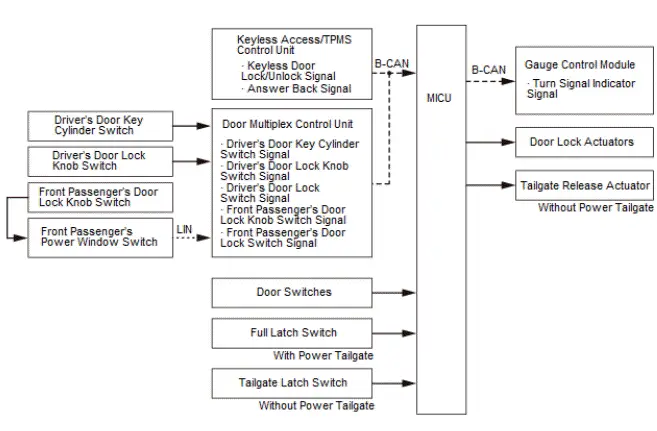

The remote can transmit a lock or unlock signal to the keyless access/TPMS control unit, which sends the keyless request to the MICU using the B-CAN, then the MICU controls the door lock actuators, tailgate release actuator* by the B-CAN signal, and various switch signal. The customization menu can also set the relock timer value.

*: Without power tailgate

Keyless Tailgate Lock Control (Without Power Tailgate)

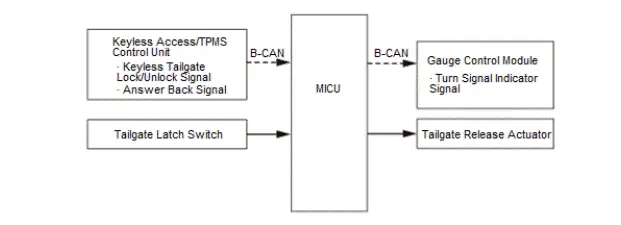

The remote can transmit a lock or unlock signal to the keyless access/TPMS control unit, which sends the keyless request to the MICU using the B-CAN. Then the MICU controls the tailgate release actuator by the B-CAN signal and tailgate latch switch signal.

The customization menu can also set the relock timer value.

Automatic Door Lock/Unlock Control

The automatic door lock/unlock control function allows the MICU to detect the status of B-CAN signals and various switch signals and controls each actuator in order to automatically lock/unlock the doors.

Automatic Door Lock Function:

• When the vehicle speed exceeds 9 mph (15 km/h). (Default setting)
• When the shift position is out of the P position.

Automatic Door Unlock Function:

• When the shift position is moved to the P position from other than P position. (Default setting)
• When the vehicle mode is changed to the OFF (LOCK) mode from the ON mode.

Customizing Function:

The locking method can be set as non-link, link to vehicle speed, link to shift position, or link to engine start/stop switch by the customizing function. For more information about customize options, refer to the Owner's manual.

Security Control

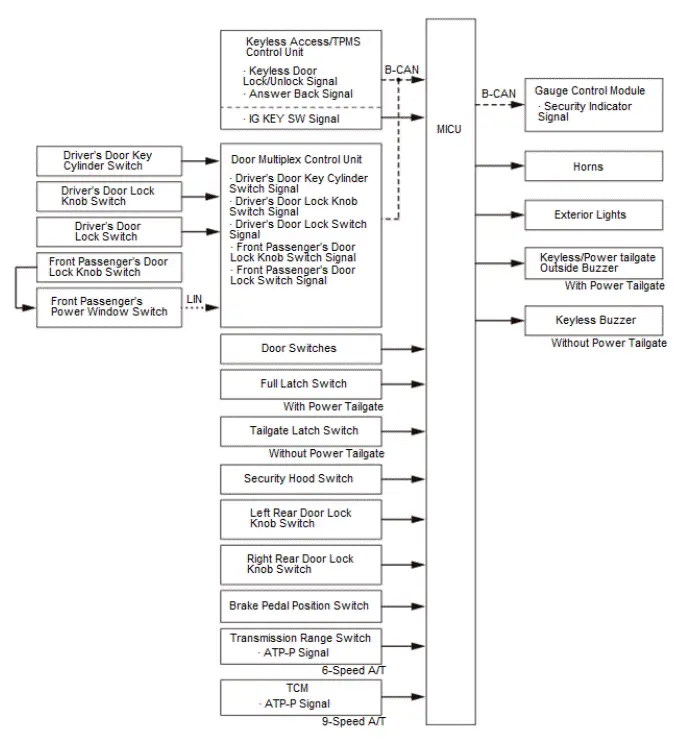

When the security alarm is set, the MICU sends the security set signal using the B-CAN.

Security system operating term

*1: With power tailgate
*2: Without power tailgate

Security Setting

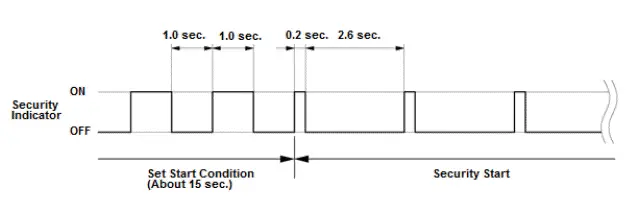

When the security alarm is set, the MICU sends the security set signal using the B-CAN. When the gauge control module receives a security set signal from the MICU, the security indicator flashes at a slower pace to indicate the system has armed.

Security Alarm

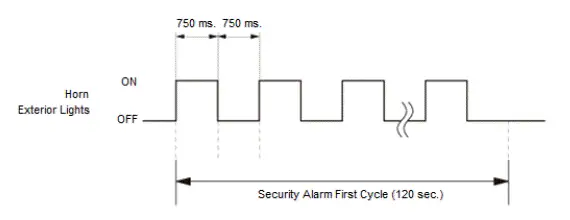

With the security system armed, manually opening the hood or the tailgate or moving the door lock knob to the unlock position activates the security alarm. Alternatively, the security alarm sounds, the headlights low beam, the parking lights, the taillights, the license plate lights, and the side marker lights blink, repeating this alarm (one cycle is 120 seconds). Even if you remove the 12 volt battery, the alarming state cannot be changed. The alarm starts again when reinstalling the 12 volt battery.

Answer Back Control

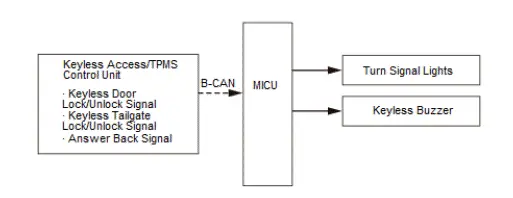

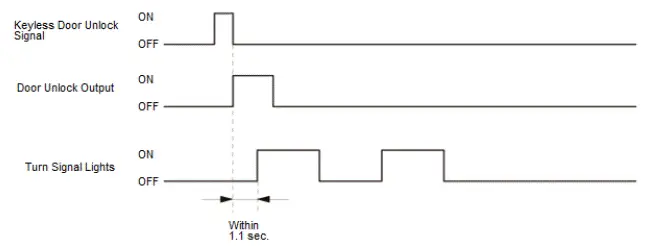

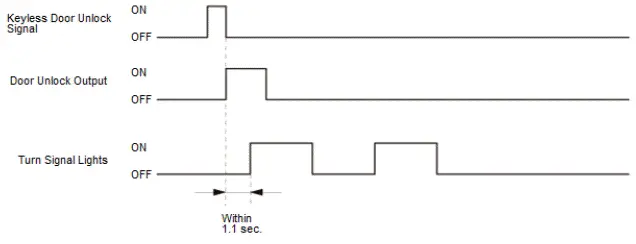

When using the remote, the MICU provides an answer back function to alert the client that the MICU received a lock or unlock command from the remote.

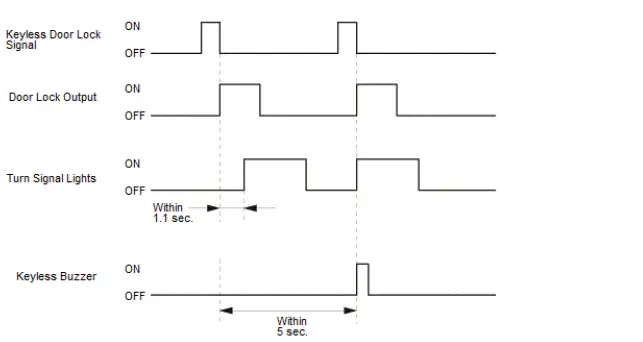

When the MICU receives a lock signal, the MICU sends signals once to the turn signal lights, and keyless buzzer will sound once when you press the Lock button again within 5 seconds.
