Honda Pilot: Moonroof Glass Removal and Installation

Removal/Installation

1. Moonroof Glass - Remove

1. Close the glass fully.
2. Slide the sunshade all the way back.

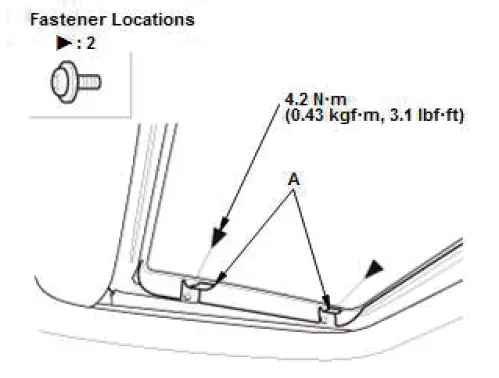

3. Lift up the link covers (A) as needed.
4. Remove the bolts with a TORX T25 bit.
5. Repeat on the opposite side.

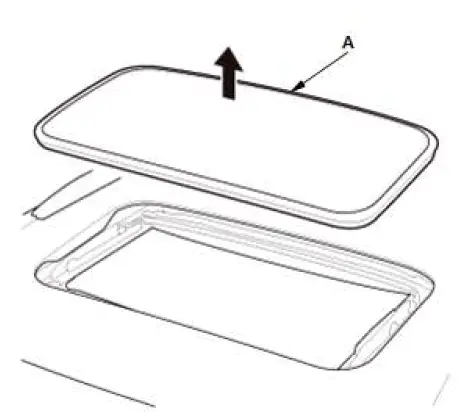

6. Remove the moonroof glass (A) by lifting it up.

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

3. Moonroof Glass Position - Adjust
