Honda Pilot: Over-Run Alternator Decoupler (OAD) Pulley Removal and Installation

Removal/Installation

1. Alternator - Remove

2. OAD Pulley Seal Cap - Remove

1. Clamp the alternator firmly in a vise.

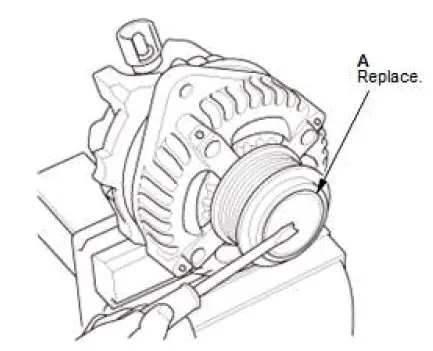

2. Remove the OAD pulley seal cap (A) by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

   NOTE: While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

3. OAD Pulley - Remove

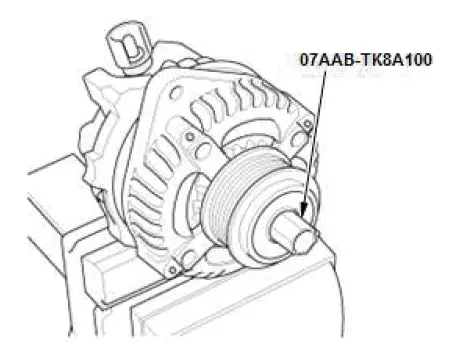

1. Insert the alternator OAD pulley holder into the OAD pulley.

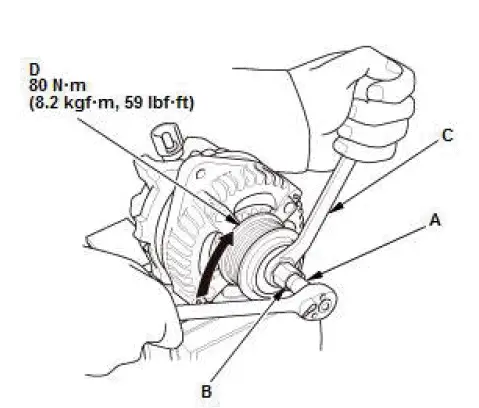

2. Place a 10 mm deep socket wrench (A) through center of the alternator OAD pulley holder (B), onto hex on the end of the alternator shaft.
3. Hold the alternator OAD pulley holder with a 17 mm wrench (C), then turn the alternator shaft clockwise.
4. Remove the OAD pulley (D).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

• When installing do not distort the OAD pulley seal cap.
• Make sure to check that the cap is installed securely.

Special Tool Required

• Alternator OAD Pulley Holder 07AAB-TK8A100
