Honda Pilot: Panoramic Glass Roof Frame Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Panoramic Glass Roof Frame Removal and Installation
Removal/Installation
NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
1. Headliner - Remove

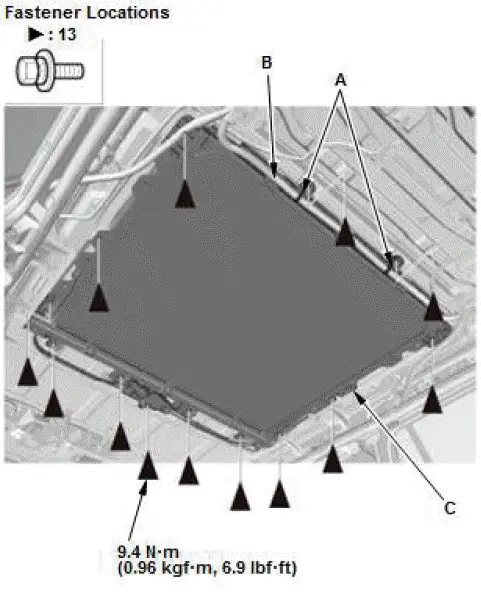

2. Sunshade Frame - Remove
- Remove the clips (A) of the rear drain tube (B).
- With the help of an assistant, and then remove the sunshade frame (C).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Panoramic Glass Roof Sunshade Motor Removal and Installation
Removal/Installation
NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
1. Headliner - Remove

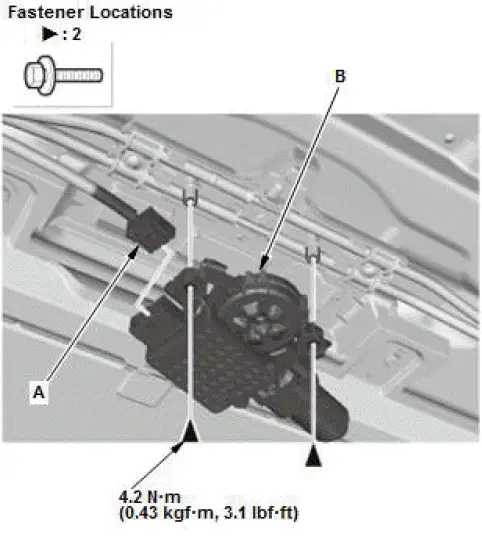

2. Sunshade Motor - Remove
- Disconnect the connector (A).
- Remove the screws, and then remove the sunshade motor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
4. Sunshade Control Unit - Reset
