Honda Pilot: Power Lumbar Support Switch Removal and Installation

Removal/Installation

1. Front Seat Recline Cover - Remove

NOTE: If you are removing the front seat recline cover, you do not need to remove the front seat.

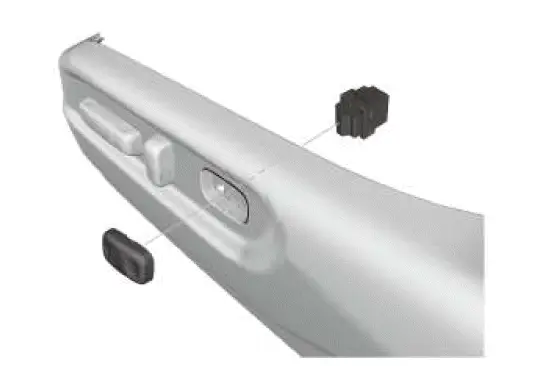

2. Power Lumbar Support Switch - Remove

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Power Mirror Actuator Removal and Installation

Removal/Installation

1. Mirror Holder - Remove

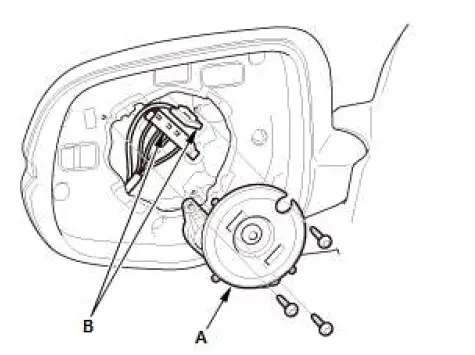

2. Power Mirror Actuator - Remove

1. Remove the screws with a TORX T15 bit.
2. Remove the power mirror actuator (A).
3. Disconnect the connectors (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Power Mirror Control Unit Removal and Installation

Removal/Installation

1. Driver's Door Panel - Remove

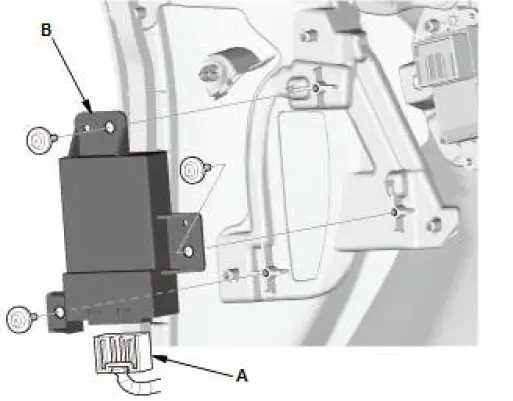

2. Power Mirror Control Unit - Remove

1. Disconnect the connector (A).
2. Remove the power mirror control unit (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
