Honda Pilot: Rear Differential Fluid Pressure Sensor Removal and Installation

Removal/Installation

NOTE:

• Clean the area around the rear differential fluid pressure sensor before removing.
• Unless otherwise indicated, illustrations used in the procedure are for left side.

1. Vehicle - Lift

2. Rear Differential Fluid Pressure Sensor - Remove

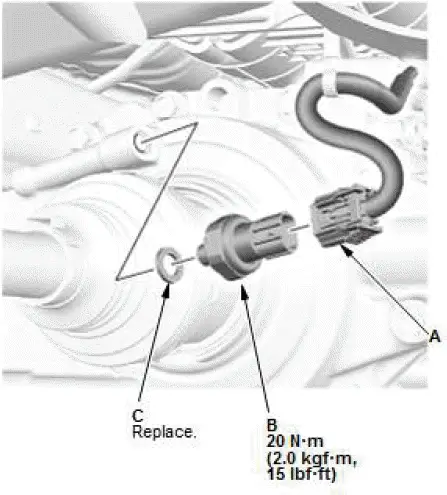

1. Disconnect the connector (A).
2. Remove the rear differential fluid pressure sensor (B) and the sealing washer (C).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Differential Mount Removal and Installation

NOTE: Tighten the rear differential front mount bolts and the rear differential rear mount bolts in the numbered sequence shown.

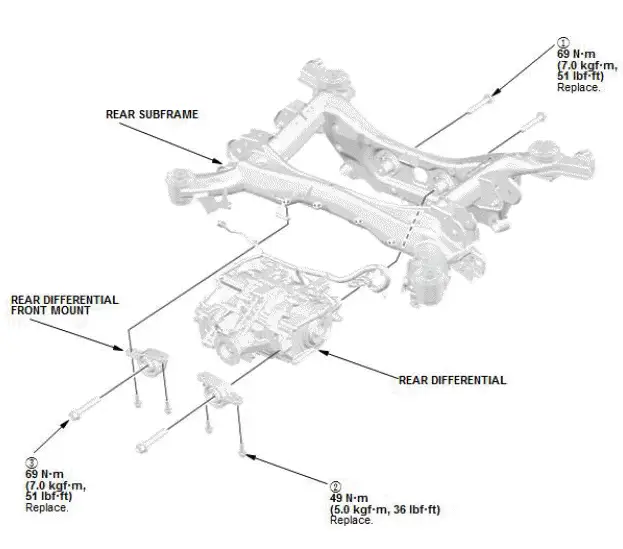

1. Rear Differential Mount - Exploded View

Exploded View
