Honda Pilot: Roof Antenna Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Headliner - Remove

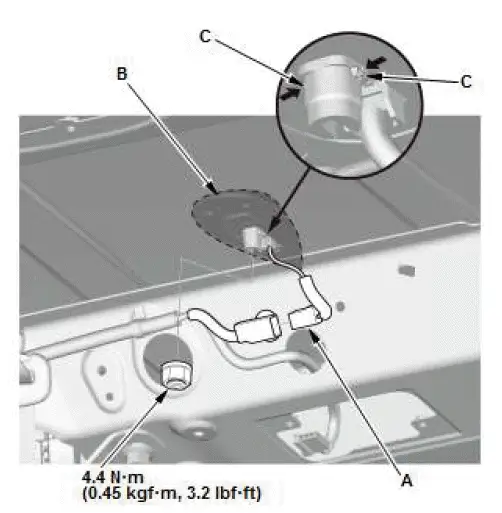

2. Roof Antenna - Remove

1. Disconnect the connector (A).
2. Remove the roof antenna (B) while pressing the tabs (C).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Roof Console Module Removal and Installation

Removal/Installation

1. Roof Console Module - Remove

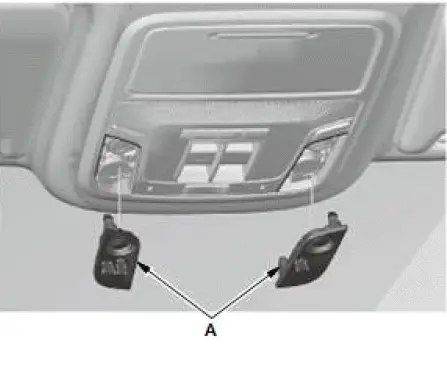

1. Carefully pry off the lenses (A).

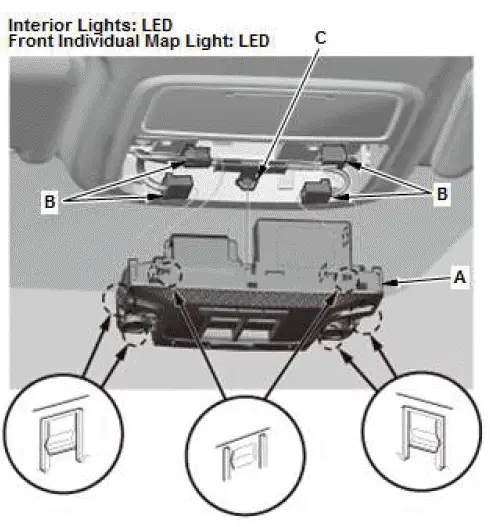

2. Remove the roof console module (A).
3. Disconnect the connectors (B) and the clip (C).

2. HomeLink Unit - Remove

3. Front ANC/Active Sound Control Microphone - Remove
