Honda Pilot: Side Sill Panel Removal and Installation

Removal

1. Front Wheel Arch Protector - Remove

1. Remove the front wheel arch protector as needed.

2. Front Inner Fender - Remove

1. Remove the front inner fender as needed.

3. Rear Wheel Arch Protector - Remove

1. Remove the rear wheel arch protector as needed.

4. Rear Inner Fender - Remove

1. Remove the rear inner fender as needed.

5. Side Sill Panel - Remove

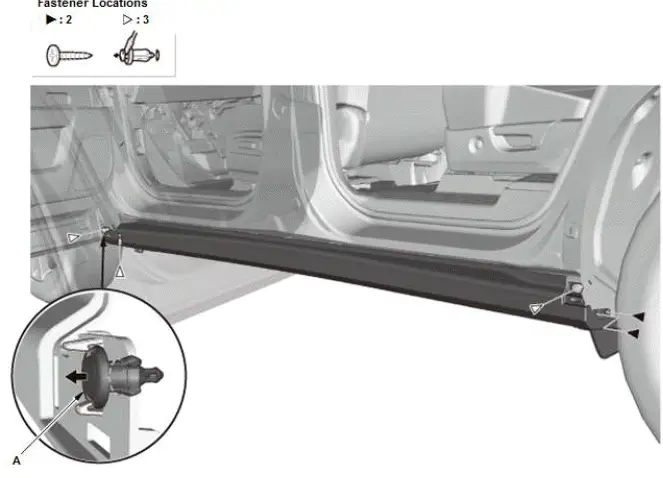

1. Remove the screws and the clips.

   NOTE: The clip (A) will stay in the side sill panel.

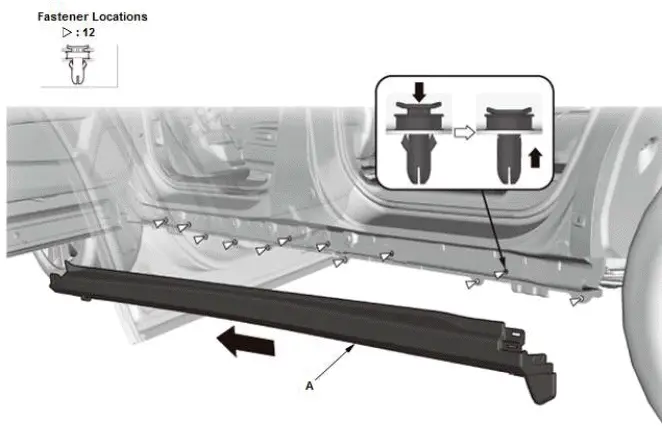

2. Slide the side sill panel (A) forward, and remove it.

   NOTE: The side clips will stay in the body.

3. Remove the side clips from the body by pushing them.

Installation

1. Side Sill Panel - Install

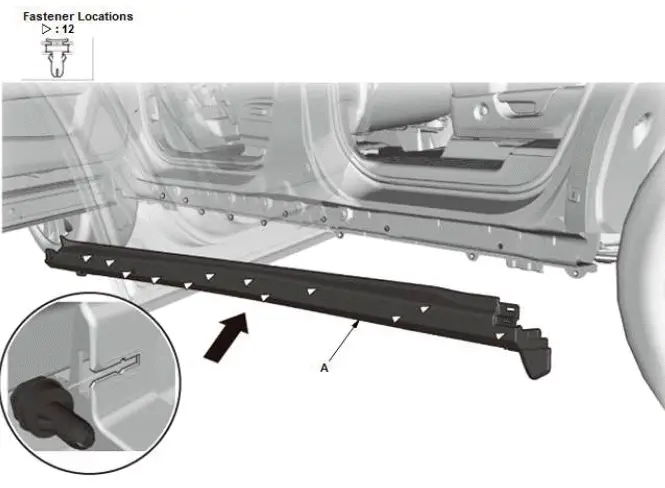

1. Install the side clips on the side sill panel (A).

2. Hold the panel up, and fit all the side clips into the holes in the body. Push on the panel until the clips snap into place.

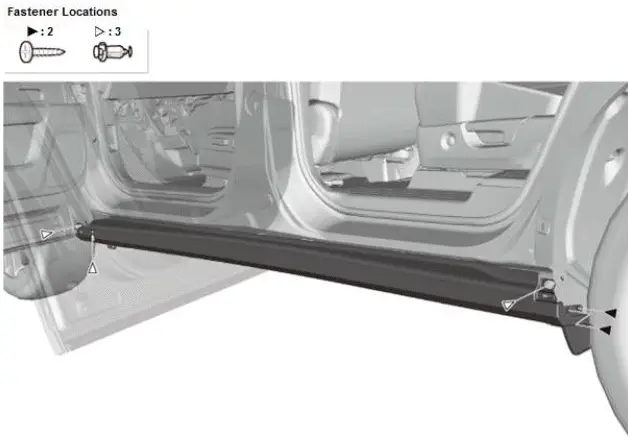

3. Install the screws and the clips.

2. Rear Inner Fender - Install

3. Rear Wheel Arch Protector - Install

4. Front Inner Fender - Install

5. Front Wheel Arch Protector - Install

Side Turn Signal Light Removal and Installation

Removal/Installation

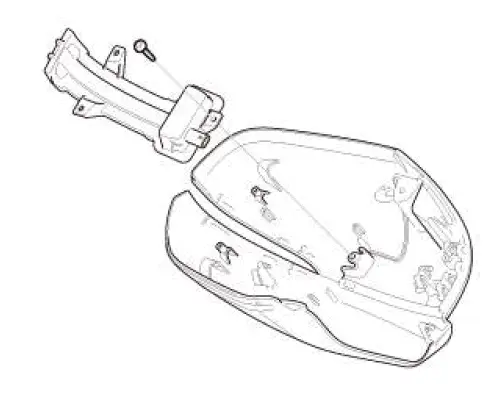

1. Mirror Housing Cover - Remove

2. Side Turn Signal Light - Remove

Side Turn Signal Light: LED

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
