Honda Pilot: SRS Component Location Index

For relationships between signals in a system, refer to System Diagram.

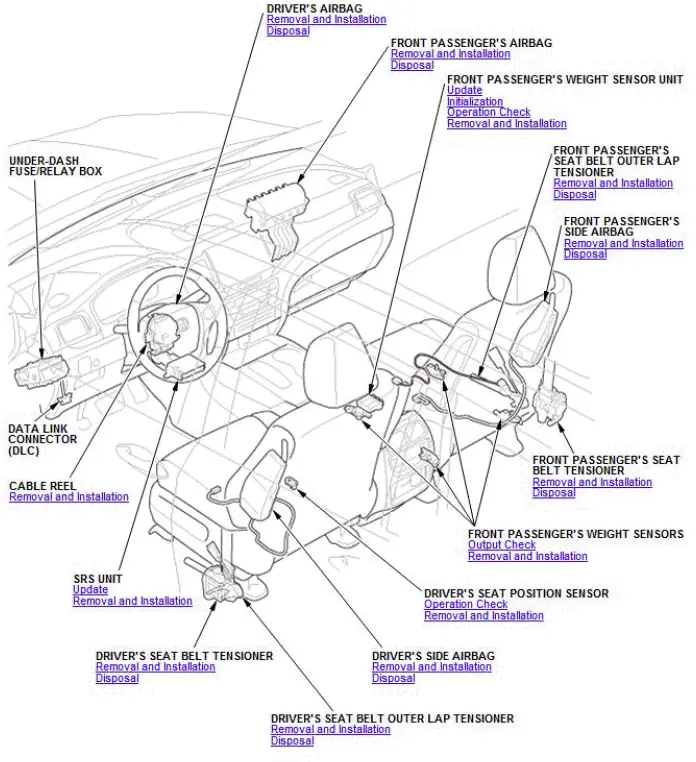

• UNDER-DASH FUSE/RELAY BOX
• DRIVER'S AIRBAG
• FRONT PASSENGER'S AIRBAG
• FRONT PASSENGER'S WEIGHT SENSOR UNIT
• FRONT PASSENGER'S SEAT BELT OUTER LAP TENSIONER
• FRONT PASSENGER'S SIDE AIRBAG
• FRONT PASSENGER'S SEAT BELT TENSIONER
• FRONT PASSENGER'S WEIGHT SENSORS
• DRIVER'S SEAT POSITION SENSOR
• DRIVER'S SIDE AIRBAG
• DRIVER'S SEAT BELT OUTER LAP TENSIONER
• DRIVER'S SEAT BELT TENSIONER
• SRS UNIT
• CABLE REEL
• DATA LINK CONNECTOR (DLC)

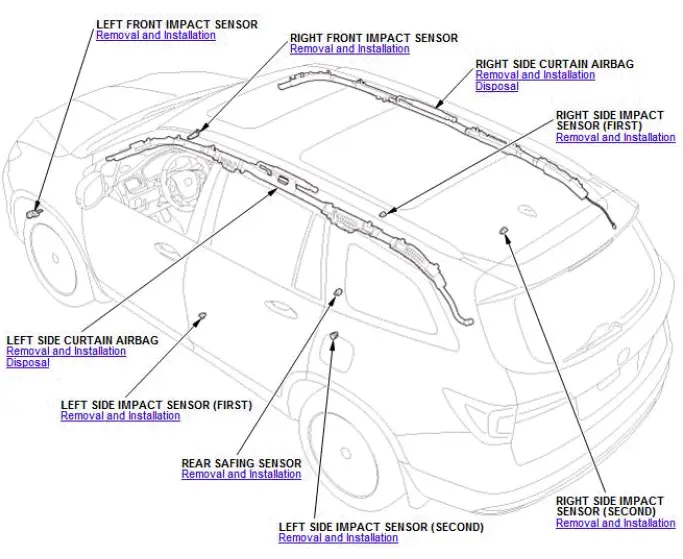

• LEFT FRONT IMPACT SENSOR
• RIGHT FRONT IMPACT SENSOR
• RIGHT SIDE CURTAIN AIRBAG
• RIGHT SIDE IMPACT SENSOR (FIRST)
• RIGHT SIDE IMPACT SENSOR (SECOND)
• LEFT SIDE IMPACT SENSOR ( SECOND)
• LEFT SIDE IMPACT SENSOR (FIRST)
• LEFT SIDE CURTAIN AIRBAG

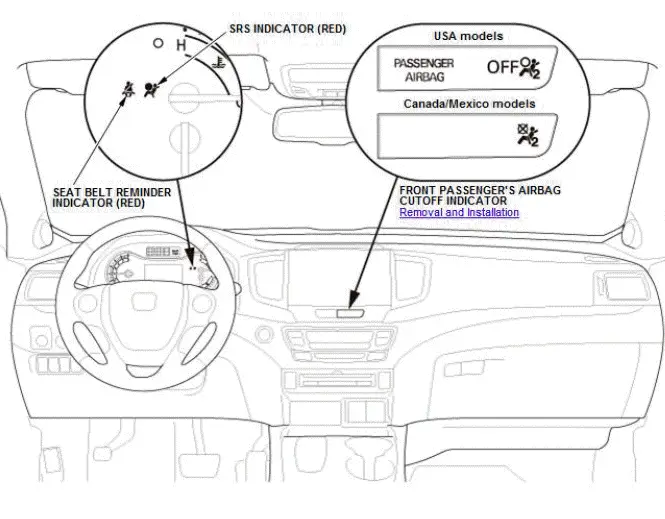

• SRS INDICATOR (RED)
• SEAT BELT REMINDER INDICATOR (RED)
• FRONT PASSENGER'S AIRBAG CUTOFF INDICATOR
