Honda Pilot: Transmission Housing Selector Control Shaft Bearing Replacement

Replacement

1. Selector Control Shaft Bearing - Remove

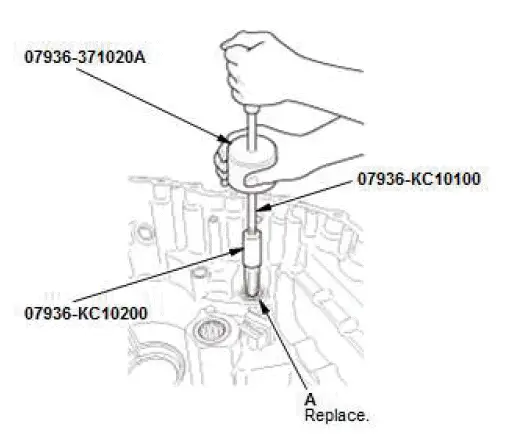

1. Remove the selector control shaft bearing (A) using the 15 mm remover shaft, the 15 mm remover head, and the slide hammer.

2. Selector Control Shaft Bearing - Install

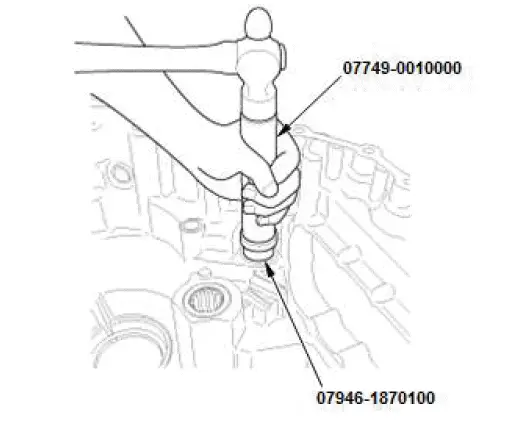

1. Install the selector control shaft bearing until it bottoms using the 15 x 135L driver handle and the 28 x 30 mm bearing driver attachment.

Special Tool Required

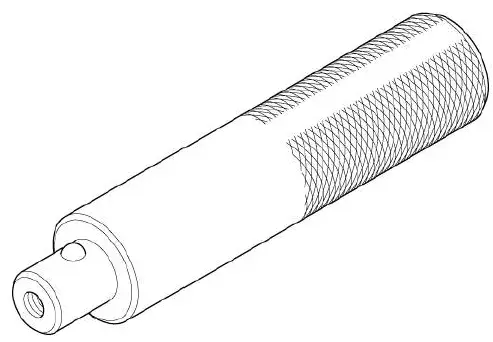

• Driver Handle, 15 x 135L 07749-0010000

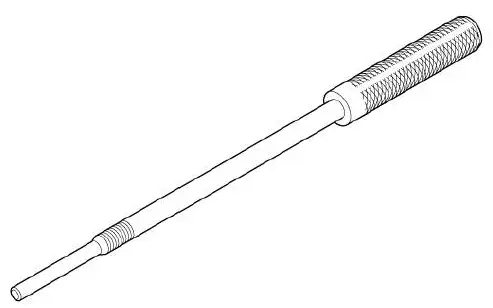

• Remover Shaft, 15 mm 07936-KC10100

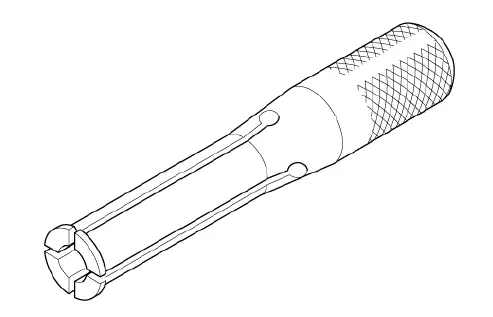

• Remover Head, 15 mm 07936-KC10200

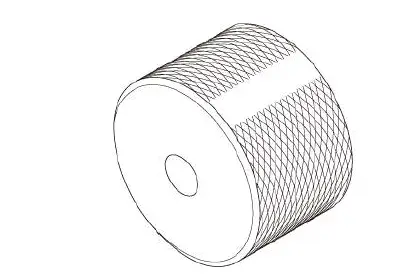

• Slide Hammer 07936-371020A

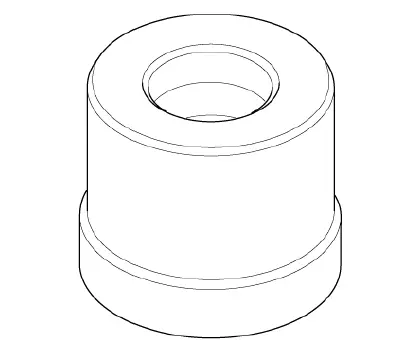

• Bearing Driver Attachment, 28 x 30 mm 07946-1870100
