Honda Pilot: Vanity Mirror Light Removal, Installation, and Test

Removal/Installation

NOTE: The vanity mirror light is built into the sunvisor.

1. Vanity Mirror Light - Remove

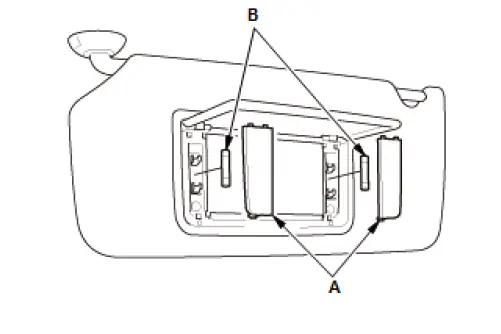

Vanity Mirror Light: 1CP

1. Carefully pry off the lenses (A).
2. Remove the bulb(s) (B) from the vanity mirror light.

2. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Test

1. Sunvisor - Remove

2. Vanity Mirror Light - Test

NOTE: When doing the vanity mirror light test, install the bulb correctly.

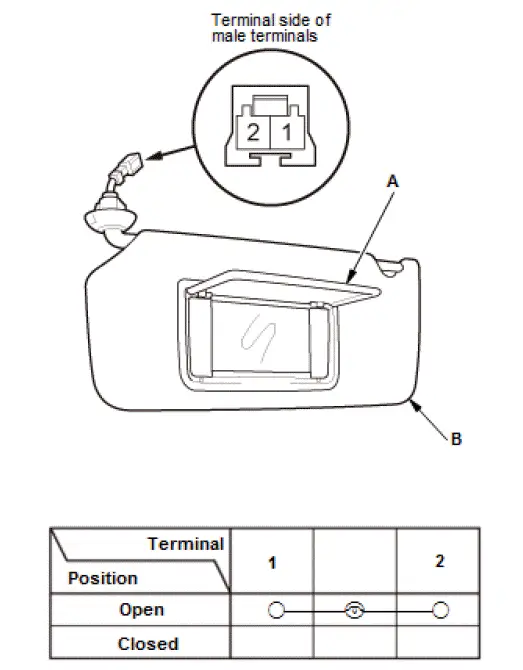

1. Check for continuity between the terminals in each vanity mirror cover (A) position according to the table.
2. If the continuity is not as specified, replace the bulb(s) or the sunvisor (B).
