Honda Pilot: 2nd Row Center Console Removal and Installation

Removal/Installation

1. 2nd Row Center Console - Remove

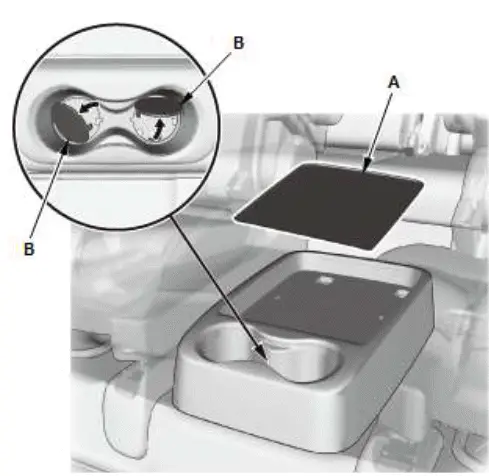

1. Remove the rubber mat (A) and caps (B).

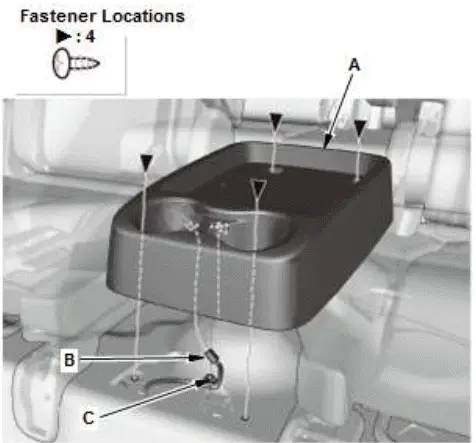

2. Remove the screws, and then remove the 2nd row center console (A).
3. Disconnect the connector (B) and harness clip (C).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
