Honda Pilot: 12 Volt Battery Duct Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / 12 Volt Battery Duct Removal and Installation
Removal/Installation
1. 12 Volt Battery Box - Remove
2. Front Bumper - Remove

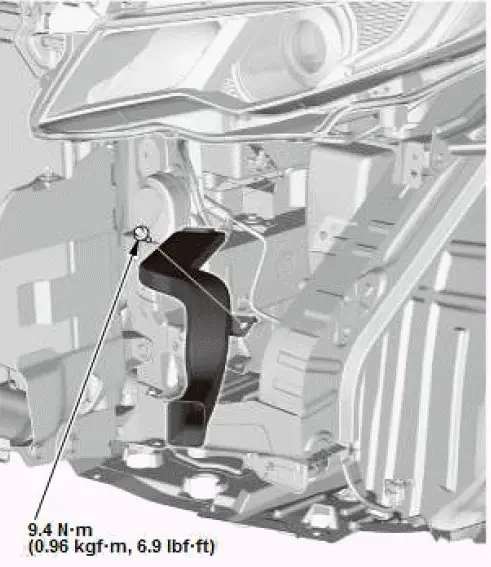

3. 12 Volt Battery Duct - Remove
- Install the parts in the reverse order of removal.
12 Volt Battery Fan Motor Removal and Installation
Removal/Installation
1. 12 Volt Battery - Remove

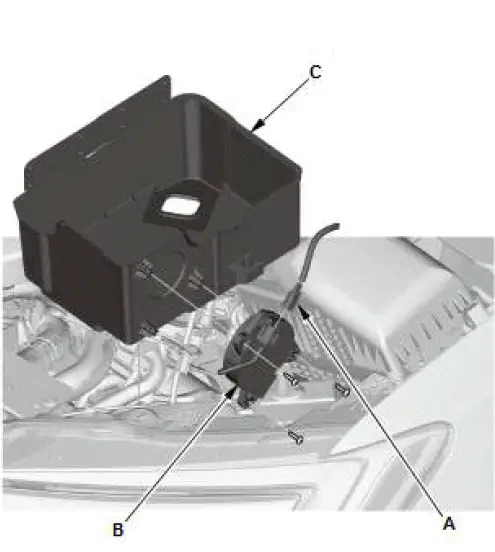

2. 12 Volt Battery Fan Motor - Remove
- Disconnect the connector (A).
- Remove the 12 volt battery fan motor (B) from the 12 volt battery box (C).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
