Honda Pilot: A/T Differential Carrier Bearing Replacement

Replacement

NOTE:

• The carrier bearing and the carrier bearing outer race should be replaced as a set.
• Inspect and adjust the carrier bearing preload whenever the bearing is replaced.
• Check the bearing for wear and rough rotation. If the bearing is OK, removal is not necessary.
• Unless otherwise indicated, illustrations used in the procedure are for AWD.

1. Carrier Bearing - Remove

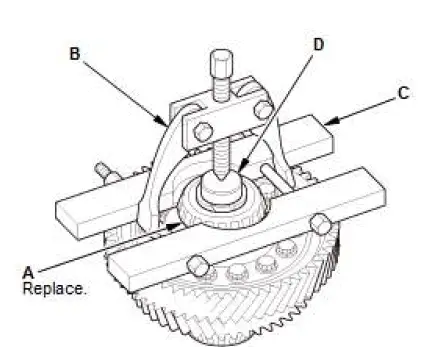

1. Remove the carrier bearing (A) using a commercially available bearing puller (B), a bearing separator (C), and a spacer (D).

2. Carrier Bearing - Install

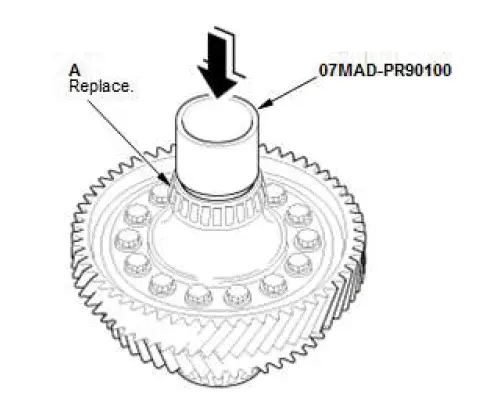

1. Install the carrier bearing (A) until it bottoms using the 45 x 55 mm installer attachment and a press.

Special Tool Required

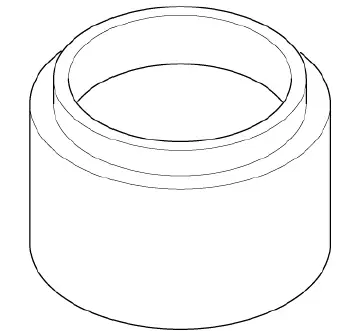

• Installer Attachment, 45 x 55 mm 07MAD-PR90100
