Honda Pilot: Accelerator Pedal Module Removal and Installation

Removal/Installation

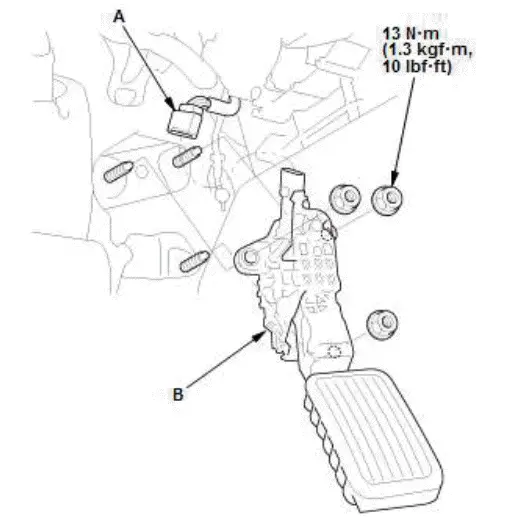

1. Accelerator Pedal Module - Remove

1. Disconnect the connector (A).
2. Remove the accelerator pedal module (B).

   NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
