Honda Pilot: ACC Combination Switch Removal, Installation, and Test

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. ACC Combination Switch - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

1. ACC Combination Switch - Test

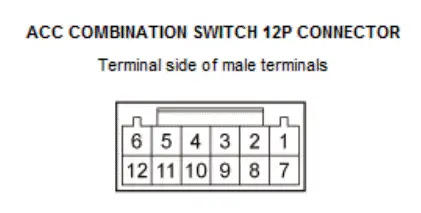

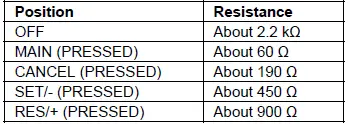

1. Measure the resistance between ACC combination switch 12P connector terminals No. 2 and No. 5 according to the table.

   If there is no resistance in one or more positions, replace the ACC combination switch.

2. Measure the resistance between ACC combination switch 12P connector terminals No. 3 and No. 4 according to the table.

   If there is no resistance in one or more positions, replace the ACC combination switch.
