Honda Pilot: Alternator Removal and Installation

Removal/Installation

1. 12 Volt Battery Terminal - Disconnect

2. Drive Belt - Remove

3. Drive Belt Auto-Tensioner - Remove

4. A/C Condenser Fan Shroud Assembly - Remove

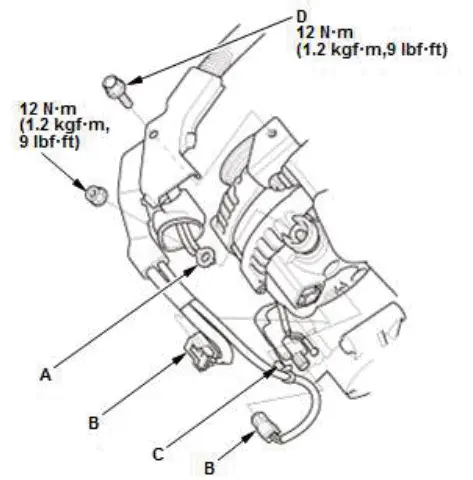

5. Connector and Positive Cable (Alternator) - Disconnect

1. Disconnect the positive cable (A) and the connectors (B).
2. Remove the harness clip (C) and the bolt (D).

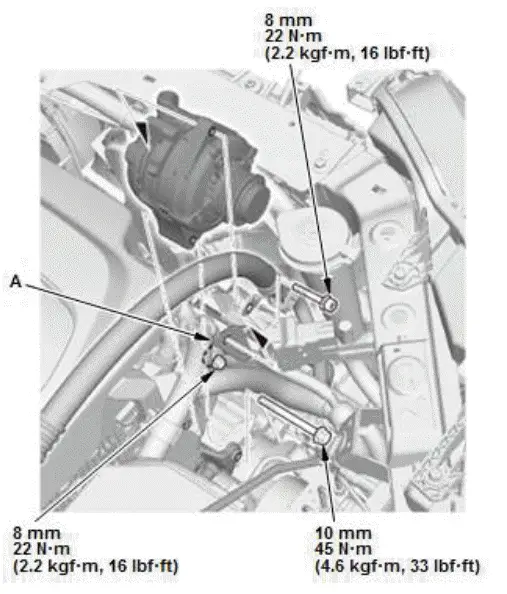

6. Alternator - Remove

NOTE: Remove the alternator bracket (A) as needed.

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

• If the alternator bracket is removed, install the alternator bracket.
• Make sure the crimped side of the ring terminal faces away from the alternator when you connect the positive cable.
