Honda Pilot: Ambient Light Removal, Installation, and Test

Removal/Installation

1. Roof Console Module - Remove

2. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Test

1. Ambient Light - Test

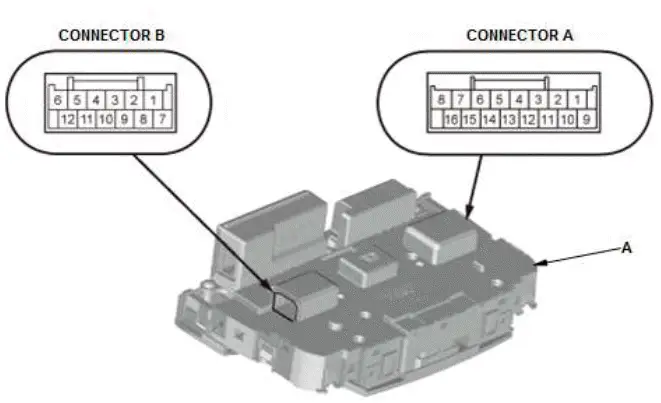

NOTE: The ambient light is built into the roof console module (A).

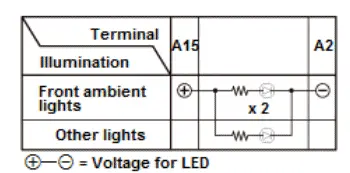

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, the front ambient light is faulty; replace the roof console module.

Ambient Light Removal, Installation, and Test

Removal/Installation

1. Interior Light Switch - Remove

NOTE: The front ambient light is built into the interior light switch.

2. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Test

1. Ambient Light - Test

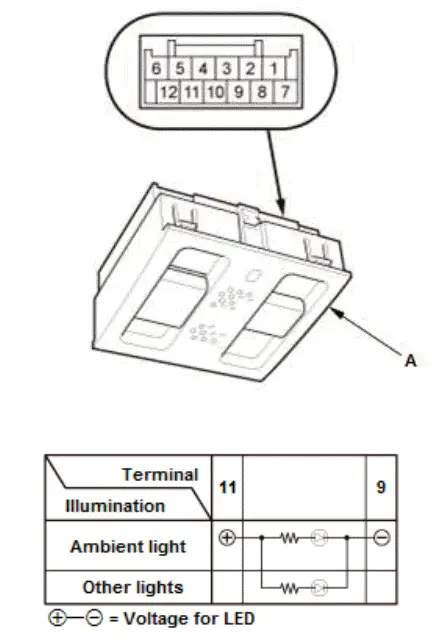

NOTE: The ambient light is built into the interior light switch (A).

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified the interior light switch is faulty; replace the interior light switch.
