Honda Pilot: AM/FM Antenna Amplifier Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / AM/FM Antenna Amplifier Removal and Installation
Removal/Installation
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
1. Right Side C Pillar Trim - Remove

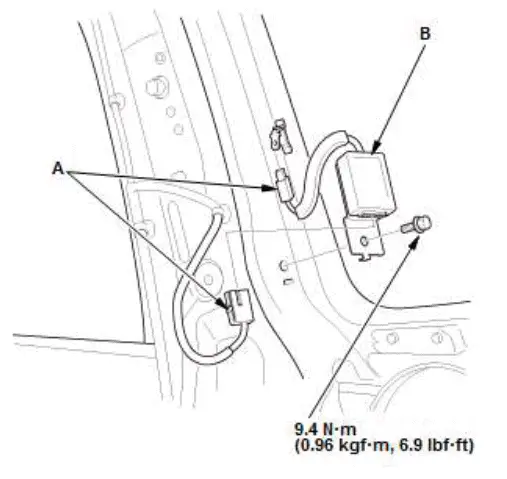

2. AM/FM Antenna Amplifier - Remove
- Disconnect the connectors (A).
- Remove the AM/FM antenna amplifier (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
