Honda Pilot: ATF Filter Removal and Installation

Removal/Installation

NOTE: The ATF filter is not a scheduled maintenance item. Replace the filter only if it is leaking, or contaminated, or when the transmission is being overhauled or replaced with a remanufactured unit.

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove

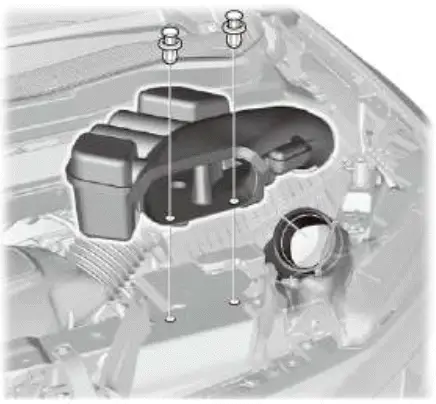

3. Air Cleaner - Remove

4. 12 Volt Battery - Remove

5. 12 Volt Battery Box - Remove

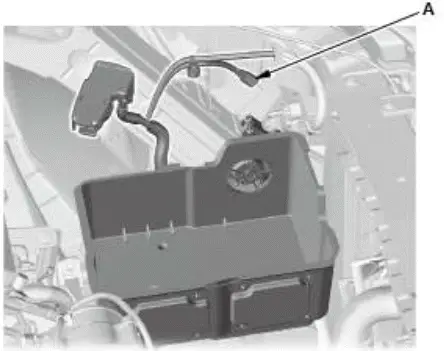

1. Disconnect the connector (A).

6. 12 Volt Battery Duct - Remove

7. 12 Volt Battery Base - Remove

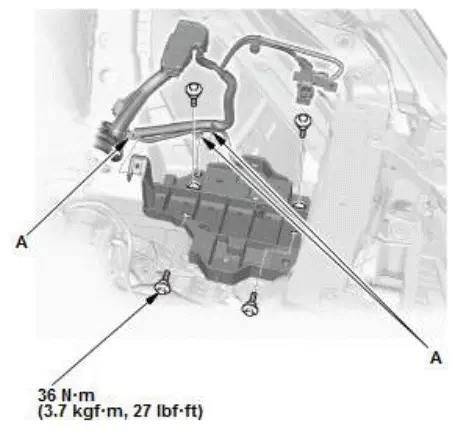

1. Remove the harness clamps (A).

8. ATF Filter - Remove

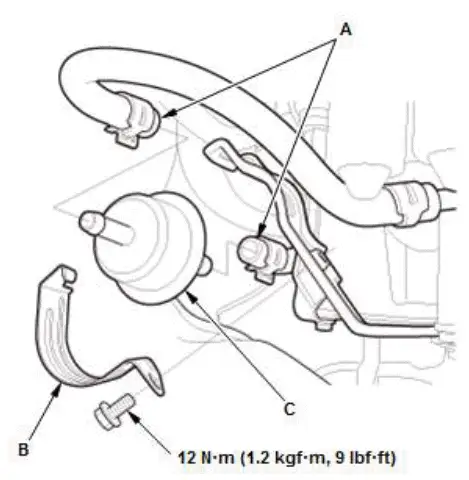

1. Disconnect the ATF hoses (A).
2. Remove the ATF filter holder (B) and the ATF filter (C).

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

• Make sure the ATF hoses and the clips are properly installed.
• If necessary, add ATF to the proper level.
