Honda Pilot: Audio Unit Connector for Inputs and Outputs

Connector Index

Audio Unit Connector A (24P)
Audio Unit Connector C (24P)
Audio Unit Connector D (12P)
Audio Unit Connector E (3P)
Audio Unit Connector F (5P)

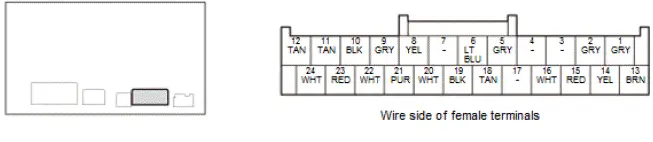

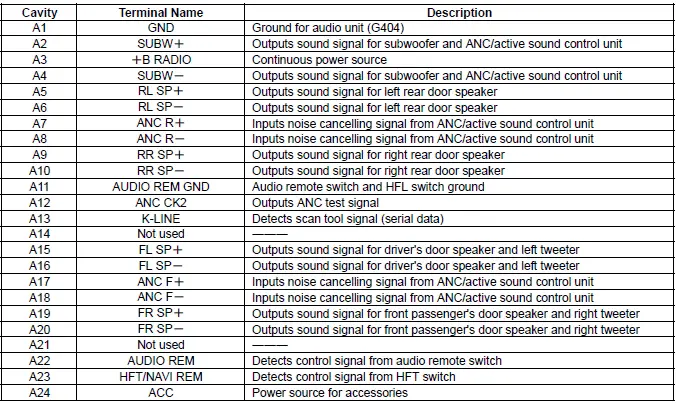

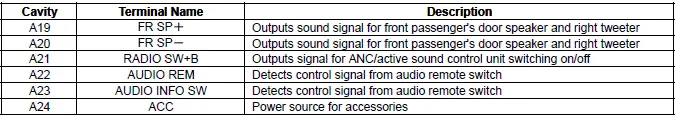

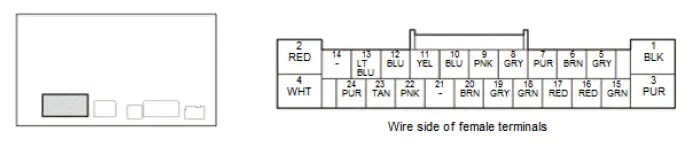

AUDIO UNIT CONNECTOR A (24P)

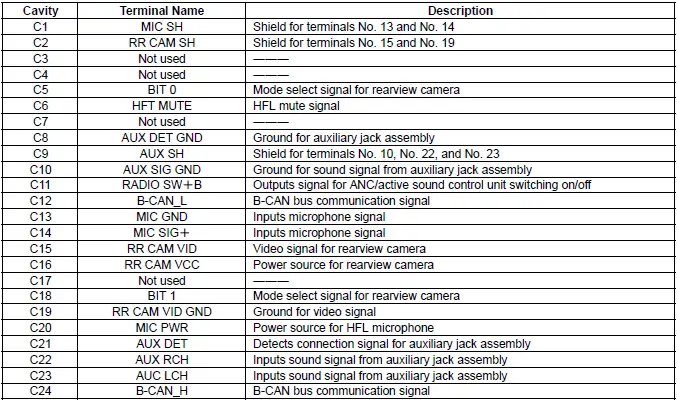

AUDIO UNIT CONNECTOR C (24P)

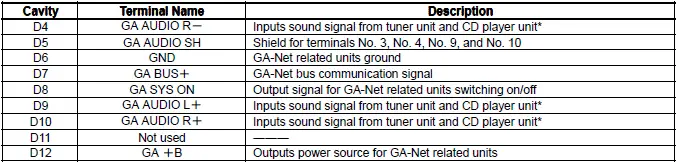

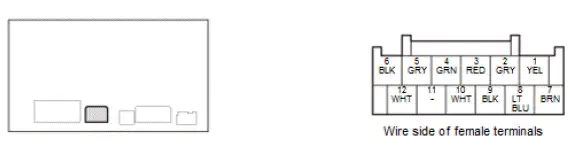

AUDIO UNIT CONNECTOR D (12P)

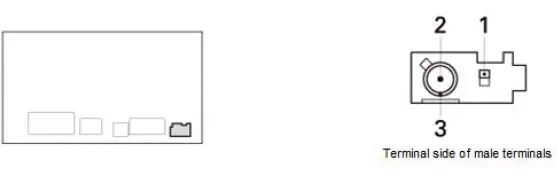

AUDIO UNIT CONNECTOR E (3P)

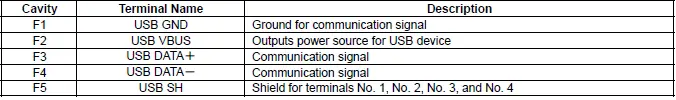

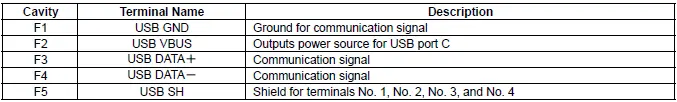

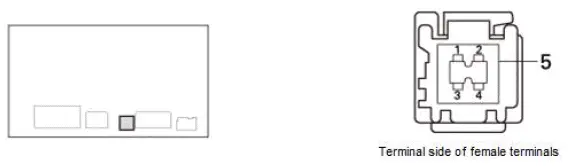

AUDIO UNIT CONNECTOR F (5P)

Audio Unit Connector for Inputs and Outputs

Connector Index

Audio Unit Connector A (24P)
Audio Unit Connector B (20P)
Audio Unit Connector C (24P)
Audio Unit Connector D (12P)
Audio Unit Connector E (8P)
Audio Unit Connector F (5P)
Audio Unit Connector G (5P)
Audio Unit Connector H (24P)
Audio Unit Connector J (28P)
Audio Unit Connector K (5P)
Audio Unit Connector L (2P)
Audio Unit Connector M (2P)

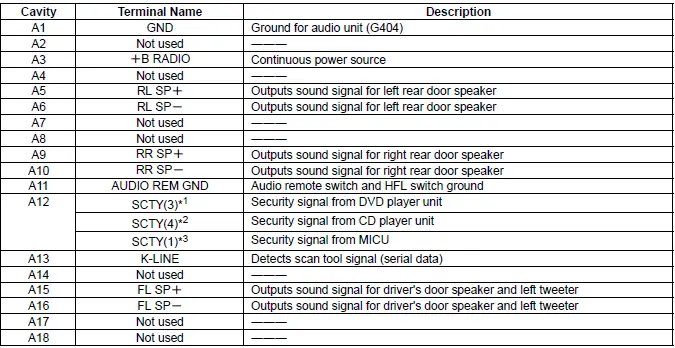

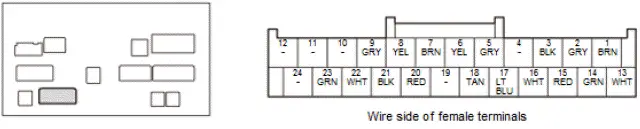

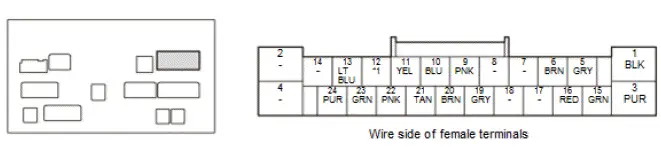

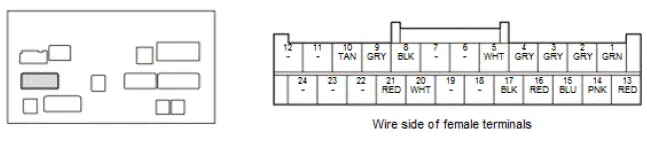

AUDIO UNIT CONNECTOR A (24P)

*1: LT GRN (With CD player unit), BRN (Without CD player unit)

*1: With rear entertainment
*2: With CD player unit
*3: Without CD player unit

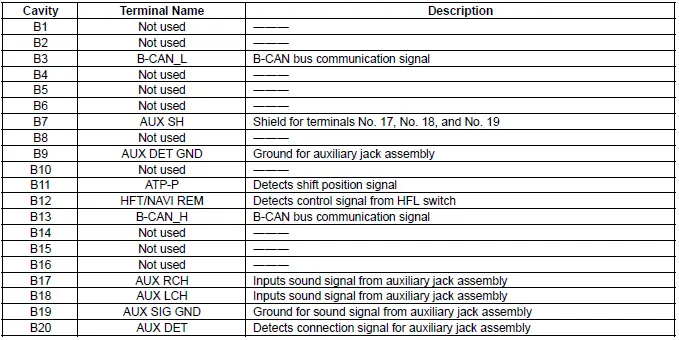

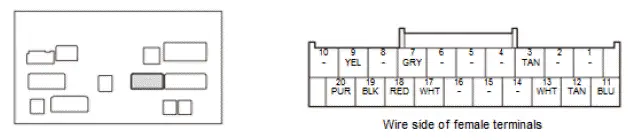

AUDIO UNIT CONNECTOR B (20P)

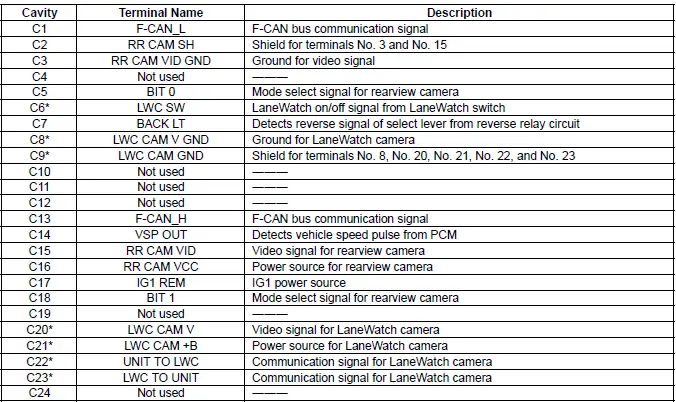

AUDIO UNIT CONNECTOR C (24P)

*: With LaneWatch

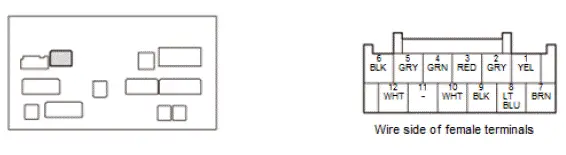

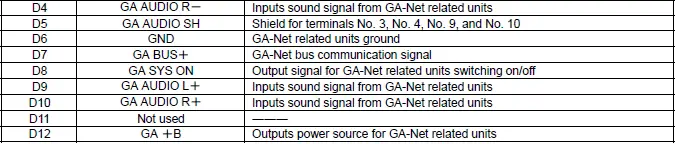

AUDIO UNIT CONNECTOR D (12P)

*: With CD player unit

*: With CD player unit

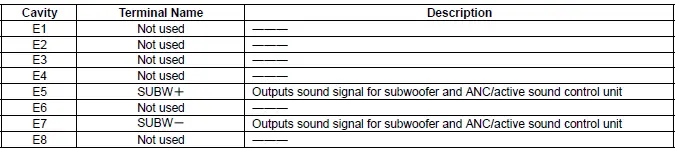

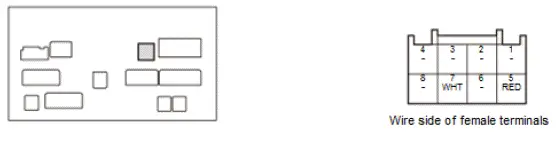

AUDIO UNIT CONNECTOR E (8P)

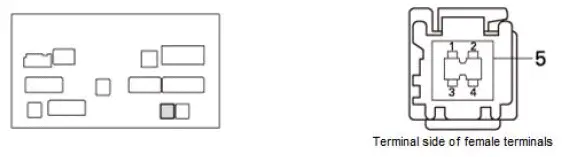

AUDIO UNIT CONNECTOR F (5P)

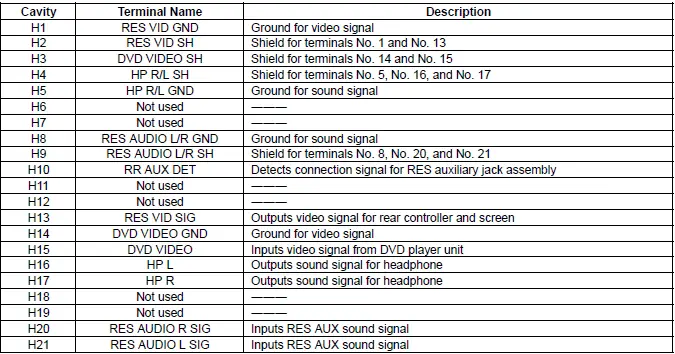

AUDIO UNIT CONNECTOR H (24P) (with rear entertainment)

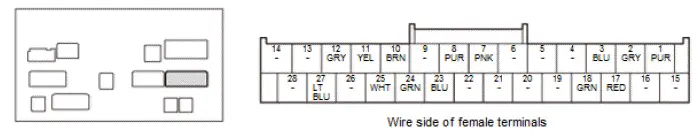

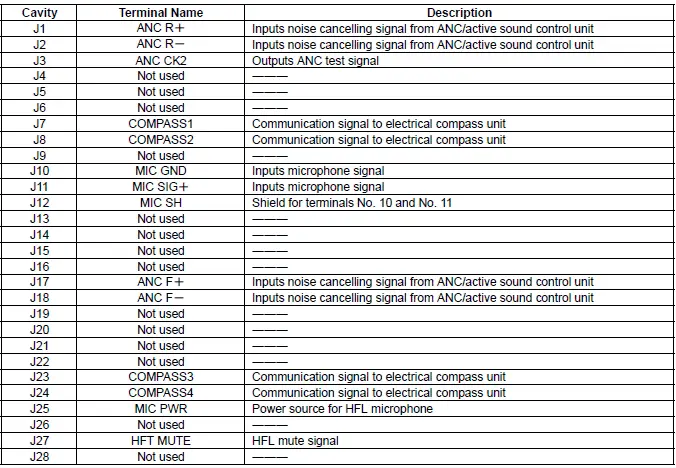

AUDIO UNIT CONNECTOR J (28P)

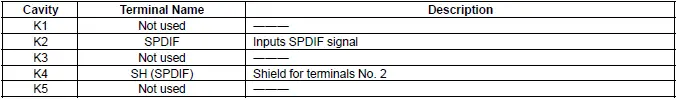

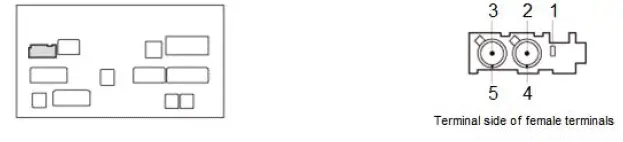

AUDIO UNIT CONNECTOR K (5P) (with rear entertainment)

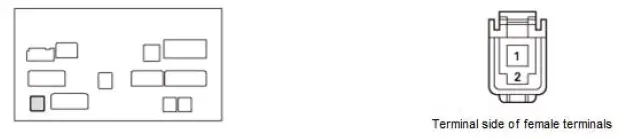

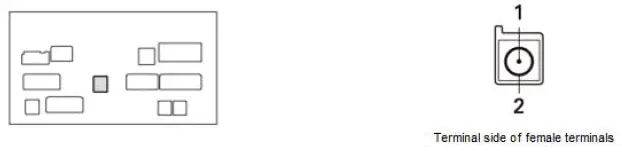

AUDIO UNIT CONNECTOR L (2P) (with GPS antenna)

AUDIO UNIT CONNECTOR M (2P) (with XM)
