Honda Pilot: Audio-Navigation Unit Connector for Inputs and Outputs

Connector Index

Audio-Navigation Unit Connector A (24P) (with stereo amplifier)
Audio-Navigation Unit Connector A (24P) (without stereo amplifier)

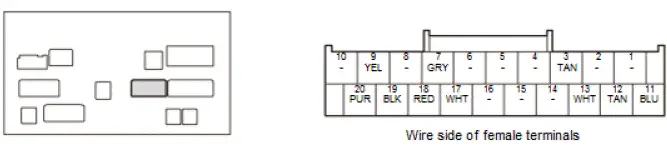

Audio-Navigation Unit Connector B (20P)

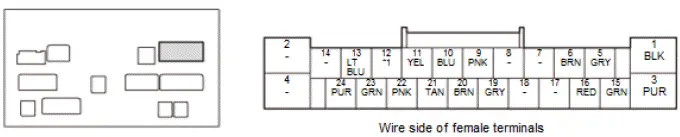

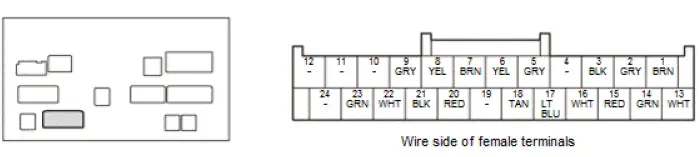

Audio-Navigation Unit Connector C (24P)

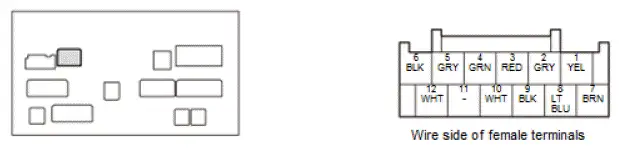

Audio-Navigation Unit Connector D (12P)
Audio-Navigation Unit Connector E (8P)
Audio-Navigation Unit Connector F (5P)
Audio-Navigation Unit Connector G (5P)
Audio-Navigation Unit Connector H (24P) (with rear entertainment)
Audio-Navigation Unit Connector J (28P)
Audio-Navigation Unit Connector K (5P)
Audio-Navigation Unit Connector L (2P)
Audio-Navigation Unit Connector M (2P) (with XM)

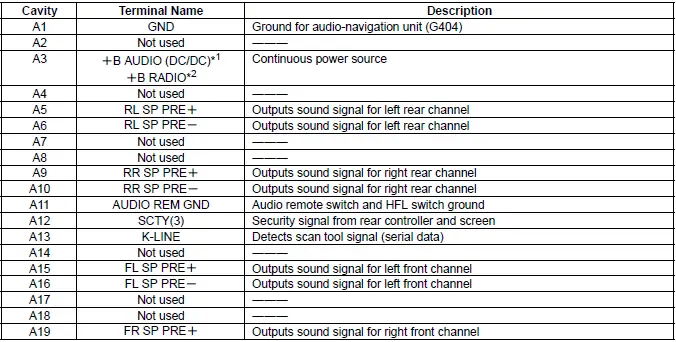

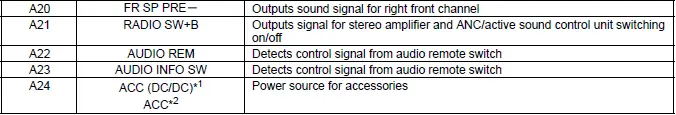

AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (with stereo amplifier)

*1: YEL (With auto idle stop system), PUM (Without auto idle stop system)

*1: With auto idle stop system
*2: Without auto idle stop system

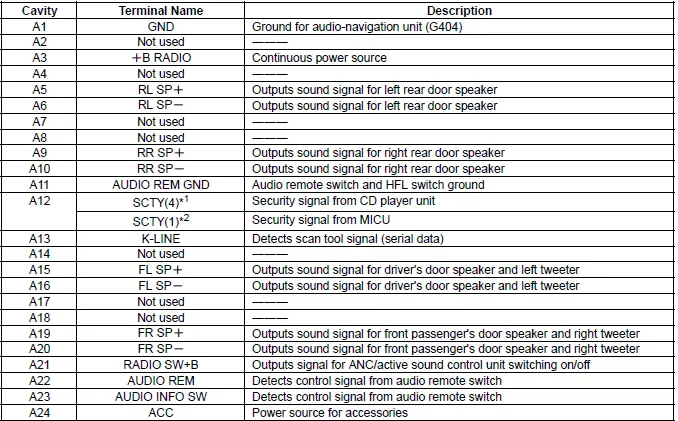

AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (without stereo amplifier)

*1: LT GRN (With CD player unit), BRN (Without CD player unit)

*1: With CD player unit
*2: Without CD player unit

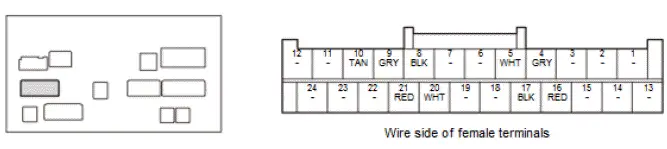

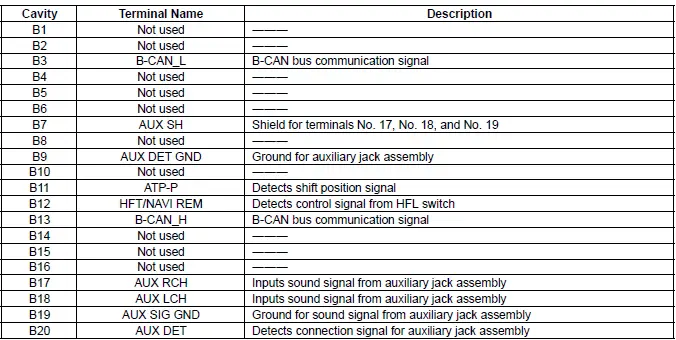

AUDIO-NAVIGATION UNIT CONNECTOR B (20P)

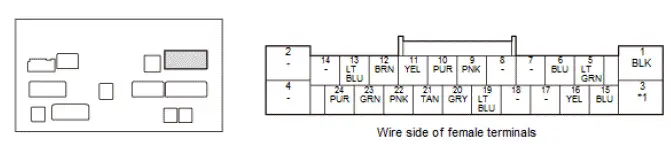

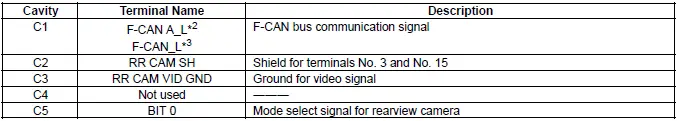

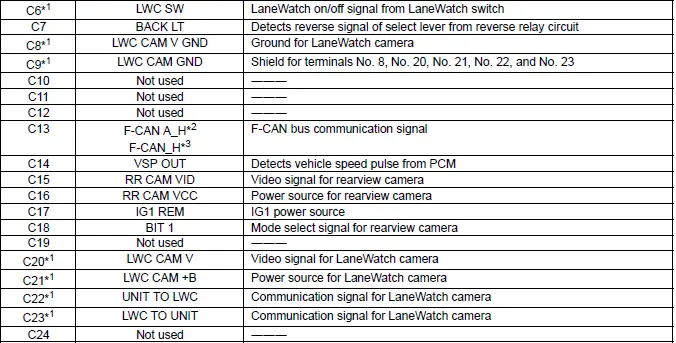

AUDIO-NAVIGATION UNIT CONNECTOR C (24P)

*1: With LaneWatch
*2: With auto idle stop system
*3: Without auto idle stop system

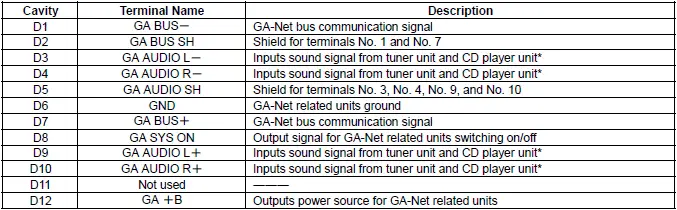

AUDIO-NAVIGATION UNIT CONNECTOR D (12P)

*: With CD player unit

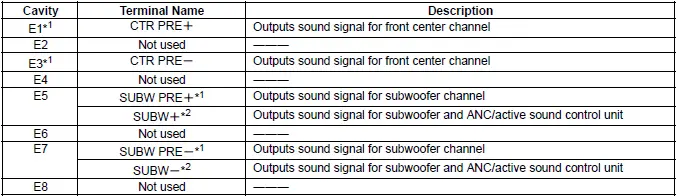

AUDIO-NAVIGATION UNIT CONNECTOR E (8P)

*1: GRN (With stereo amplifier), RED (Without stereo amplifier)

*1: With stereo amplifier
*2: Without stereo amplifier

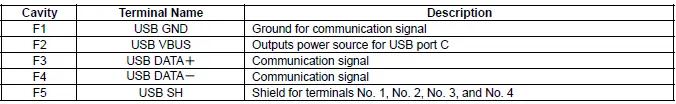

AUDIO-NAVIGATION UNIT CONNECTOR F (5P)

AUDIO-NAVIGATION UNIT CONNECTOR G (5P)

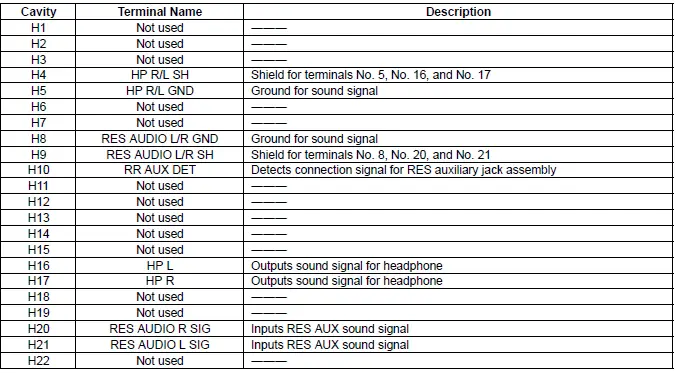

AUDIO-NAVIGATION UNIT CONNENTOR H (24P) (with rear entertainment)

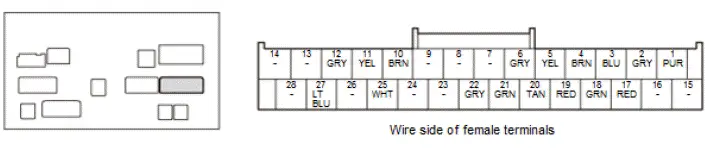

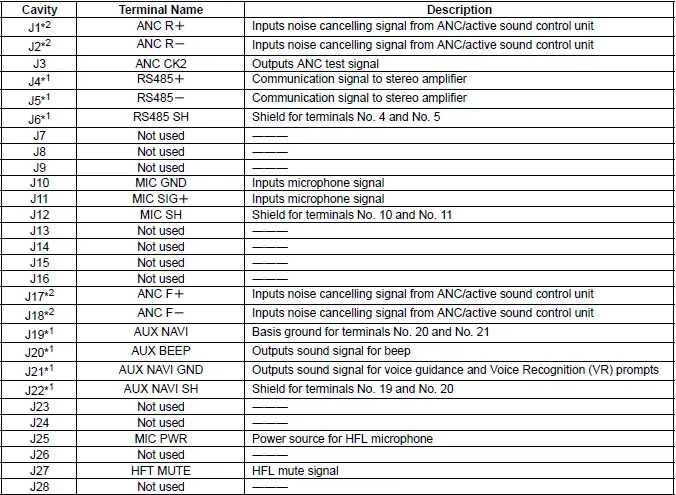

AUDIO-NAVIGATION UNIT CONNECTOR J (28P)

*1: With stereo amplifier
*2: Without stereo amplifier

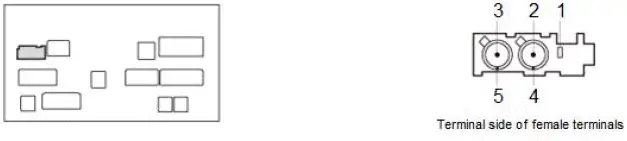

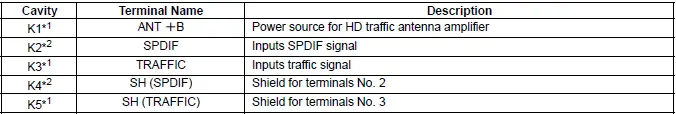

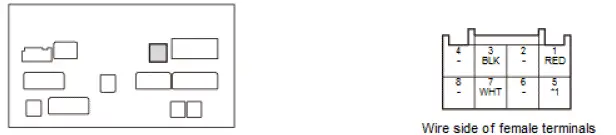

AUDIO-NAVIGATION UNIT CONNECTOR K (5P)

*1: With HD traffic antenna amplifier
*2: With rear entertainment

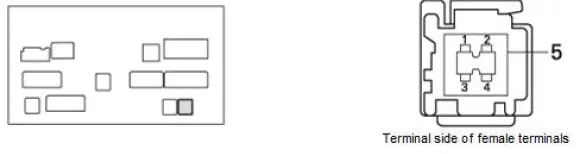

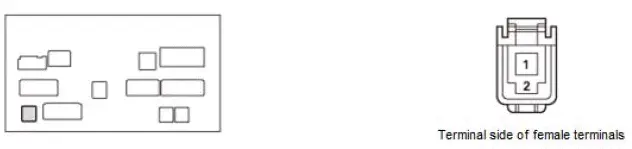

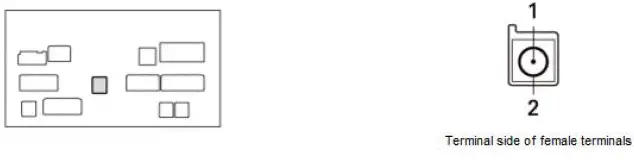

AUDIO-NAVIGATION UNIT CONNECTOR L (2P)

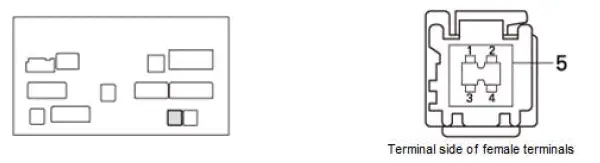

AUDIO-NAVIGATION UNIT CONNECTOR M (2P) (with XM)

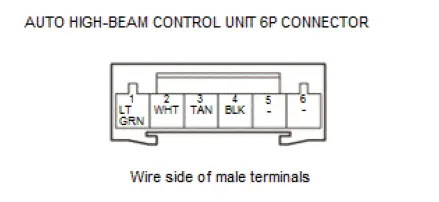

Auto High-Beam (High-Beam Support System) Control Unit Connector for Inputs and Outputs

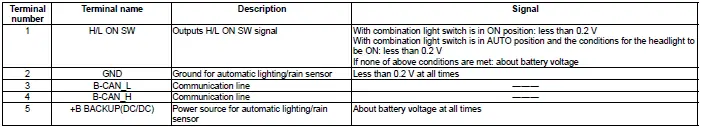

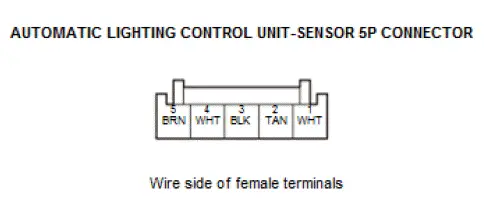

Automatic Lighting Control Unit-Sensor Connector for Inputs and Outputs

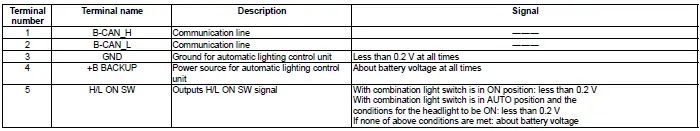

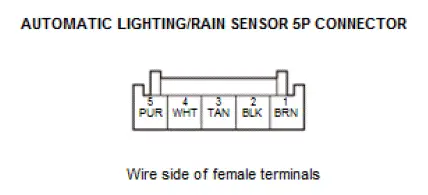

Automatic Lighting/Rain Sensor Connector for Inputs and Outputs

Auxiliary Jack Assembly Connector for Inputs and Outputs

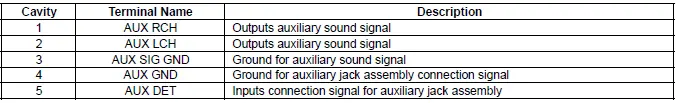

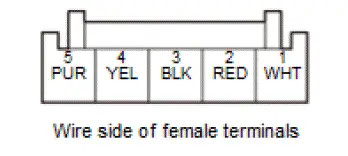

AUXILIARY JACK ASSEMBLY 5P CONNECTOR

Audio Unit Connector for Inputs and OutputsBD Player Unit Connector for Inputs and Outputs
