Honda Pilot: Auxiliary Jack Assembly Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Auxiliary Jack Assembly Removal and Installation
Removal/Installation
1. Center Console - Remove

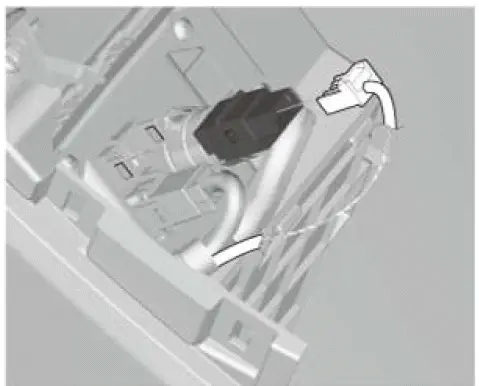

2. Auxiliary Jack Assembly - Remove
- Disconnect the connector, then remove the auxiliary jack assembly.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Back-Up Light Removal and Installation
Removal/Installation

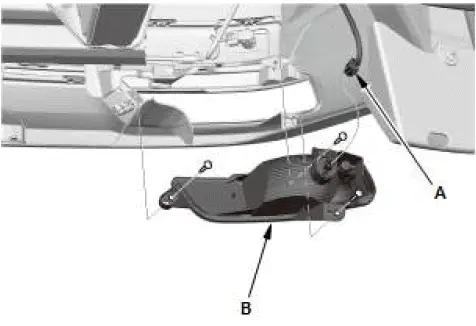

1. Back-Up Light - Remove
- Disconnect the connector (A).
- Remove the back-up light (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
