Honda Pilot: Beverage Holder Light Removal and Installation

Removal/Installation

Front Center Console

1. Center Console Panel - Remove

2. Front Beverage Holder Light - Remove

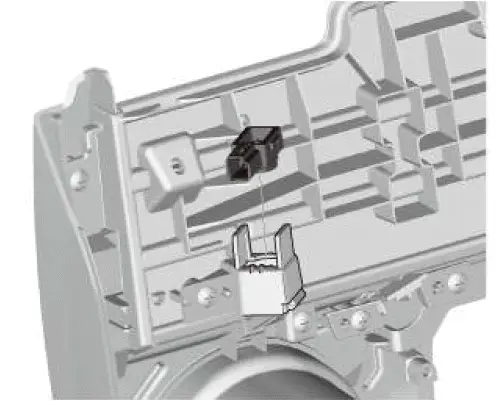

Front Beverage Holder Light : LED

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Rear Center Console

1. 2nd Row Center Console - Remove

2. Rear Beverage Holder Light - Remove

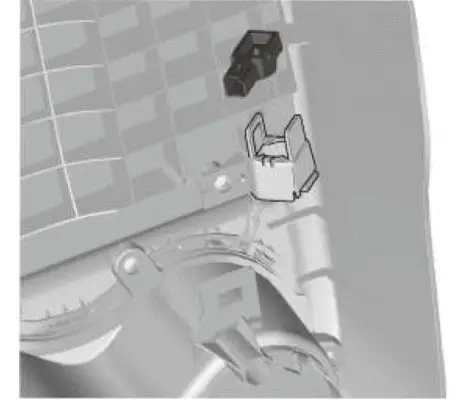

Rear Beverage Holder Light : LED

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Blower Motor Removal and Installation

Removal/Installation

1. Glove Box - Remove

2. Passenger's Heater Duct B - Remove

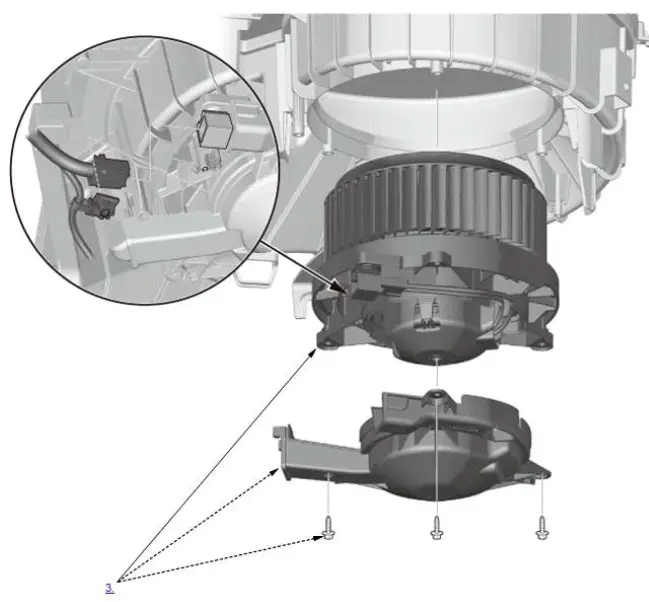

3. Front Blower Motor - Remove

Blower Power Transistor Removal and Installation

Removal/Installation

1. Glove Box - Remove

2. Passenger's Heater Duct B - Remove

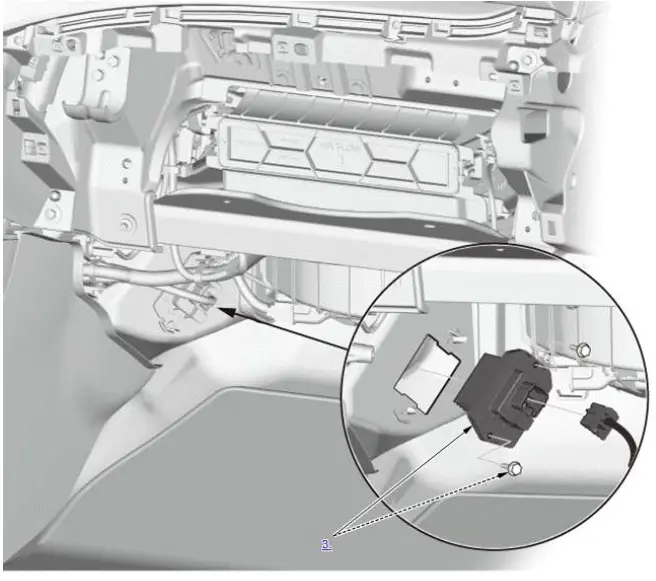

3. Front Blower Power Transistor - Remove

4. All Removed Parts - Install
