Honda Pilot: Brake Pedal Position Switch Test

Test

1. Brake Pedal Position Switch - Test

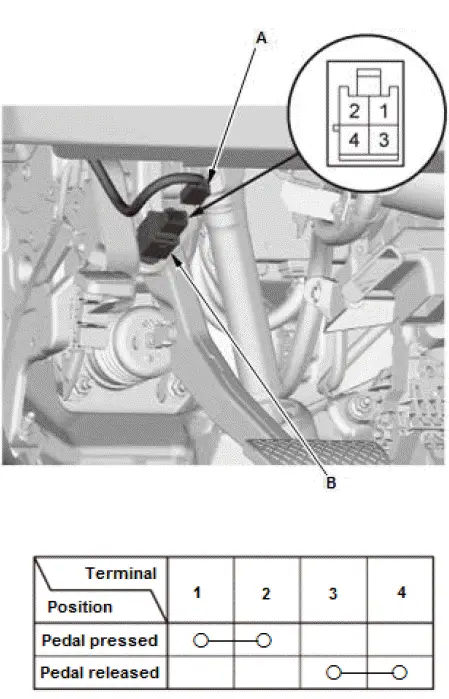

1. Disconnect the connector (A).
2. Check for continuity between the terminals in each switch position according to the table.
3. If the test results are not as specified, adjust the brake pedal position switch (B), then recheck. If the results are still not as specified, replace the brake pedal position switch.

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
