Honda Pilot: Camshaft Timing Inspection

Inspection

1. Camshaft Timing - Inspect

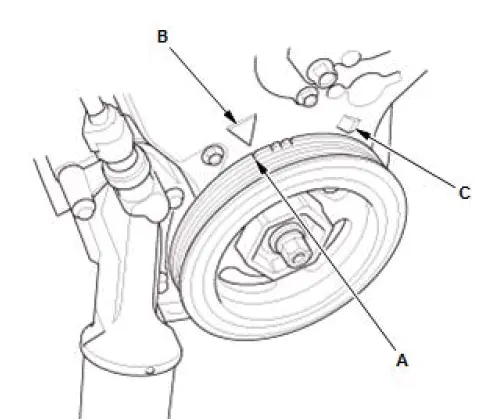

1. Turn the crankshaft so its white mark (A) on the crankshaft pulley lines up with the pointer (B).

   NOTE: The other pointer (C) is not used.

FRONT

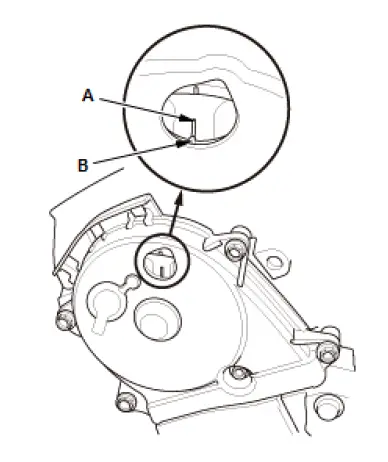

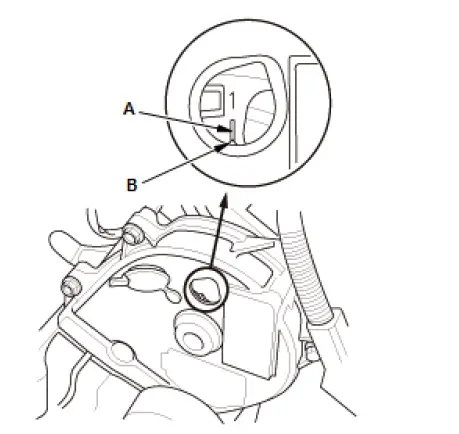

2. Check that the No. 1 piston top dead center (TDC) mark (A) on the front camshaft pulley and the pointer (B) on the front upper covers are aligned.

REAR

NOTE:

• If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark.
• If the marks still do not align, remove the timing belt and reinstall the timing belt properly.
