Honda Pilot: Center Console Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Center Console Removal and Installation
Removal/Installation

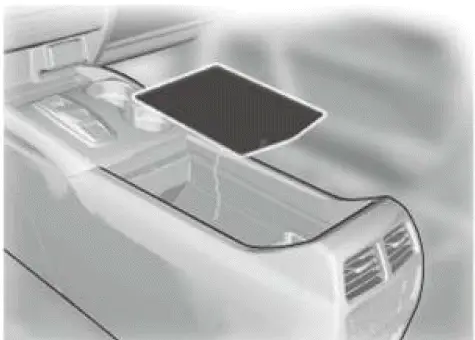

1. Console Rubber Mat - Remove
2. Both Center Console Side Covers - Remove
3. Center Console Panel - Remove
4. Center Console Rear Trim - Remove
5. Center Console - Remove

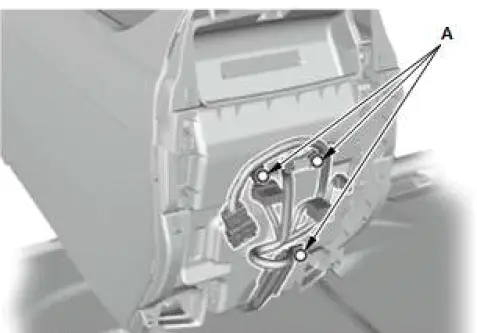

- Remove the harness clips (A). (for some models)

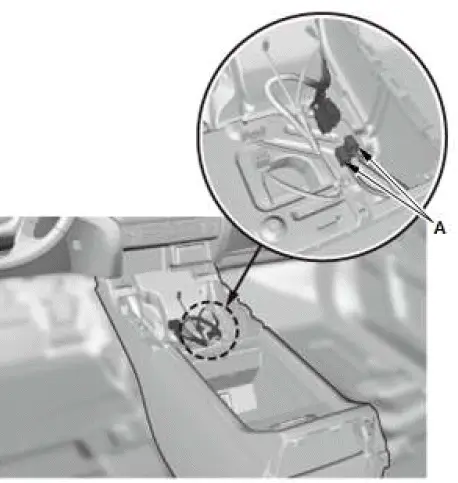

- Disconnect the connectors (A). (for some models)

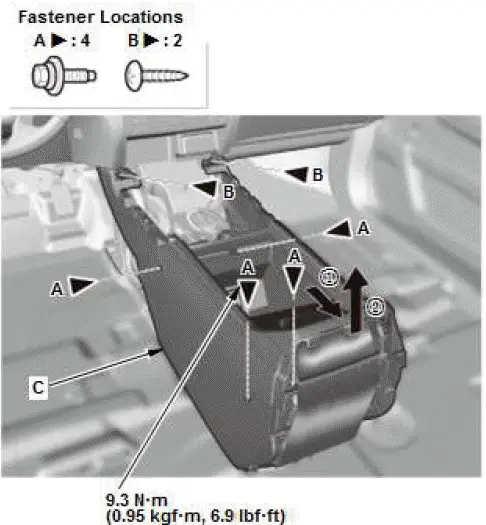

- Remove the bolts (A) and screws (B).
- Remove the center console (C).
6. All Removed Parts - Install
- Install the parts in the reverse order of removal.
