Honda Pilot: Center Console Shutter Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Center Console Shutter Removal and Installation

Removal/Installation

9-Speed A/T

1. Center Console Panel - Remove

2. Center Console Upper Panel - Remove

3. Center Console Shutter - Remove

Honda Pilot. Remove, Install, Replace, Check info

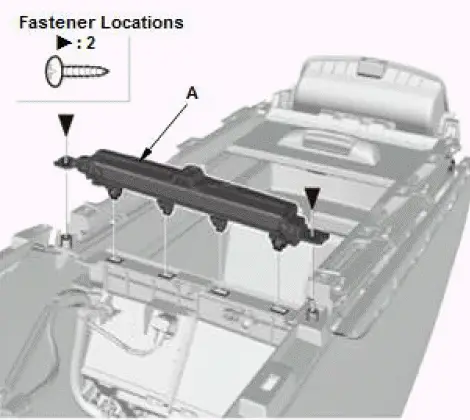

  1. Remove the center console shutter trim (A).

Honda Pilot. Remove, Install, Replace, Check info

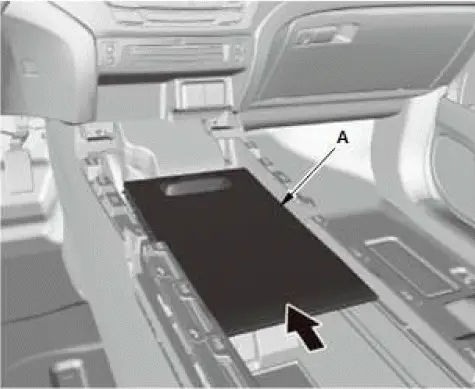

  1. Remove the center console shutter (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

6-Speed A/T

1. Center Console - Remove

2. Center Console Upper Panel - Remove

3. Center Console Shutter - Remove

Honda Pilot. Remove, Install, Replace, Check info

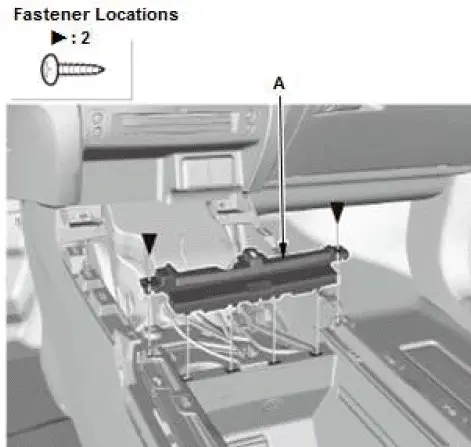

  1. Remove the center console shutter trim (A).

Honda Pilot. Remove, Install, Replace, Check info

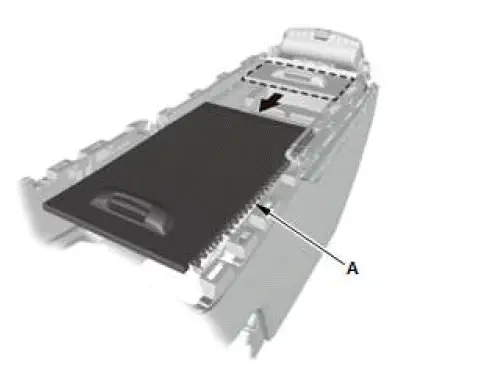

  1. Remove the center console shutter (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
