Honda Pilot: Center Console Side Panel Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Center Console Side Panel Removal and Installation
Removal/Installation
1. Center Console - Remove
2. Center Console Upper Panel - Remove
3. Center Console Side Panel - Remove

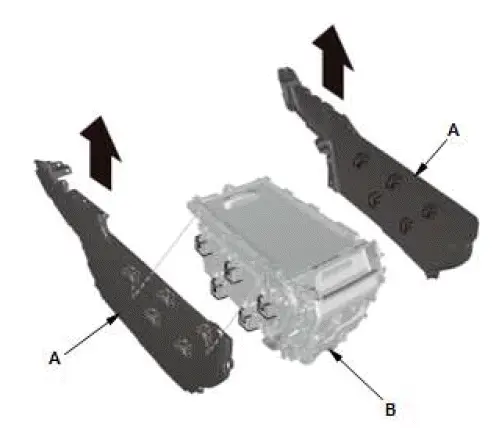

- Remove the center console side panels (A) from the console box (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Center Console Upper Panel Removal and Installation
Removal/Installation
1. Center Console Panel - Remove
2. Center Console Rear Trim - Remove

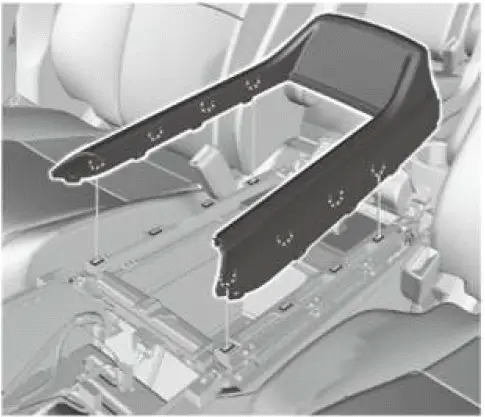

3. Center Console Upper Panel - Remove
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Center Crossmember Removal and Installation
Removal/Installation

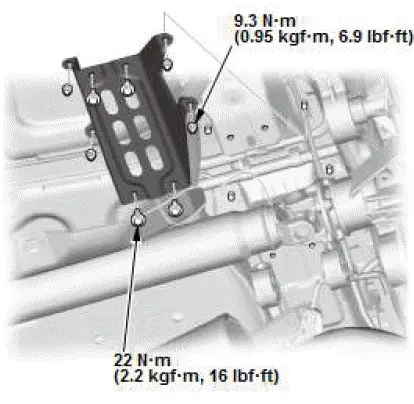

1. Center Crossmember - Remove
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
